• Powerful and Resilient: Capable of 1000 - 2000 Watts RMS with peaks up to 8000 Watts, ready for intense audio challenges
• Superior Cooling Capabilities: Incorporates Free Flow motor cooling to maintain optimal temperatures under heavy use
• Rich and Deep Bass: Delivers impactful bass with EROM and V-ROM surrounds, ideal for bass enthusiasts
• Robust Build Quality: Features a cast aluminum frame and durable voice coil, ensuring a lasting subwoofer experience
• Versatile Enclosure Compatibility: Perfect for 1.75 - 2.75 CuFt ported enclosures, offering flexibility in installation

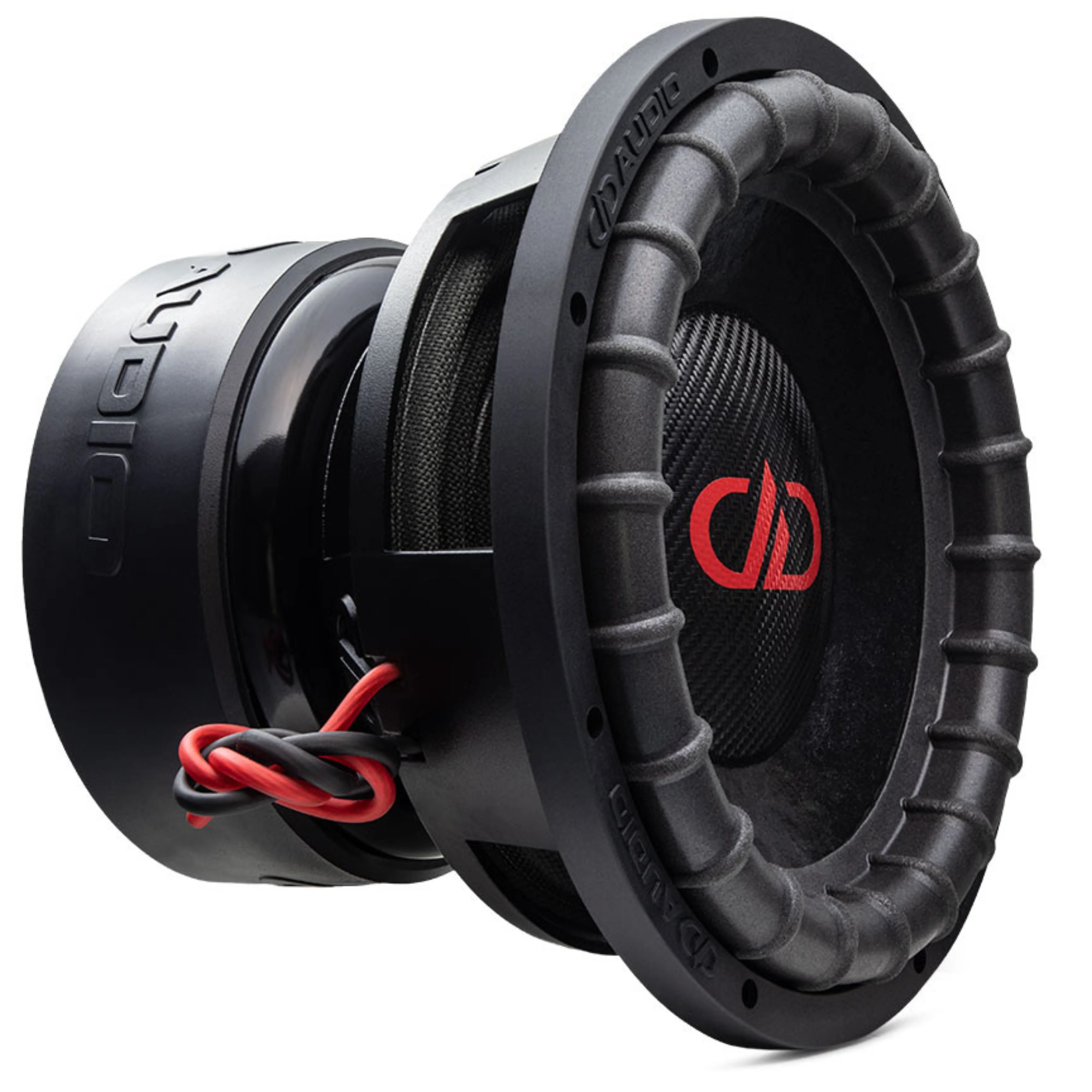

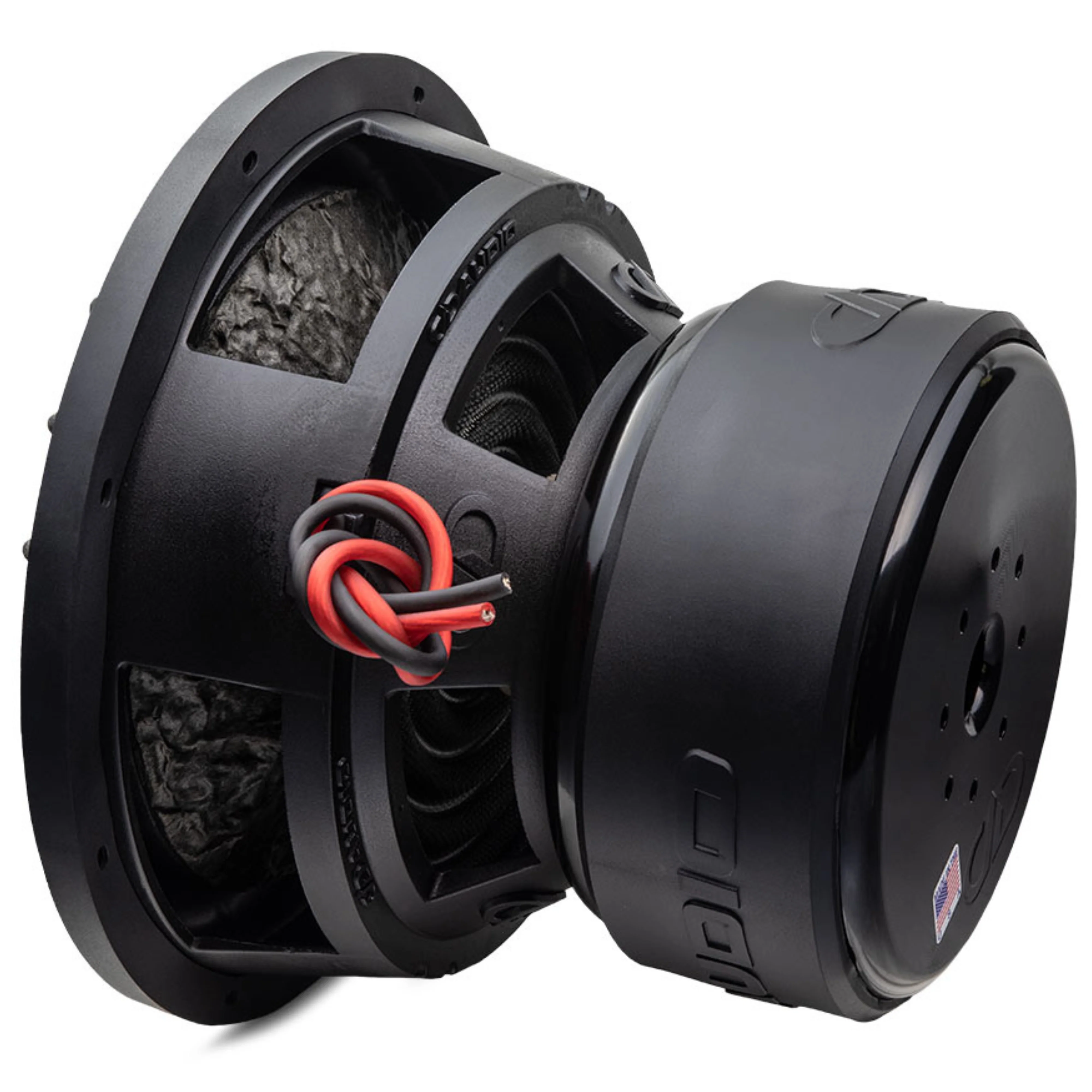

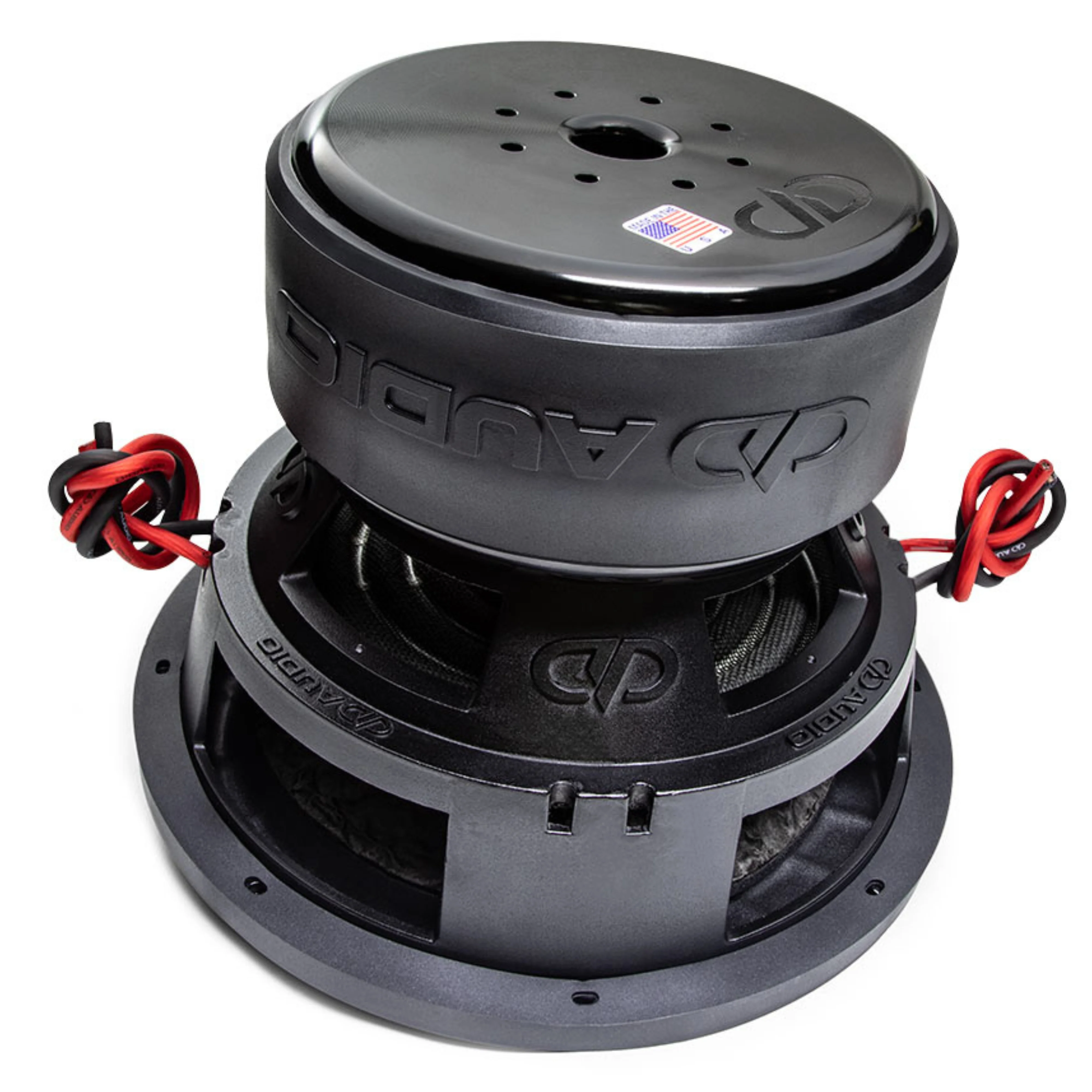

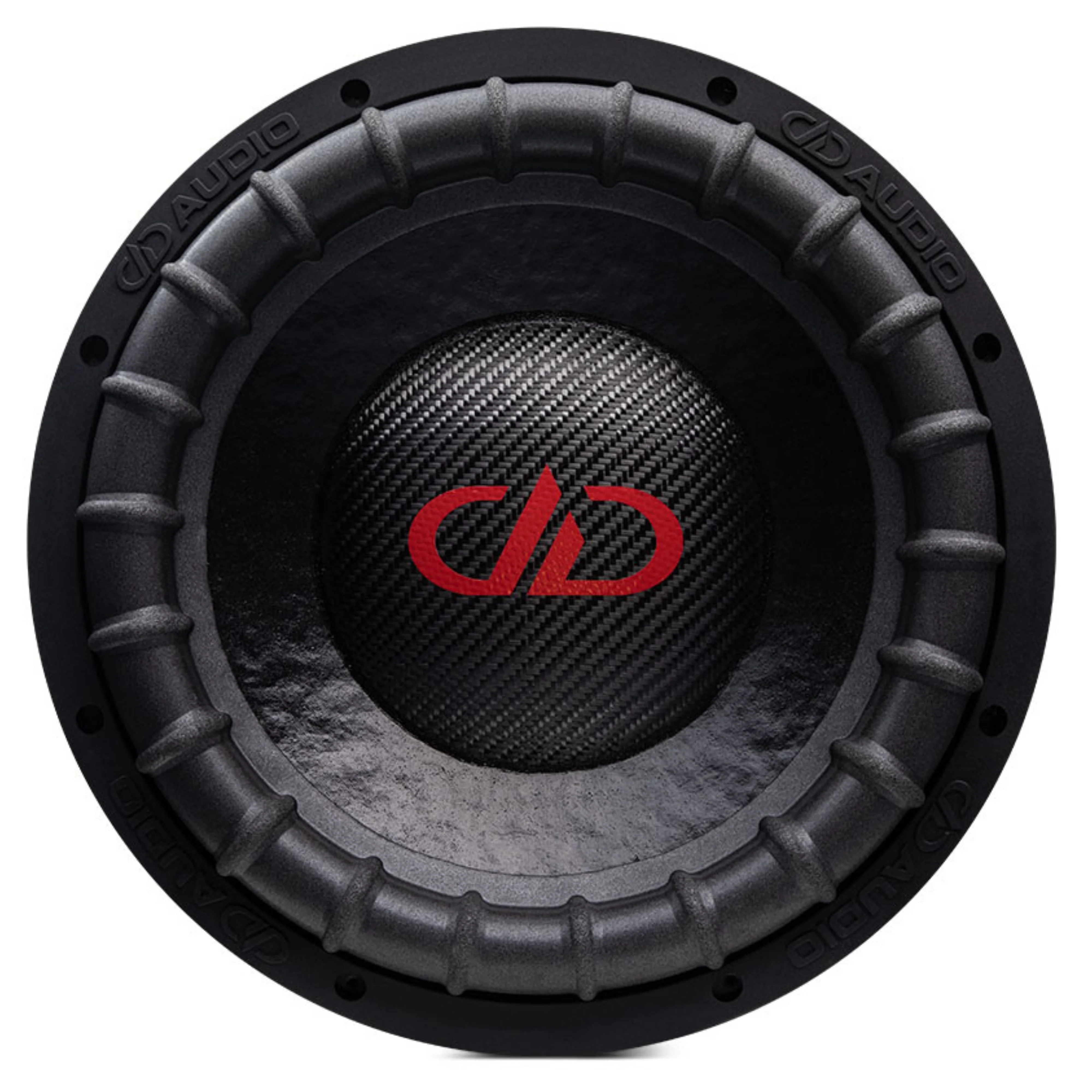

DD Audio 12" Dual 2 Ohm 8000W Peak/2000W RMS Power Tuned Subwoofer 9512k (ESP)

This Listing Includes:

• (1) DD Audio 9510k (ESP) 10 Inch Power Tuned Subwoofer

The 9510k (ESP) from DD Audio is part of the esteemed 9500 series, a line renowned for being at the heart of some of the world’s loudest systems. This 10-inch subwoofer is not just about loudness but also about handling extreme power efficiently. Capable of managing a continuous power range of 1000-2000 watts and bursts up to 8000 watts, it stands as a testament to DD Audio's commitment to powerful and resilient design. The 9510k is laden with top-tier features like EROM and V-ROM surrounds, Free Flow motor cooling, double slit formers, eight-layer aluminum voice coils, 28mm magnetic gaps, cast aluminum frames, rigid non-pressed cones, and a multi-layer spider system, making it a powerhouse in the realm of high-performance subwoofers.

Specifications:

• Speaker Size: 10 Inches


• RMS Power: 1000 - 2000 Watts


• Peak Power: 8000 Watts


• Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3.35 Inches


• Piston Diameter: 9.25 Inches


• Fs: 37.68 Hz


• Qms: 7.430


• Qes: 0.457


• Qts: 0.431


• Vas: 18.943 Liters


• Xmech: 46 MM


• Xmax: 22 MM


• Frame Outer Diameter: 11 7/16 Inches


• Frame OD w/Gasket: 11 9/16 Inches


• Mounting Diameter: 10 3/16 Inches


• Mounting Depth: 8 13/16 Inches


• Motor Diameter: 9 5/16 Inches


• Motor Depth: 4 5/8 Inches


• Woofer Displacement: 0.24 CuFt


• Recommended Ported Enclosure: 1.25 - 1.5 CuFt

Features:

• EROM and V-ROM surrounds for superior sound precision.


• Free Flow motor cooling and double slit formers for enhanced durability.


• Eight-layer aluminum voice coils for robust power handling.


• 28mm magnetic gaps and rigid non-pressed cones for high-quality audio output.


• Cast aluminum frames and a multi-layer spider system for maximum strength and efficiency.
