• Advanced Performance: Delivers deep, powerful bass with a 12-inch design
• High Power Handling: Ranges from 600 to 1200 Watts RMS and peaks at 3600 Watts
• Durable Build: Features a robust DD cast basket and heavy-duty suspension
• Efficient Cooling System: Includes a high-temp voice coil and innovative cooling enhancements
• Ideal for Vented Enclosures: Optimally designed for vented and multi-order setups

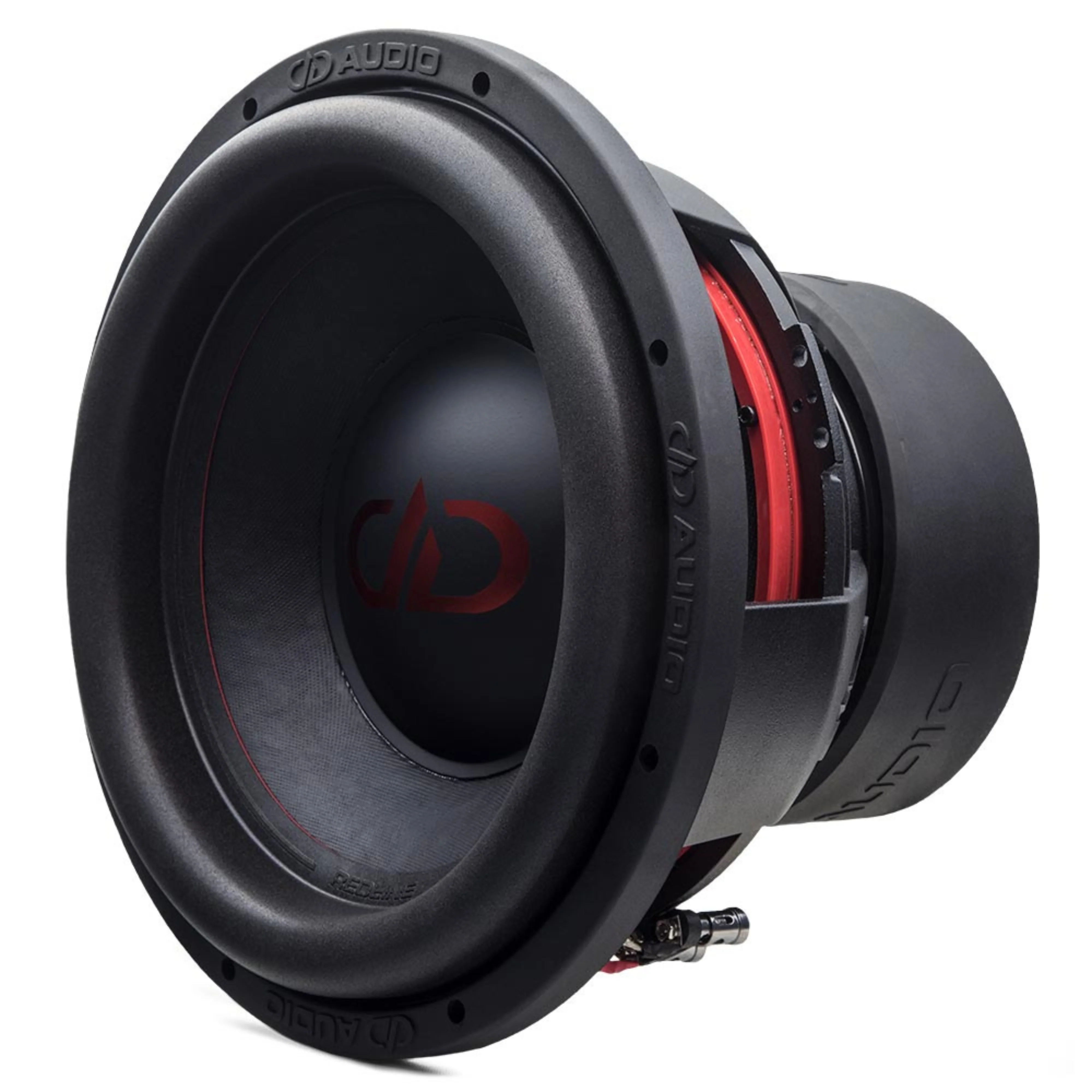

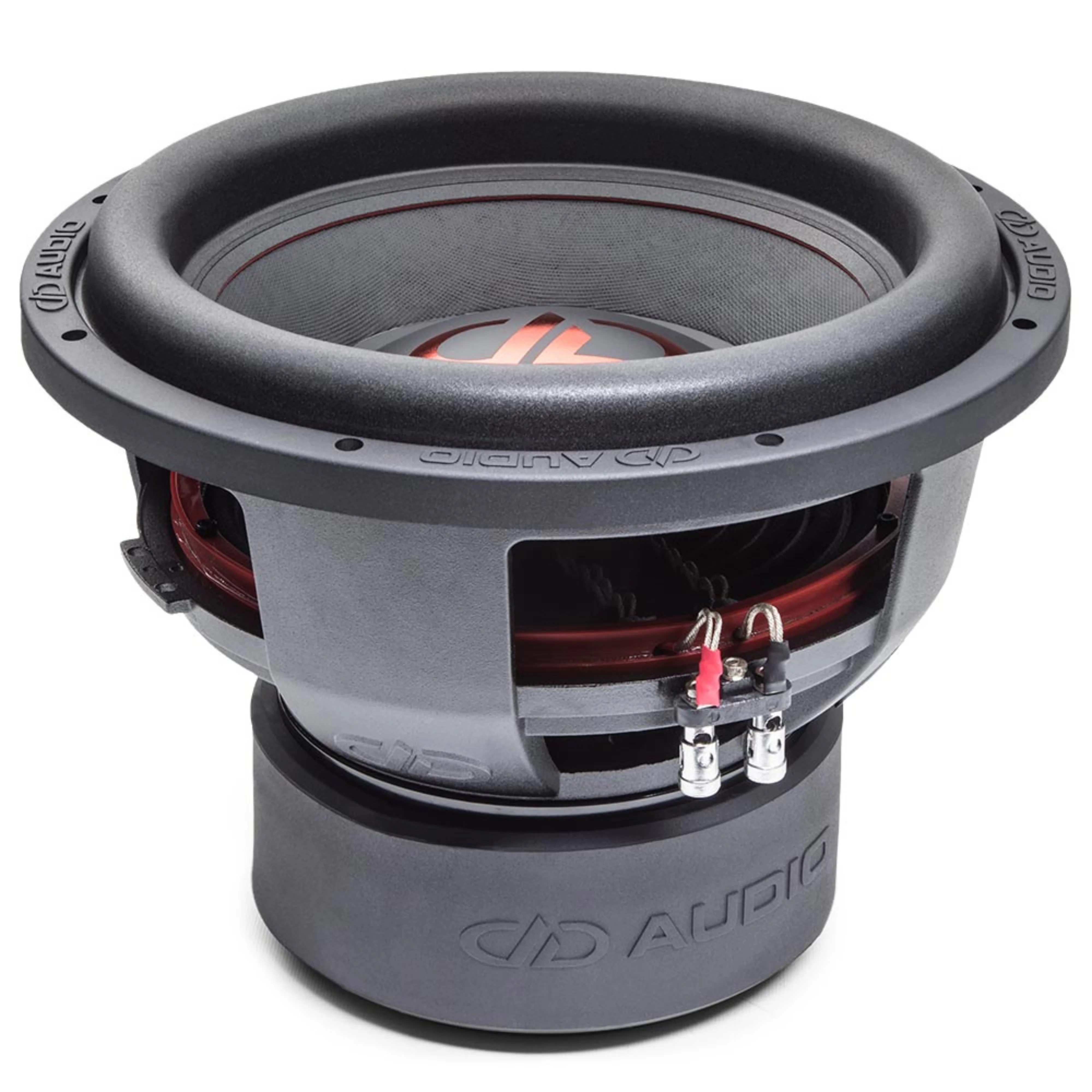

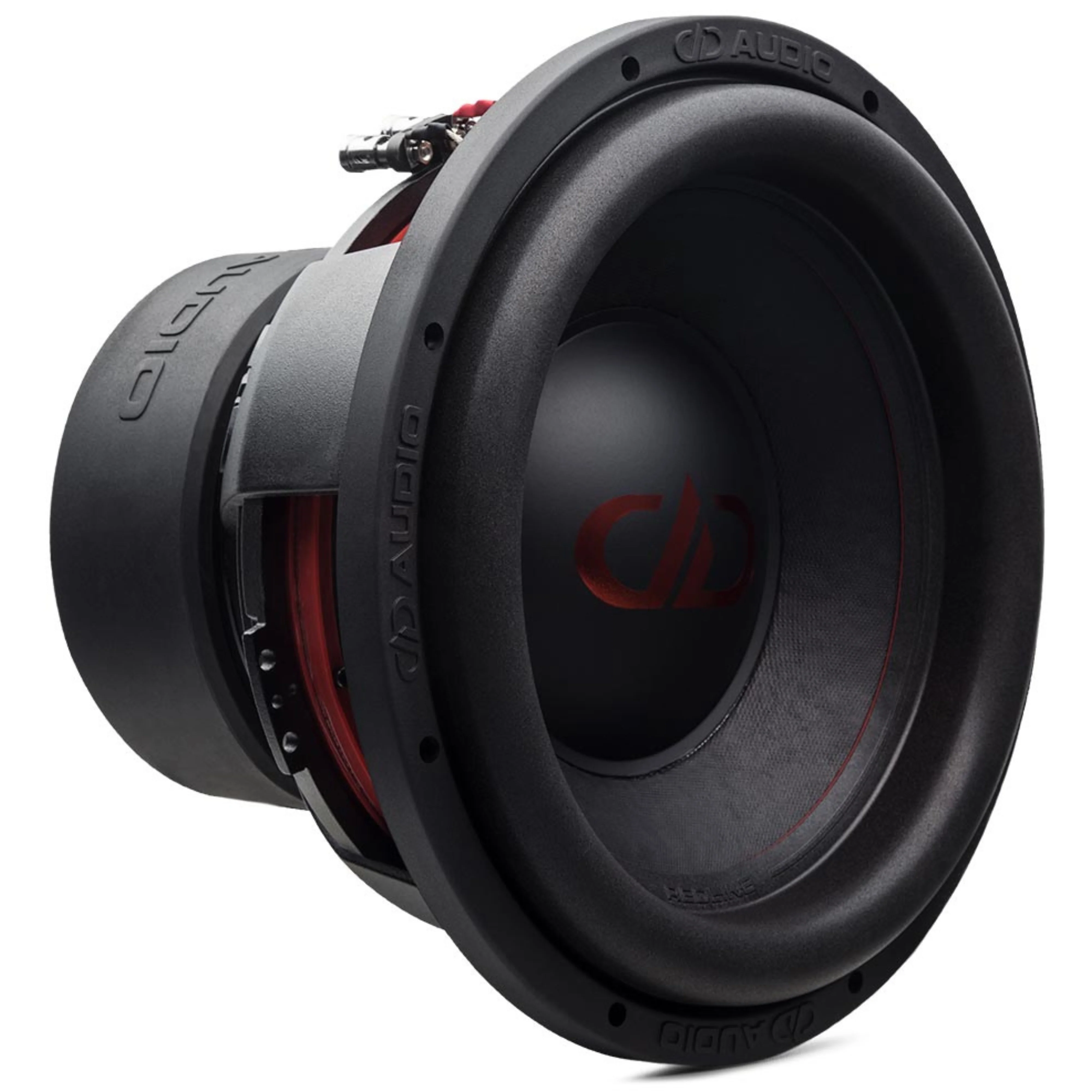

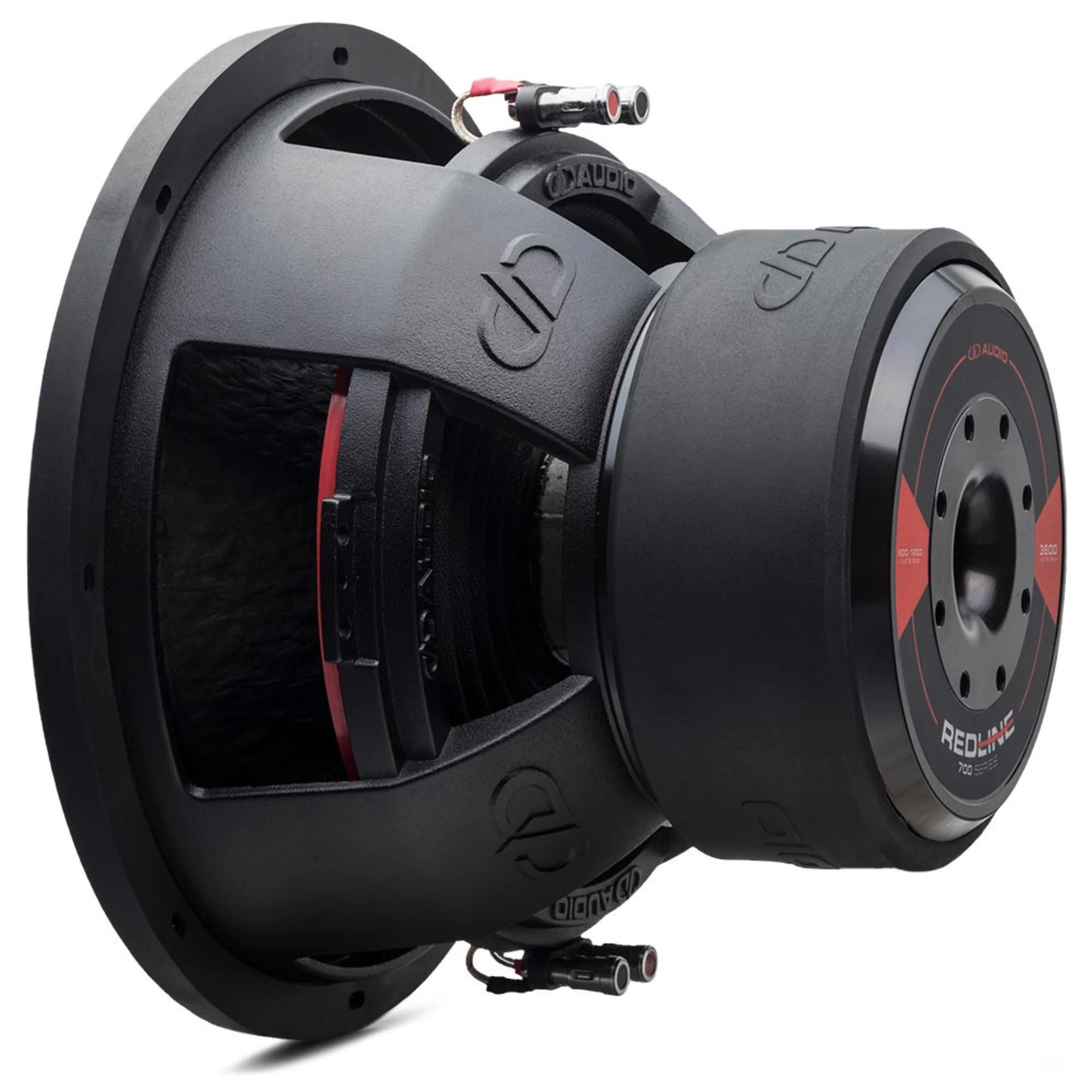

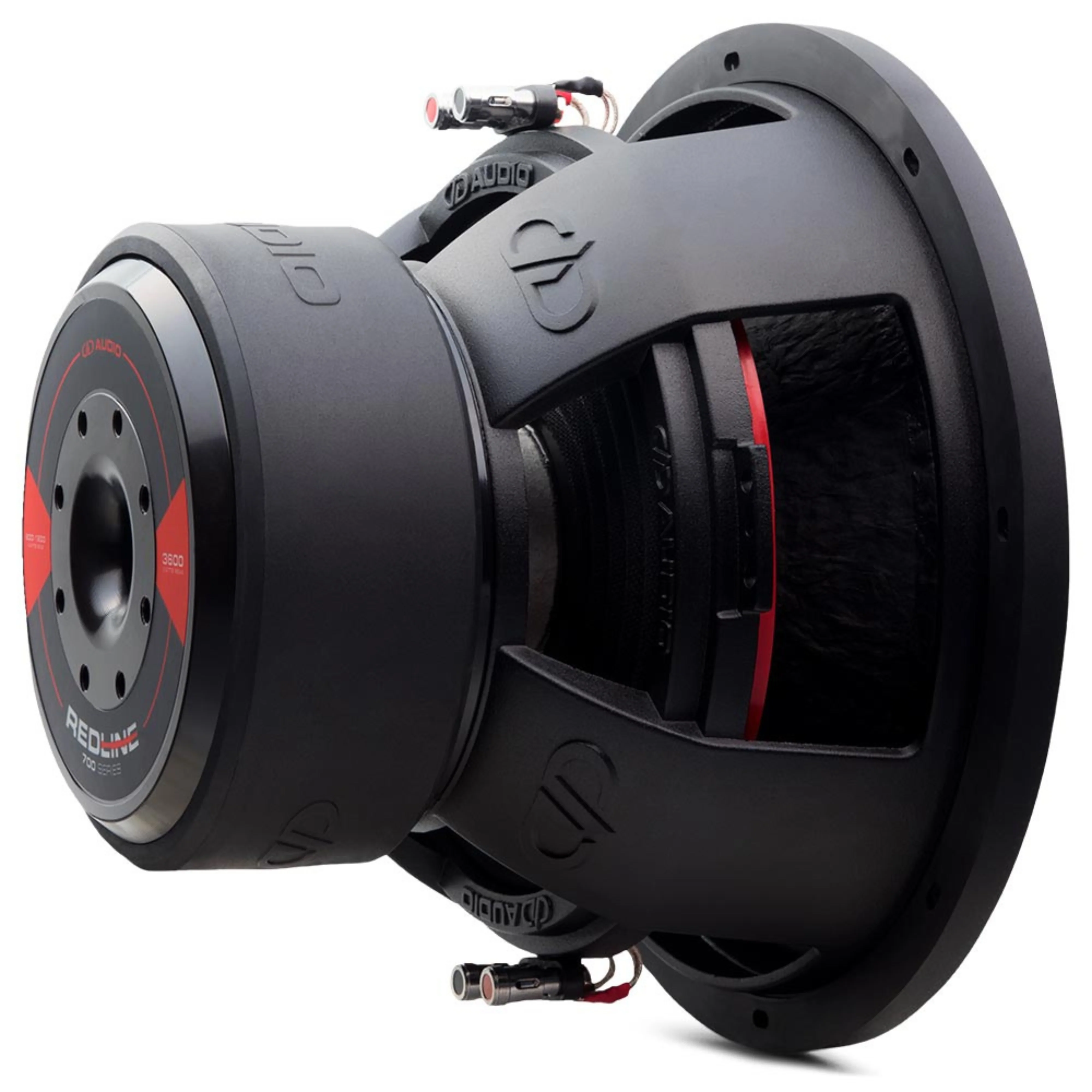

DD Audio 12" Dual 2 Ohm 3600W Peak/1200W RMS Power Tuned Subwoofer 712d-D2

This Listing Includes:

• (1) DD Audio 712d 12 Inch Power Tuned Subwoofer

The 712d is a standout model in DD Audio's 700 series, crafted for serious performance. It combines a DD cast basket with a triple stack magnet motor, heavy-duty suspension, and a high-strength cone coupled to a massive EROM surround. These features make it particularly well-suited for vented or multi-order enclosures. The 712d is designed to meet the demands of hardcore bassheads, offering exceptional power handling and the ability to play loud and long.

Specifications:

• Speaker Size: 12 Inches


• RMS Power: 600 - 1200 Watts


• Peak Power: 3600 Watts


• Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3 Inches


• Piston Diameter: 10.25 Inches


• Fs: 28.26 Hz


• Qms: 4.344


• Qes: 0.482


• Qts: 0.434


• Vas: 39.64 Liters


• Xmech: 80 MM


• Xmax: 14 MM


• Frame Outer Diameter: 12 5/8 Inches


• Frame OD w/Gasket: 12 7/8 Inches


• Mounting Diameter: 11 3/8 Inches


• Mounting Depth: 8 9/16 Inches


• Motor Diameter: 7 3/4 Inches


• Motor Depth: 3 1/2 Inches


• Woofer Displacement: 0.17 CuFt


• Recommended Ported Enclosure: 1.75 - 2.75 CuFt


• Shipping Weight: 38 Lbs

Features:

• EROM surround for enhanced sound precision.


• High-temperature 3-inch voice coil for superior power handling.


• Triple-layer deep bass, high excursion spider system for robust bass response.


• Unique cone design made from glass fiber and natural pulp for optimal sound quality.


• Back plate coil gap venting and extended pole piece for efficient heat management.


• Sturdy DD cast basket for longevity.
