• Advanced Thermal Management: Superior cooling for sustained high performance
• High Power Capacity: 1500 Watts RMS and 4500 Watts peak power
• Enhanced Acoustic Design: Taller surrounds and specialized cone for deeper bass
• Robust Construction: Durable components for high-intensity use
• Stylish and Functional: Polished aluminum finishes and embossed motor design

DD Audio 15" Dual 2 Ohm 4500W Peak/1500W RMS Power Tuned Subwoofer 715f-D2

This Listing Includes:

• (1) DD Audio 715f 15 Inch Power Tuned Subwoofer

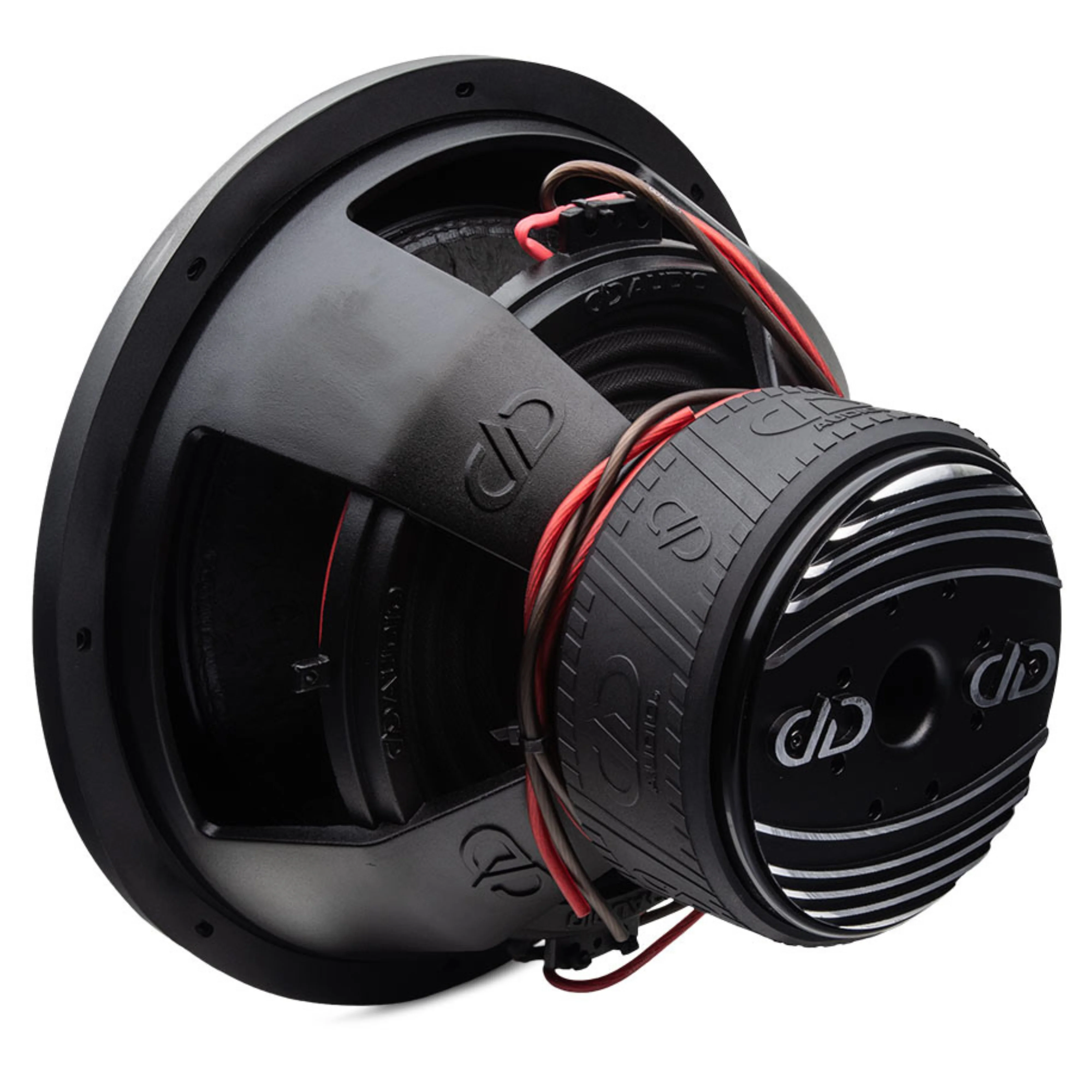

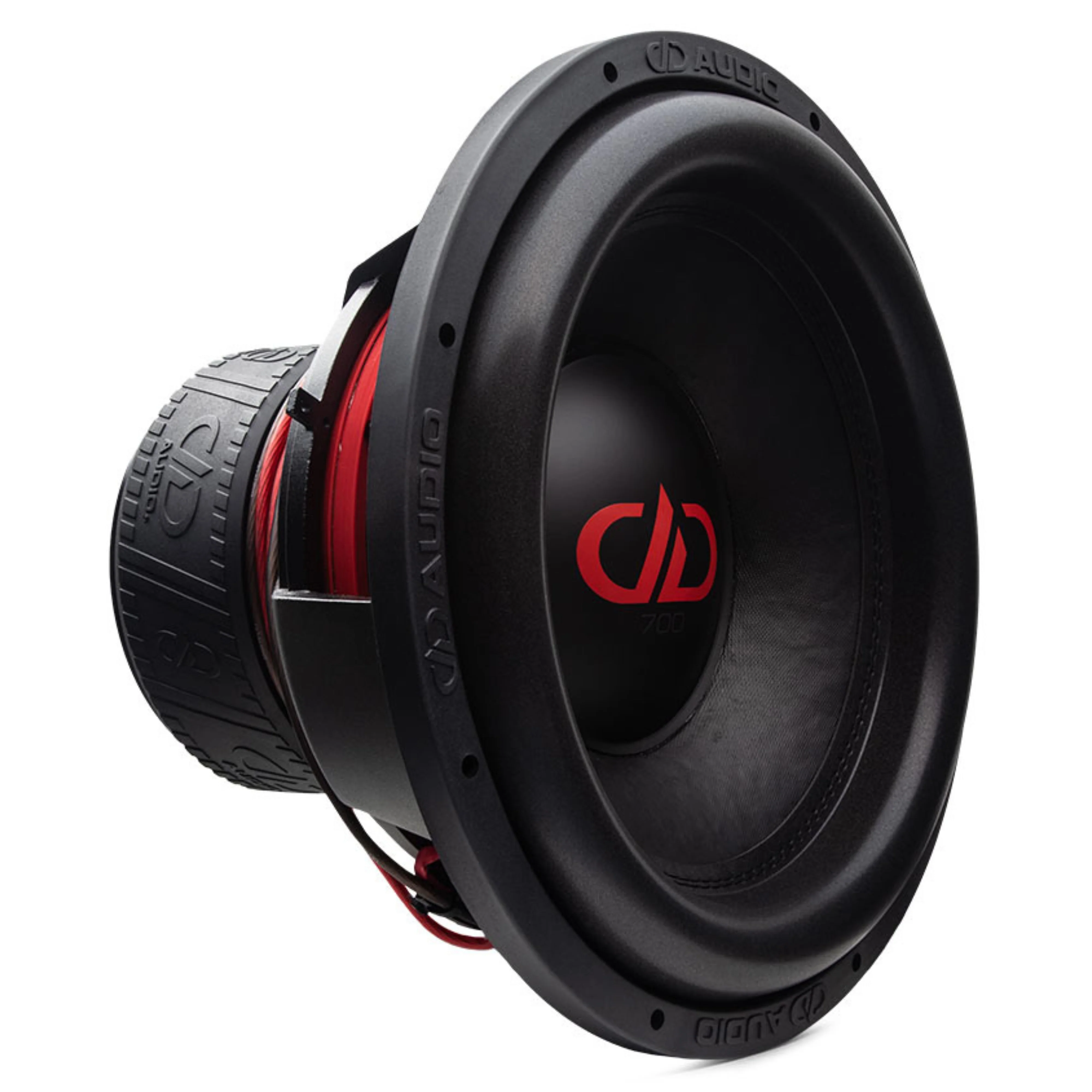

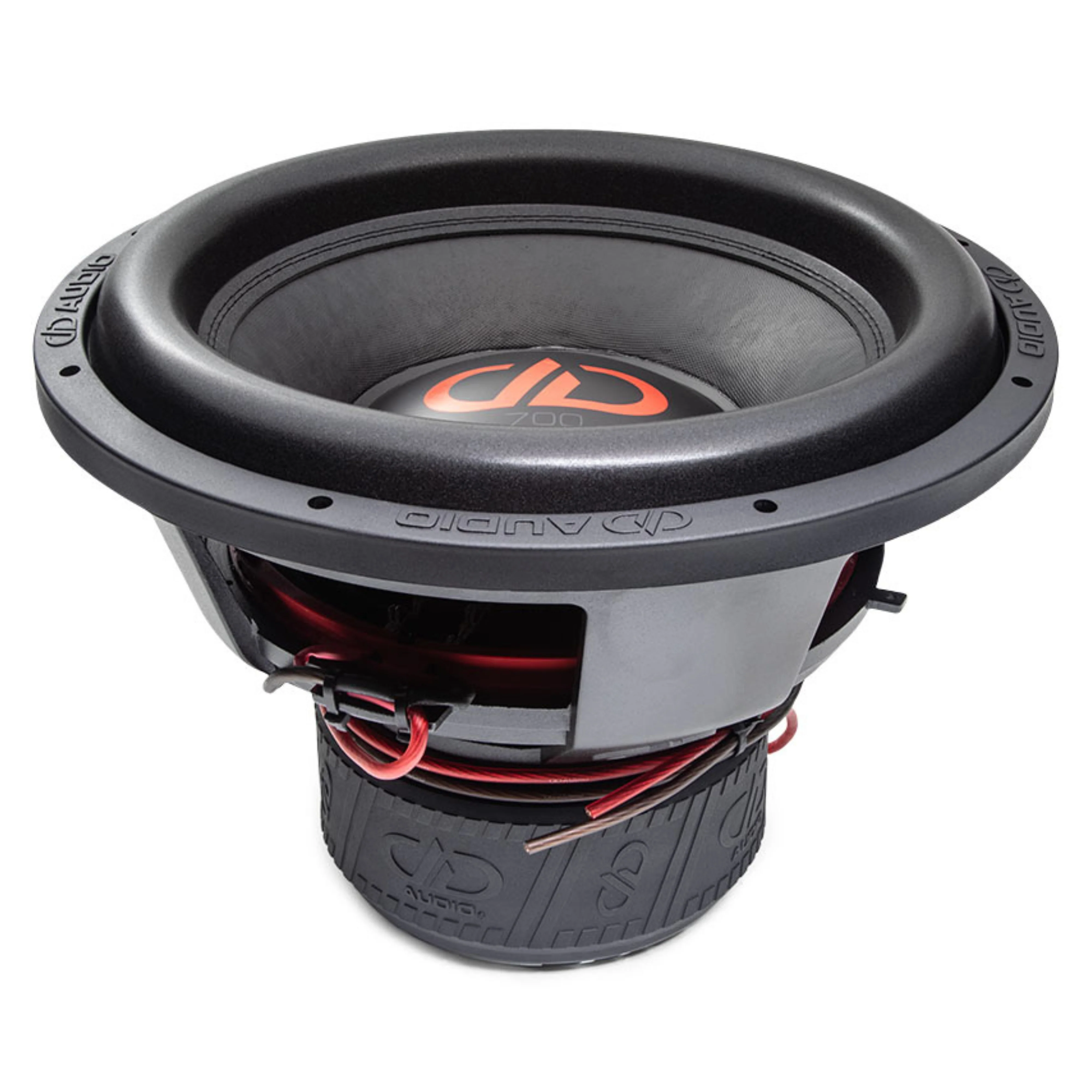

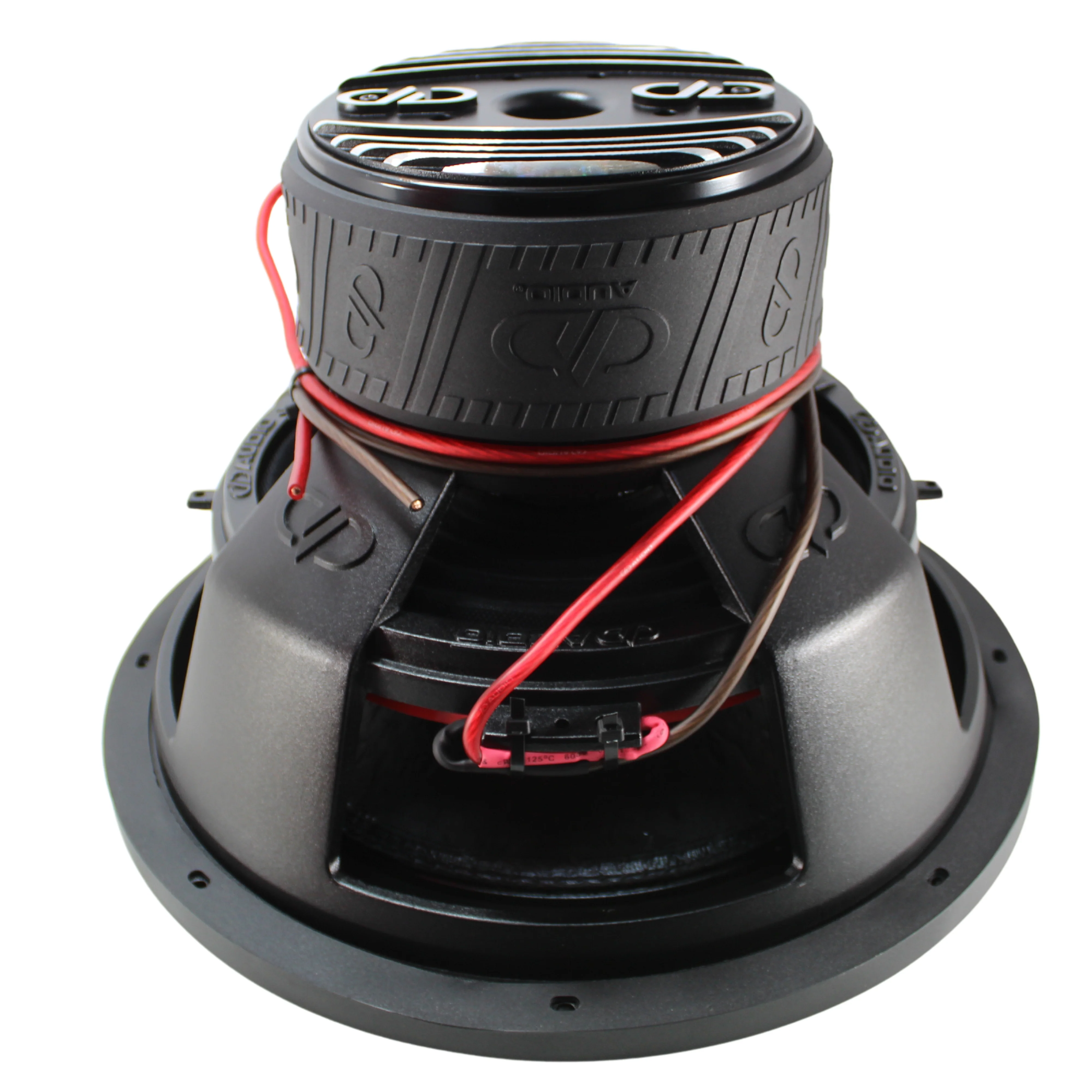

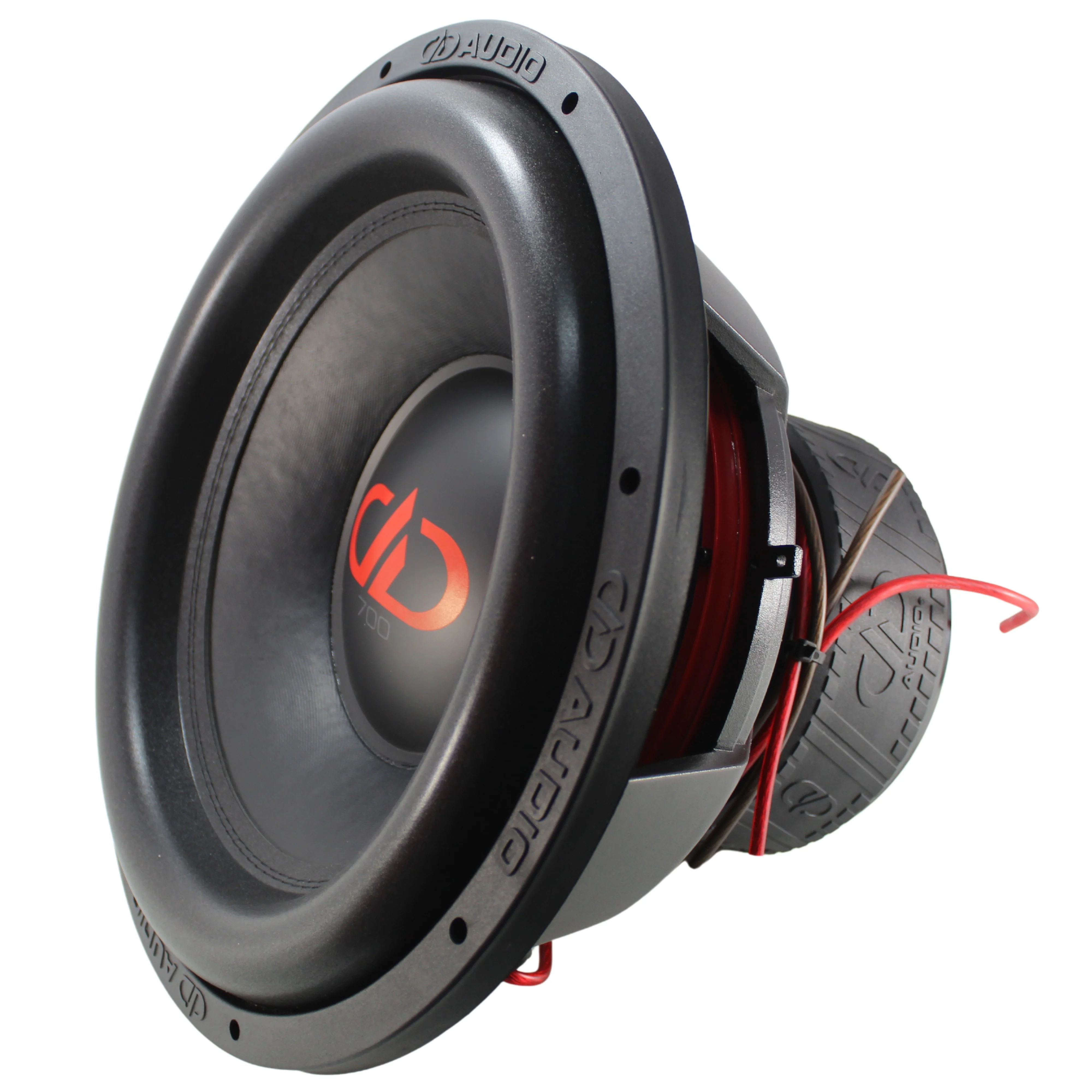

The 715f represents the pinnacle of the 700 Series from DD Audio, embodying the latest "f" revision. This model is a testament to serious performance, showcasing significant enhancements in thermal cooling and cutting-edge design. The 715f is equipped with a vented aluminum voice coil insert and a vented, finned aluminum heatsink, crucial for managing the intense heat generated during operation. It's designed for extended periods of loud, continuous play, with a focus on converting raw power to clean sound efficiently. The subwoofer features a taller surround, double-stitched to a fiberglass-loaded, non-pressed cone, and a voice coil with increased winding length, leading to greater excursion and sophisticated styling. The heat sink, adorned with polished aluminum DD logos, and a motor wrapped in a newly designed rubber boot, further enhance its performance and aesthetic appeal.

Specifications:

• Speaker Size: 15 Inches


• RMS Power: 1500 Watts


• Peak Power: 4500 Watts


• Impedance: Dual 2 Ohm


• Voice Coil Diameter: 3 Inches


• Piston Diameter: 12.75 Inches


• Fs: 30.25 Hz


• Qms: 7.353


• Qes: 0.6854


• Qts: 0.6269


• Vas: 62.47 Liters


• Xmech: 100 MM


• Xmax: 22 MM


• Frame Outer Diameter: 15.375 Inches


• Frame OD w/Gasket: 15.563 Inches


• Mounting Diameter: 13.875 Inches


• Mounting Depth: 9.375 Inches


• Motor Diameter: 7.562 Inches


• Motor Depth: 4 Inches


• Woofer Displacement: 0.22 CuFt


• Recommended Ported Enclosure: 3.0 - 6.0 CuFt

Features:

• Vented aluminum voice coil insert and heatsink for advanced cooling.


• Taller surround with double stitching and fiberglass-loaded cone for increased Xmax.


• Elegant design with polished aluminum DD logos and a new embossed motor rubber boot.


• Increased winding length voice coil and double layer spider for enhanced performance.


• Designed for extended, loud, and continuous play.
