• Shallow Mounting Depths
• 2.5″ high temperature voice coil
• 72oz magnet, back plate coil gap venting
• EROM surround

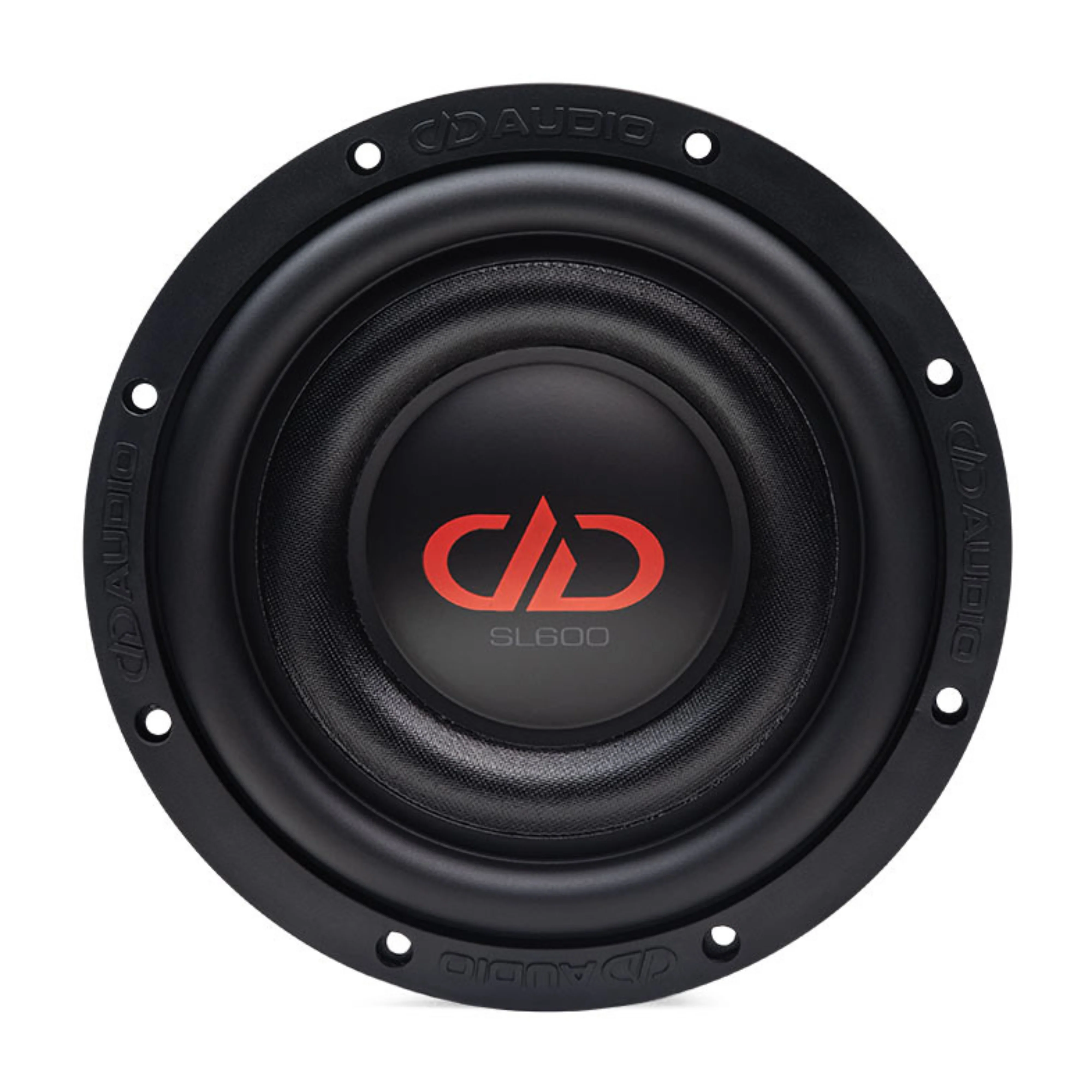

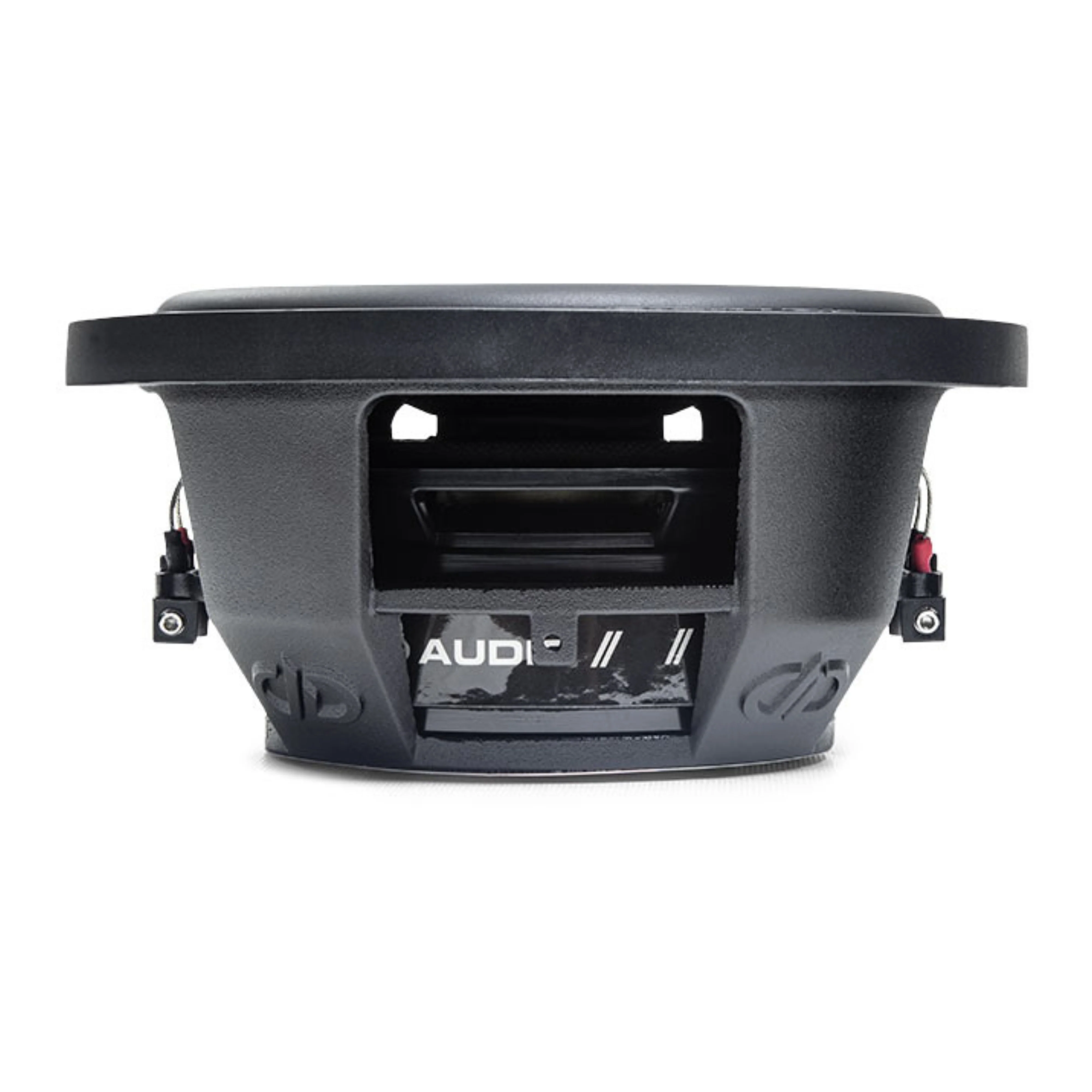

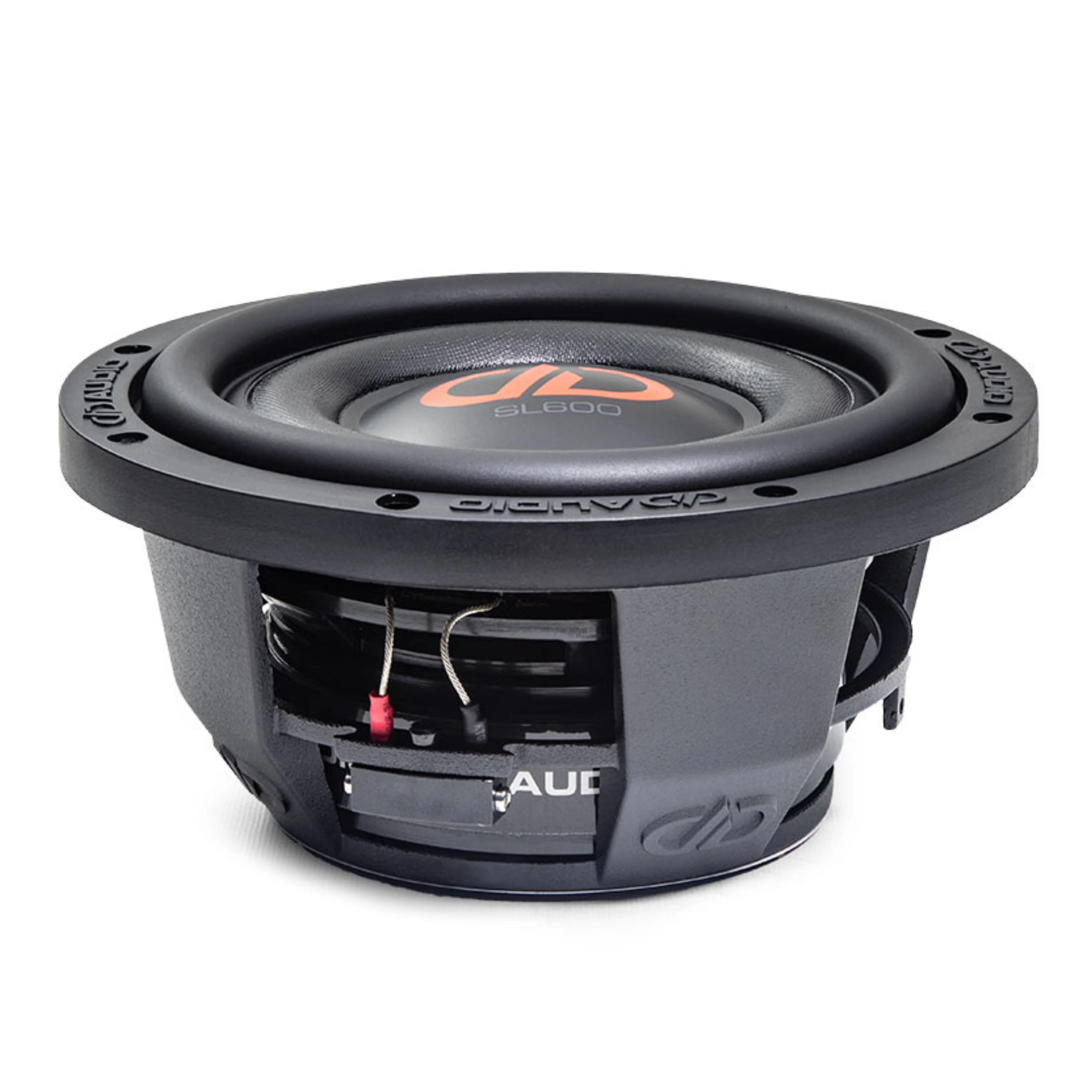

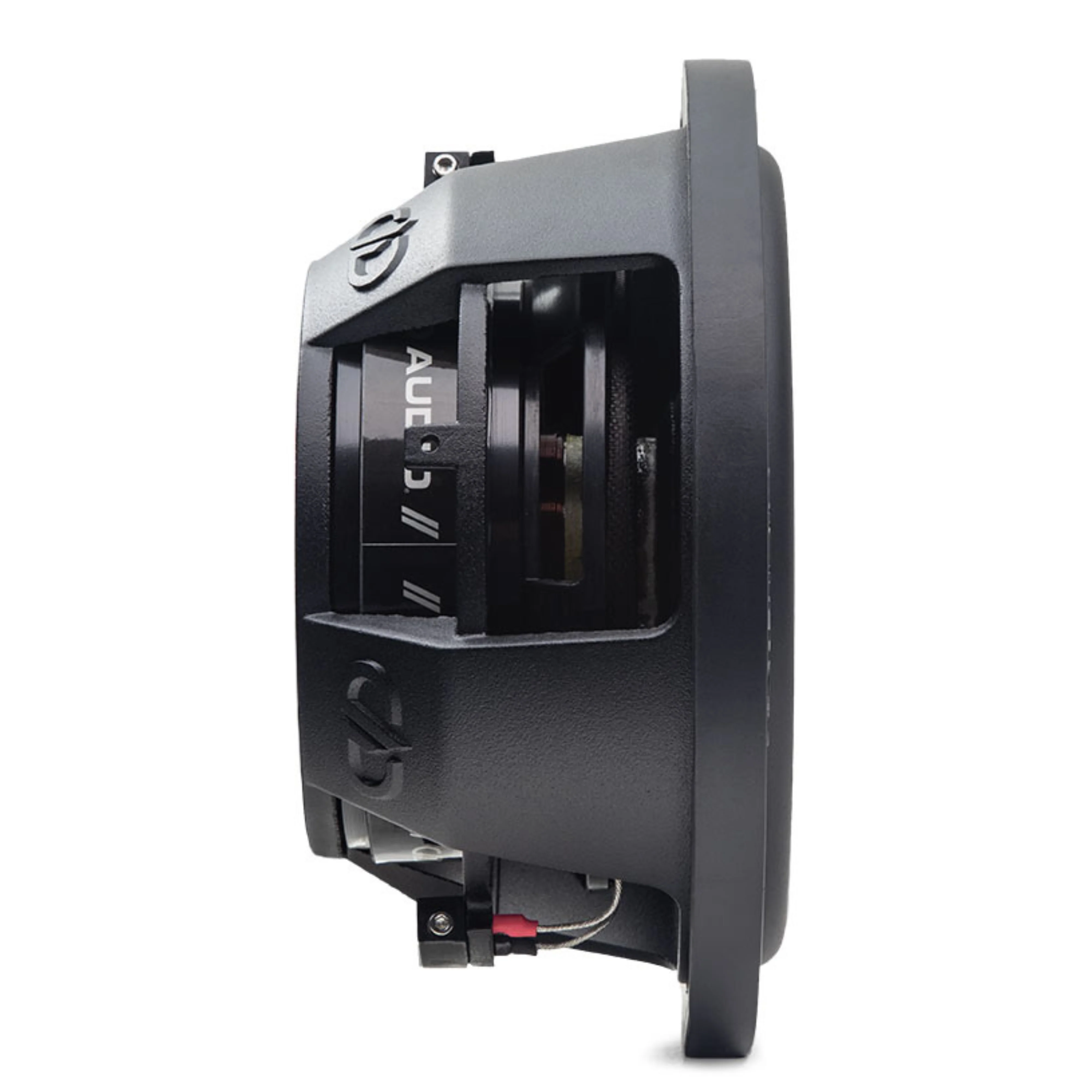

DD Audio Digital Designs 8 Inch 600 Watt Hi-Def Tuned Shallow Subwoofer SL608-D2

This listing includes:

(1) 8 Inch 600 Watt Hi-Def Tuned Shallow Subwoofer

The new SL608 opens new opportunities in achieving great sound in space limited applications. The cast 8 inch DD frame houses a full size 134mm OD motor with a 25mm thick magnet combined with a deep bump back plate with 12mm Xmax. This state of the art subwoofer pushes 38mm excursion from a minimal 3.5 inch mounting depth. The triple layer composite sandwich cone is coupled to a Santoprene rubber surround to give low distortion output in the most discerning sound quality applications. Following the standard DD AUDIO procedure, cutting-edge components are combined with state of the art engineering to create new standards in making the best sound systems possible. The new SL608 is the latest in a long line of excellent audio tools to unleash creative imagination in audio engineering.

Features:

• Shallow Mounting Depths


• 2.5†high temperature voice coil


• 72oz magnet, back plate coil gap venting


• EROM surround

Specifications:

• Speaker Size (In): 8


• Watts RMS: 100 - 300


• Watts Peak: 600


• Impedance: D2


• VCD (In): 2


• Piston Diameter (In): 6.5


• Fs (Hz): 34


• Qms: 5.139


• Qes: 0.432


• Qts: 0.398


• Vas (Liters): 13.106


• dBSPL: 84


• Xmech (MM): 38


• Xmax (MM): 12


• Frame OD (In): 8.31


• Frame OD (MM): 211.074


• Frame OD w/Gasket (In): 8.5


• Frame OD w/Gasket (MM): 215.9


• Mounting Diameter (In): 7.37


• Mounting Diameter (MM): 187.198


• Mounting Depth (In): 3.5


• Mounting Depth (MM): 88.9


• Motor Diameter (In): 5.276


• Motor Diameter (MM): 134.0104


• Motor Depth (In): 1


• Motor Depth (MM): 25.4


• Magnet Weight (Oz): 50


• Magnet Weight (Gm): 1417.48


• Woofer Displacement (CuFt): 0.04


• Woofer Displacement (Liters): 1.133


• Sealed Enclosure (CuFt): 0.30 - 0.70


• Sealed Enclosure (Liters): 8.495 - 19.822


• Ported Enclosure (CuFt): 0.4 - 1.0


• Ported Enclosure (Liters): 11.327 - 28.317


• Item Weight (Lbs): 9.42
