• Threaded back plate for compression driver mounting
• 8mm Xmax, 30mm suspension travel
• CCA coil wire

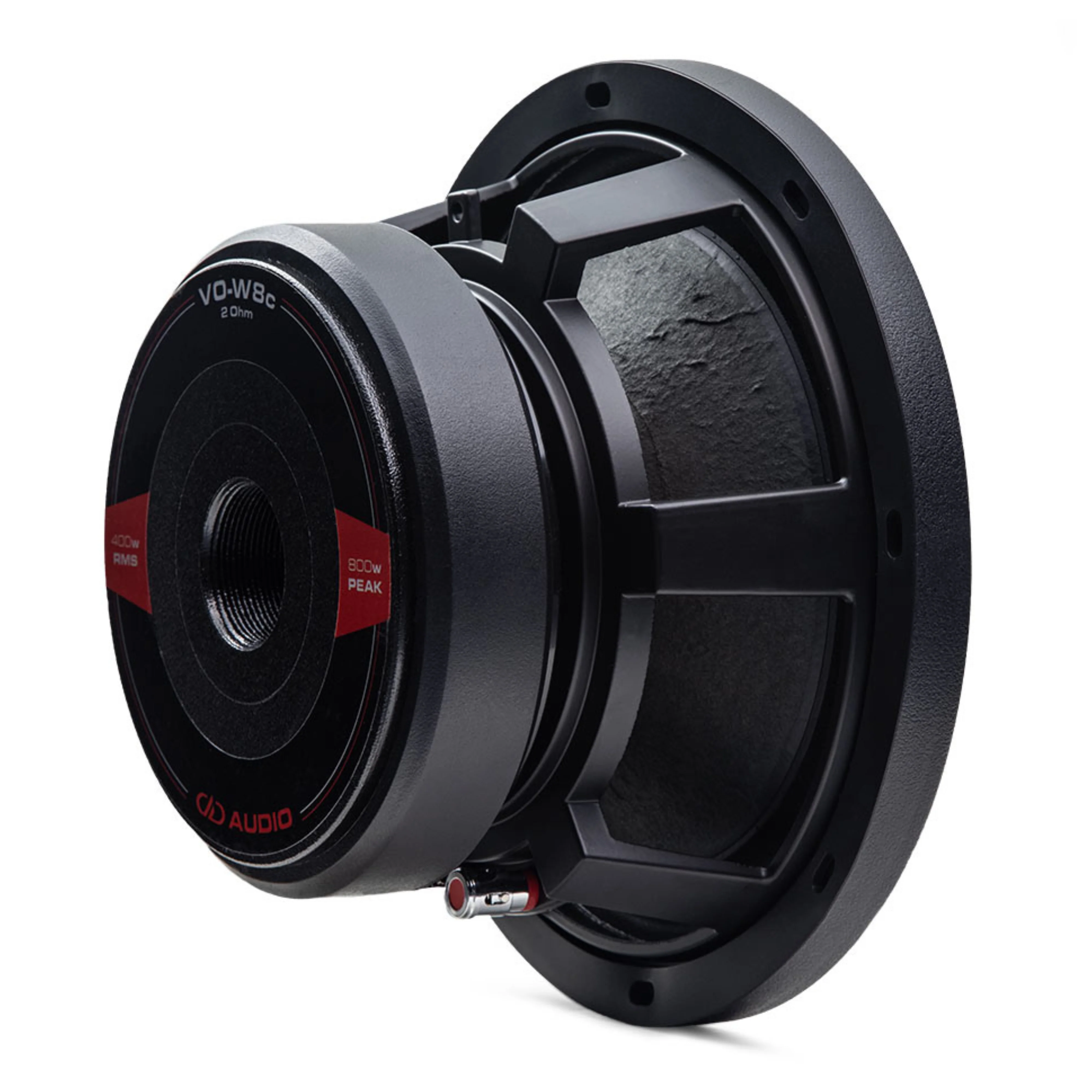

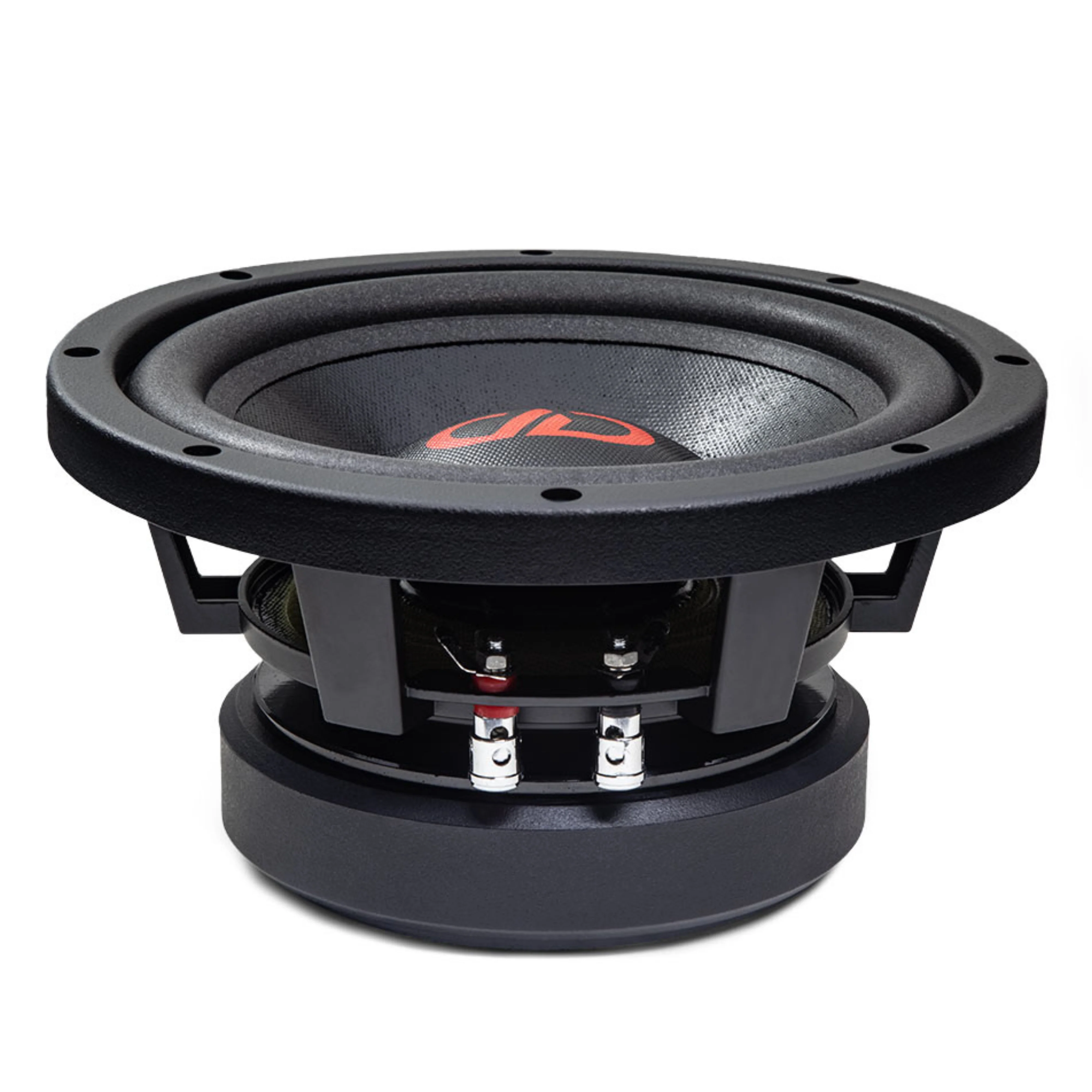

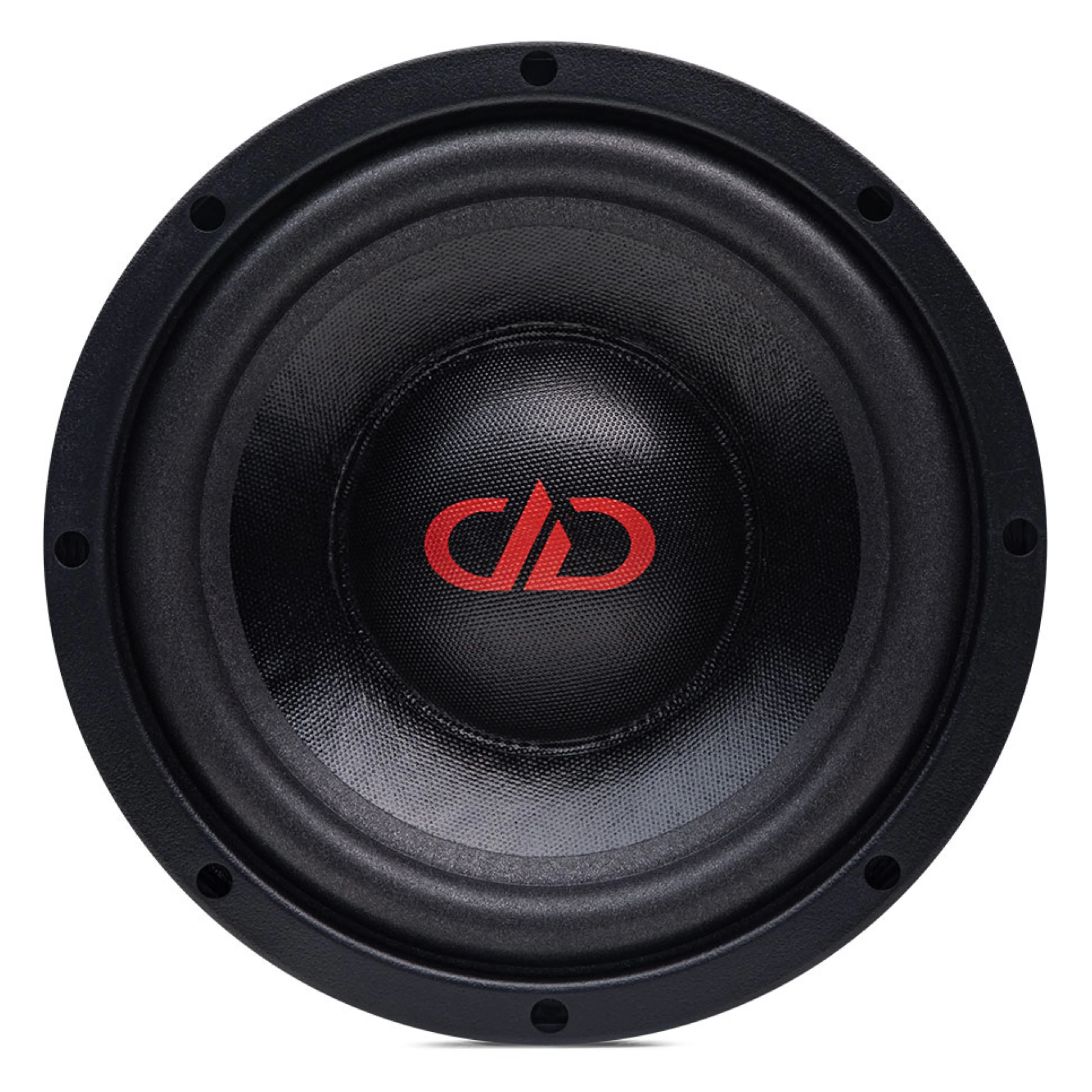

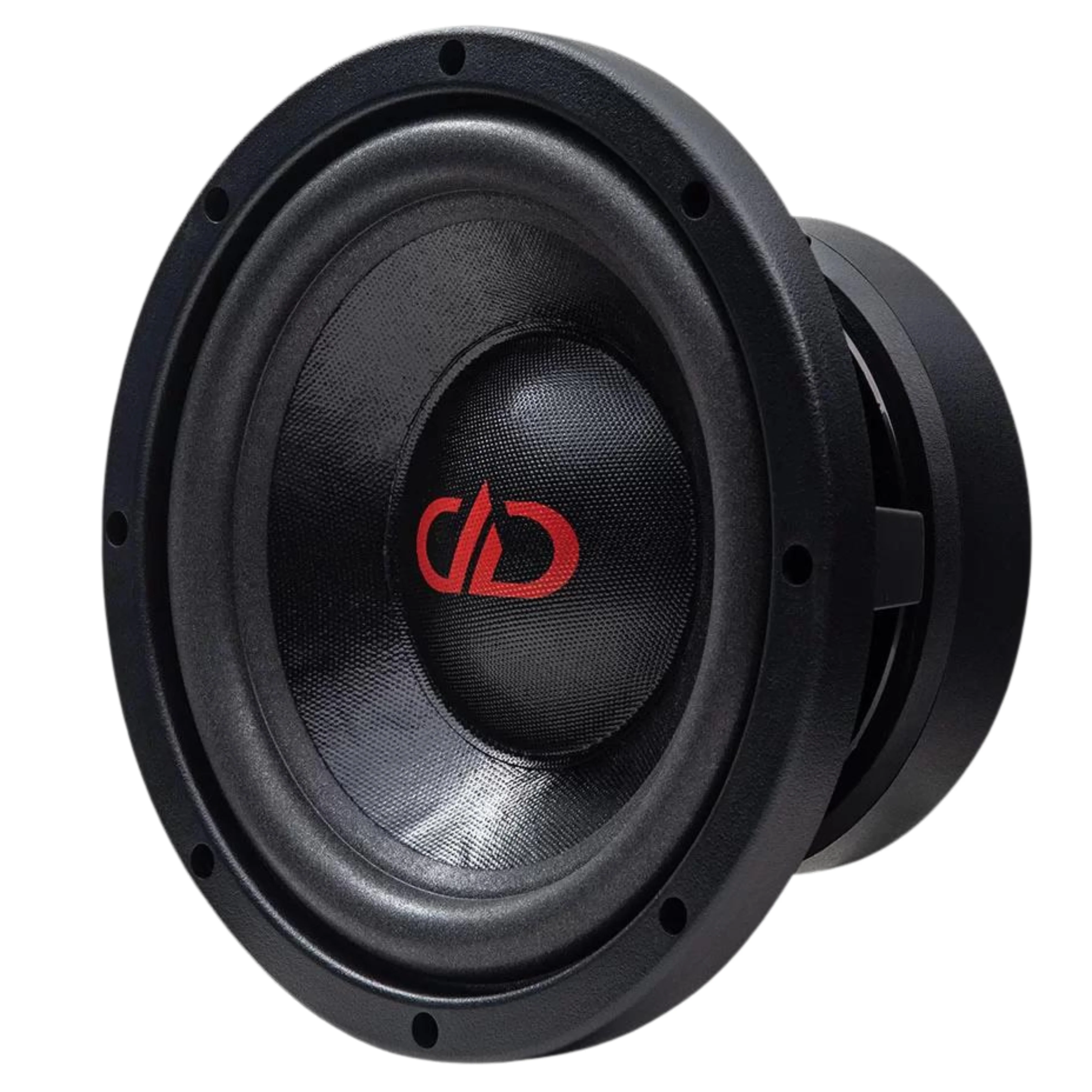

DD Audio Digital Designs 8 Inch 800 Watt Voice Optimized Woofer VO-W8C

This listing includes:

(1) 8 Inch 800 Watt Voice Optimized Woofer

The VO-W woofers are PA style, high output woofers combining design elements from pro audio and high-end car audio, low moving mass, low inductance and shorting ring motor design coupled with tight tolerances produces ultra fast transients and high output. The “c†revisions further refine these drivers with improvements to extend the low frequency midbass output using a longer voice coil winding with copper clad aluminum wire, longer excursion 1â„2 roll surround and a new cast frame basket allowing larger diameter spiders. The Xmax is increased and the midbass frequency range is broadened while upper mids are smooth and relaxed. The VO-W woofers feature performance refinements like large diameter voice coils, high-energy Cnc machined motors, cast frames, and the unique ability to thread on our VO-CT compression tweeters and horn for coaxial applications.

Features:

• 2.5†VCD

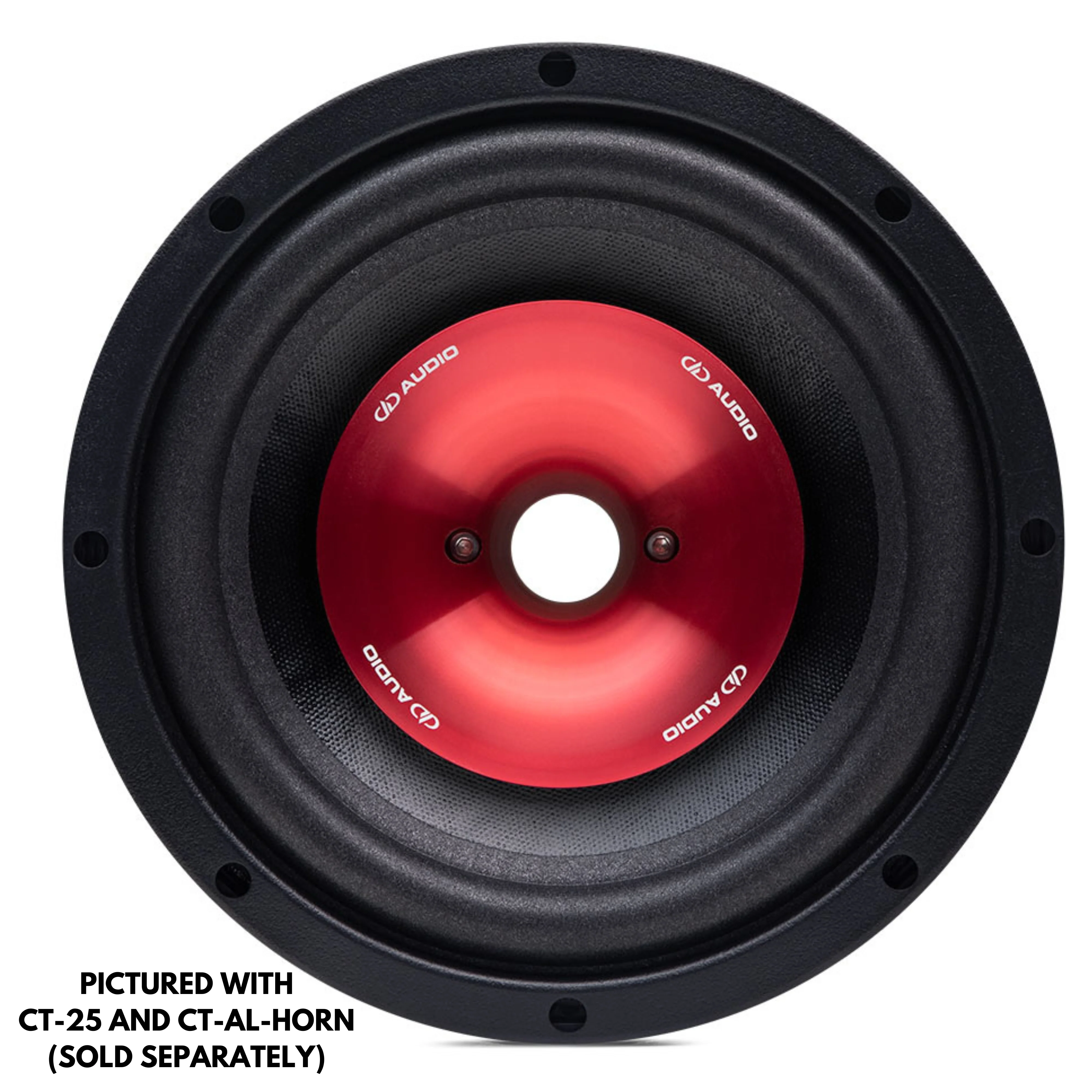

• Threaded back plate for compression driver mounting


• New cast aluminum frame


• 8mm Xmax, 30mm suspension travel


• roll surround


• Poly-cotton spider


• CCA coil wire


• Shorting ring motor


• 400 RMS, 800 peak

Specifications:

• Speaker Size (In): 8


• Watts RMS: 400


• Watts Peak: 800


• Impedance: S2


• Frequency Response (Hz): 60 - 8k


• Fs (Hz): 60


• Qms: 2.169


• Qes: 0.645


• Qts: 0.497


• Vas (Liters): 25.59


• dBSPL: 95


• Xmax (MM): 8


• Mounting Diameter (In): 7 3/8


• Mounting Diameter (MM): 187.3


• Mounting Depth (In): 3.75


• Mounting Depth (MM): 96
