• Massive Power Handling: Delivers a powerful 1200W RMS and handles peaks with ease, making your music come alive.
• Compact Yet Mighty: 8" size offers easy installation while still producing deep, resonant bass that defies its compact form.
• Dual Voice Coil Design: Features a 2.5" dual 4-Ohm voice coil for enhanced flexibility and precision in your audio setup.
• Durable Construction: Built to last with high-quality materials, ensuring long-term performance even under heavy use.
• Perfect for Custom Builds: Ideal for both sealed and ported enclosures, allowing you to tailor the sound to your specific preferences.

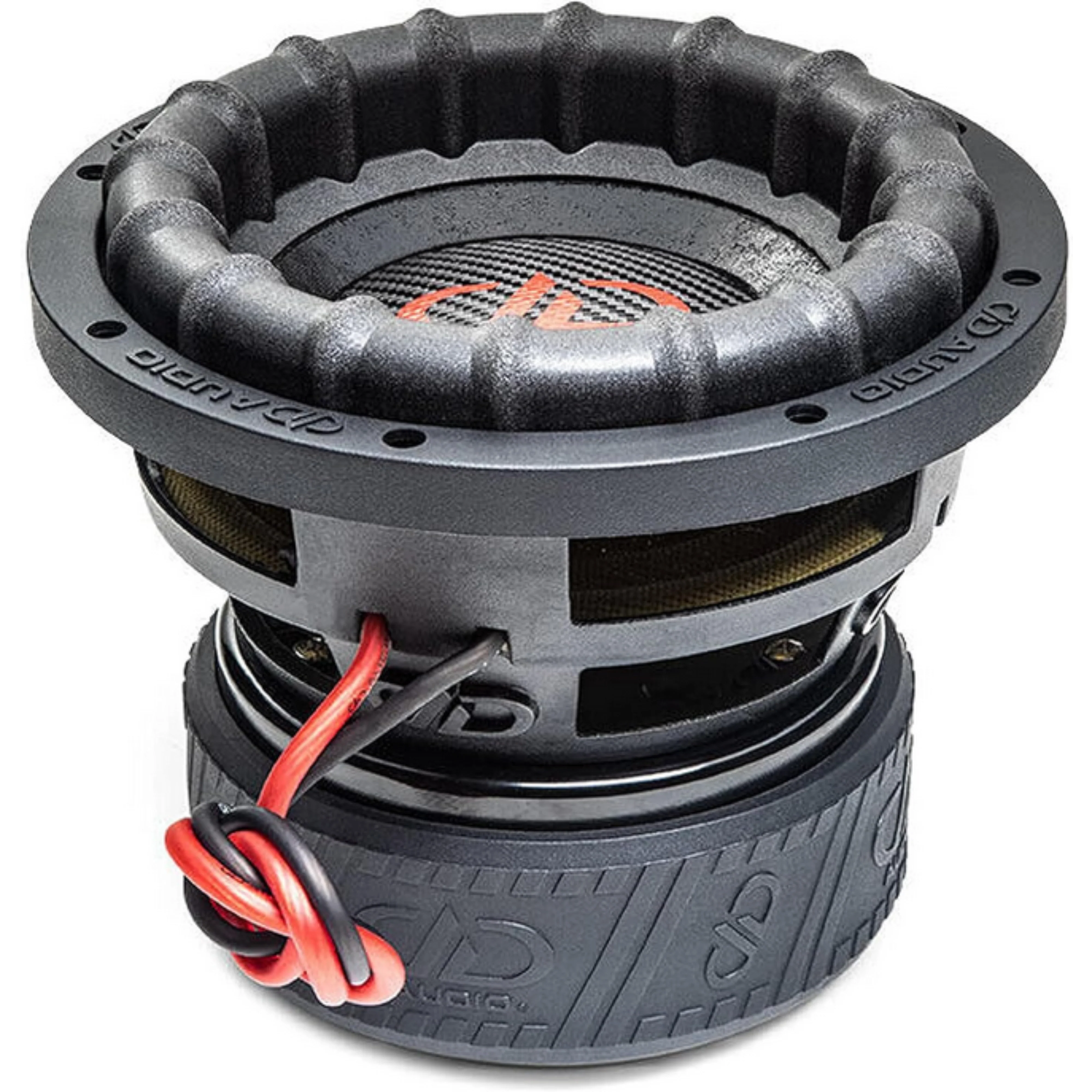

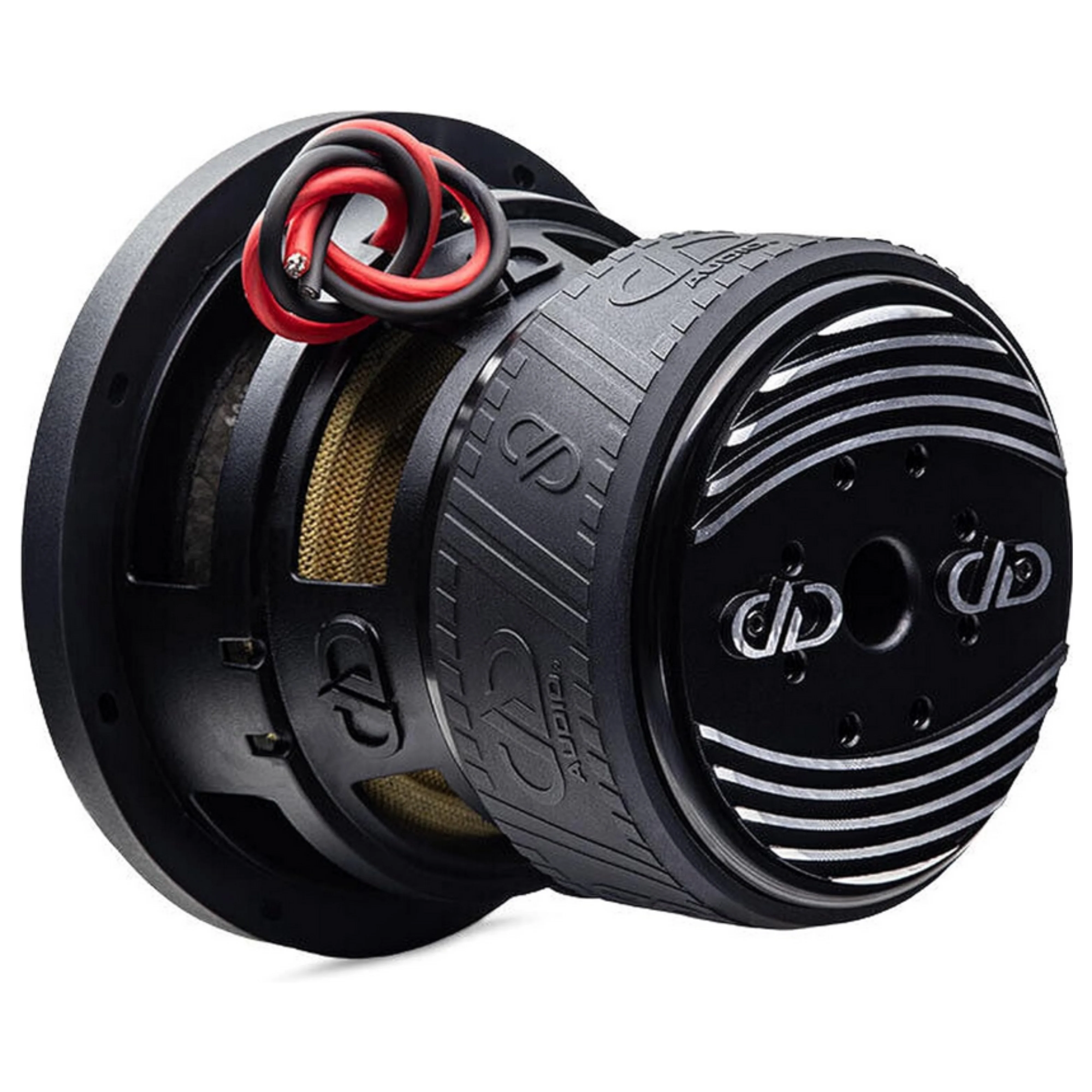

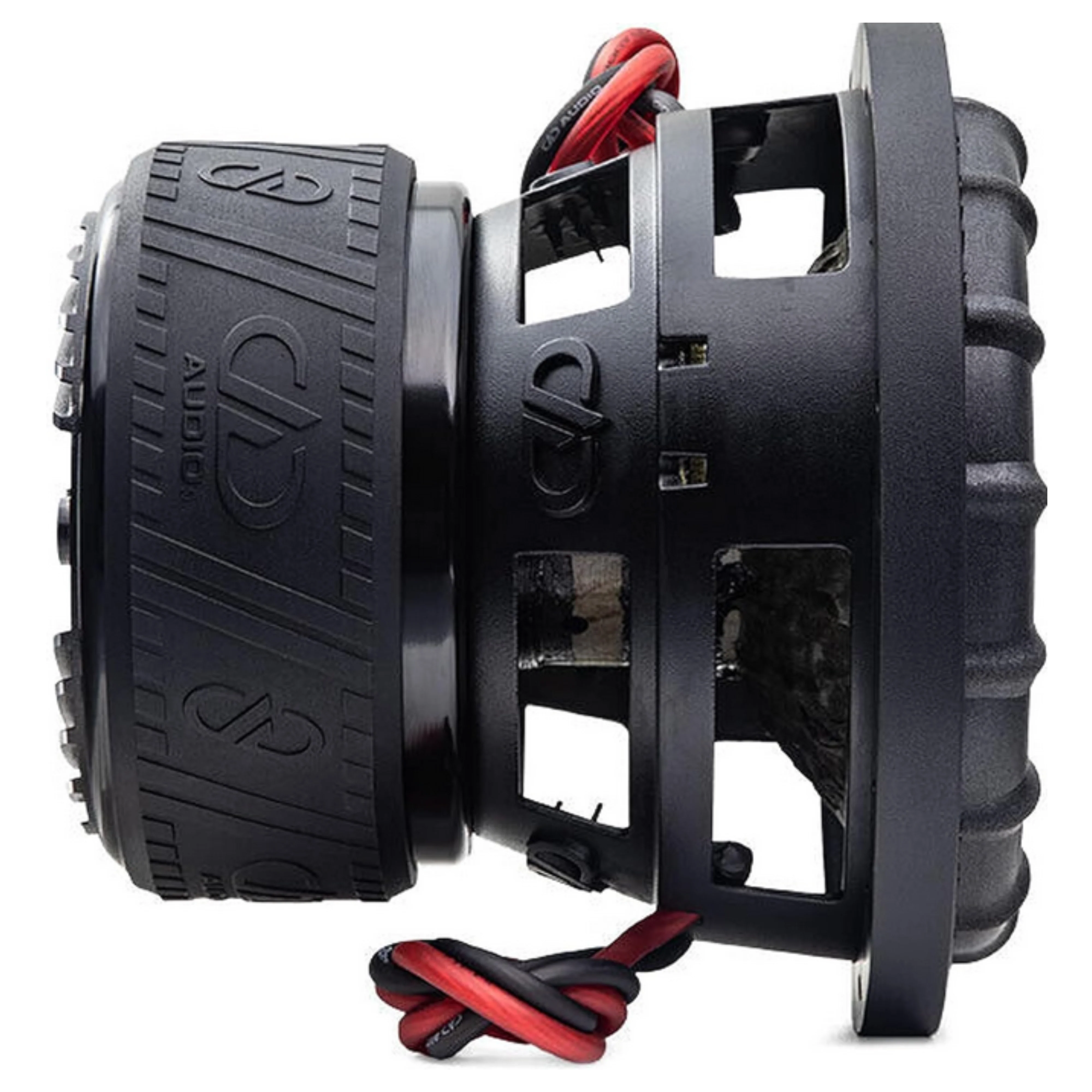

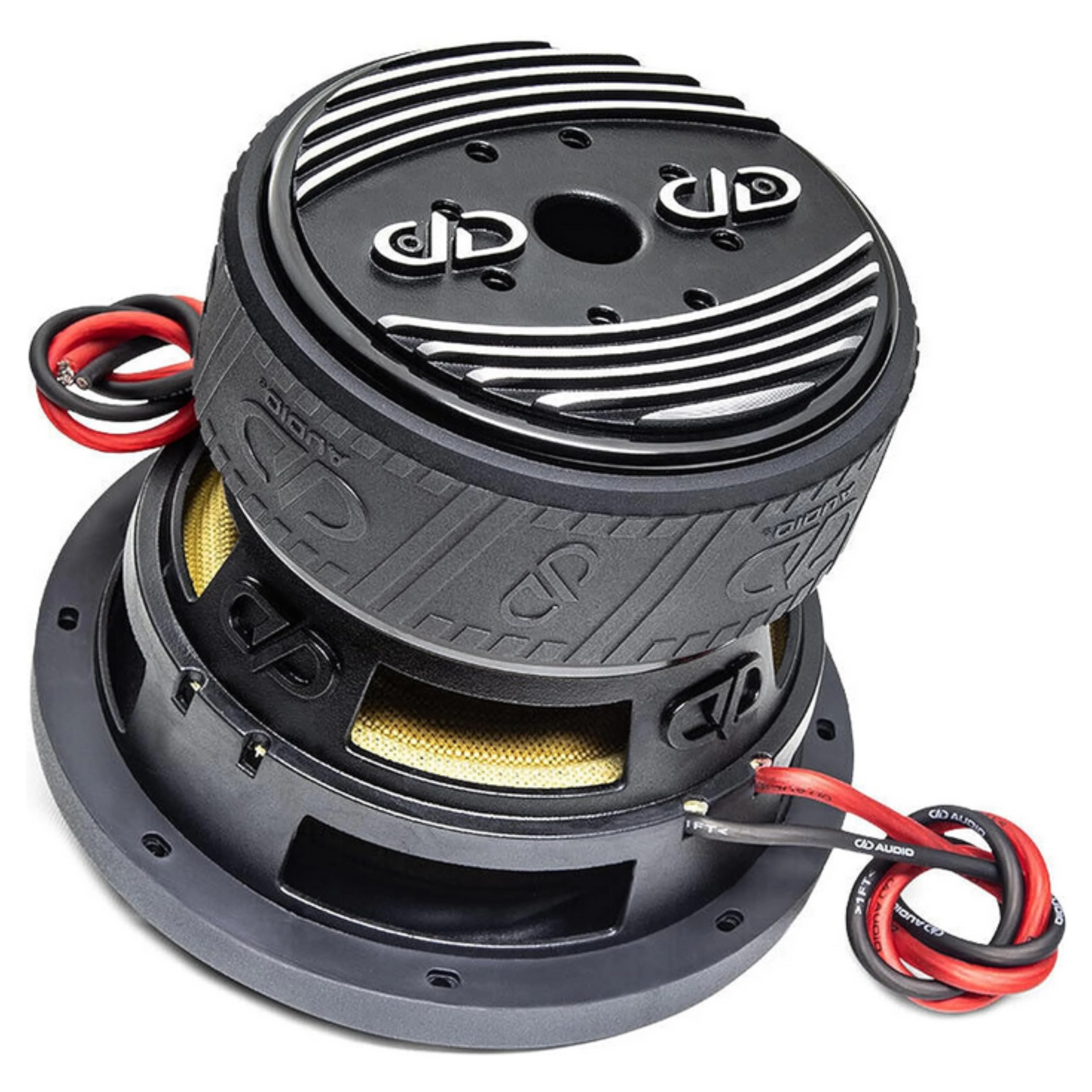

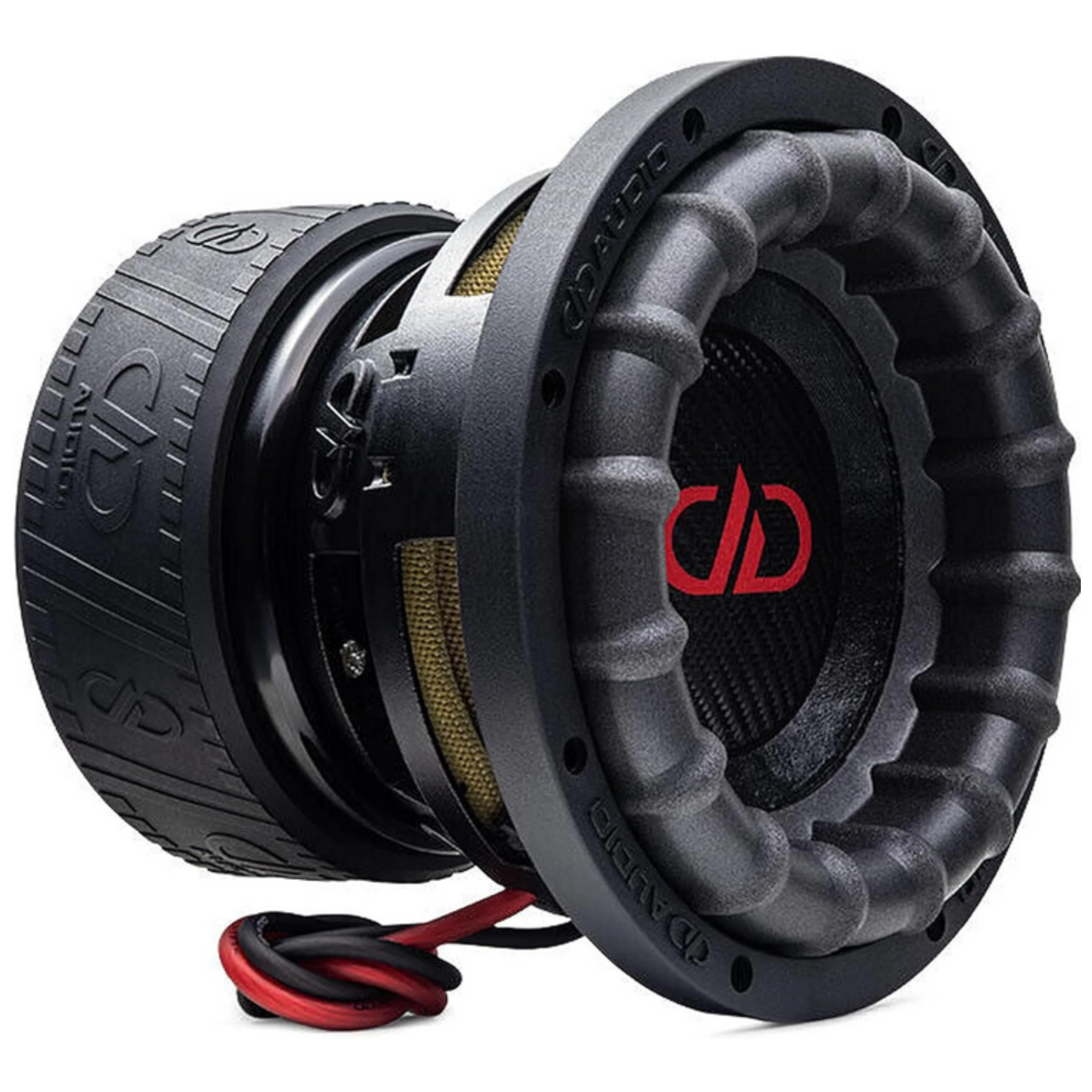

8 Inch 1200W RMS 4-Ohm 2.5" DVC Subwoofer DD Audio 2508G Series / 2508G-D4

This listing includes:

• (1) 8 Inch Dual 4-Ohm 3600W Subwoofer

Description:

Take your car audio system to the next level with the DD Audio Digital Designs 2508G-D4 8" Subwoofer. Engineered for audiophiles who demand relentless power and precision, this subwoofer delivers a monstrous 1200W RMS, bringing earth-shaking bass to any vehicle. With a robust 2.5" dual voice coil and a meticulously crafted design, the 2508G-D4 is built to handle extreme power while maintaining exceptional sound quality. Whether you're a bass enthusiast or a competitive sound system builder, this subwoofer is your ticket to deep, impactful lows that you can feel.

Features:

• New Aluminum 2 Stage Heatsink


• 7.0 Inch Diameter Motor


• 20mm Top Plate


• New 2nd Gen V-ROM surround


• New Ironcloth Double Spider System


• Hand Laid Carbon Fiber Dust Cap


• DD ESP Cast Frame


• Carbon Fiber Loaded, Non-Pressed Pulp Cone


• Direct Leads


• Laminated Tinsel Leads


• Embossed DDesign Magnet Boot

Specifications:

• Speaker Size (In): 8


• Watts RMS: 1200


• Watts Peak: 3600


• Impedance: D4


• VCD (In): 2.5


• Piston Diameter (In): 7.25

Thiele and Small Parameters:

• Fs (Hz): 42


• Qms: 5.88


• Qes: 0.62


• Qts: 0.56


• Vas (Liters): 4.64


• Xmech (MM): 57


• Xmax (MM): 20

Measurements:

• Frame OD (In): 8.95


• Frame OD w/ Gasket (In): 9.25


• Mounting Diameter (In): 8


• Mounting Depth (In): 6.69


• Motor Diameter (In): 7


• Motor Depth (In): 3.25


• Overall Diameter (In): 9.25


• Overall Depth (In): 8.28


• Item Weight (Lbs.): 25.10

Enclosure Suggestions

• Woofer Displacement (CuFt): 0.08


• Sealed Enclosure (CuFt): 0.4 - 0.08


• Ported Enclosure (CuFt): 0.75 - 1.25
