• Optimized Filtering: 12dB/oct filter with a 4kHz crossover point for precise frequency management
• Designed for Tweeters: Ideal for use with DD Audio T2b and CT28 tweeters
• Quality Components: Metalized polypropylene capacitors and copper coils for durability
• Power Handling: Capable of handling up to 100 watts RMS
• Efficiency and Clarity: Enhances sound system performance by filtering unwanted frequencies

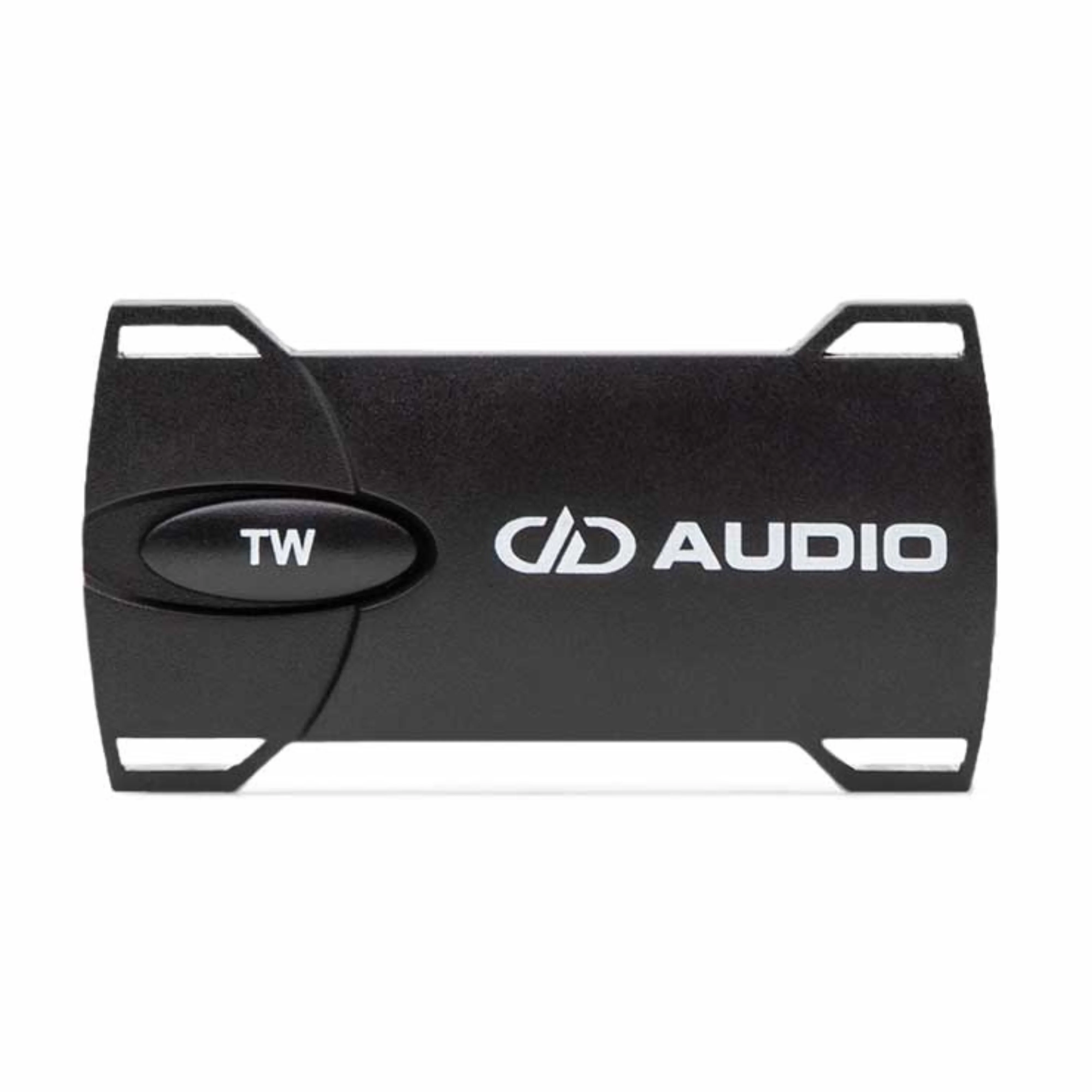

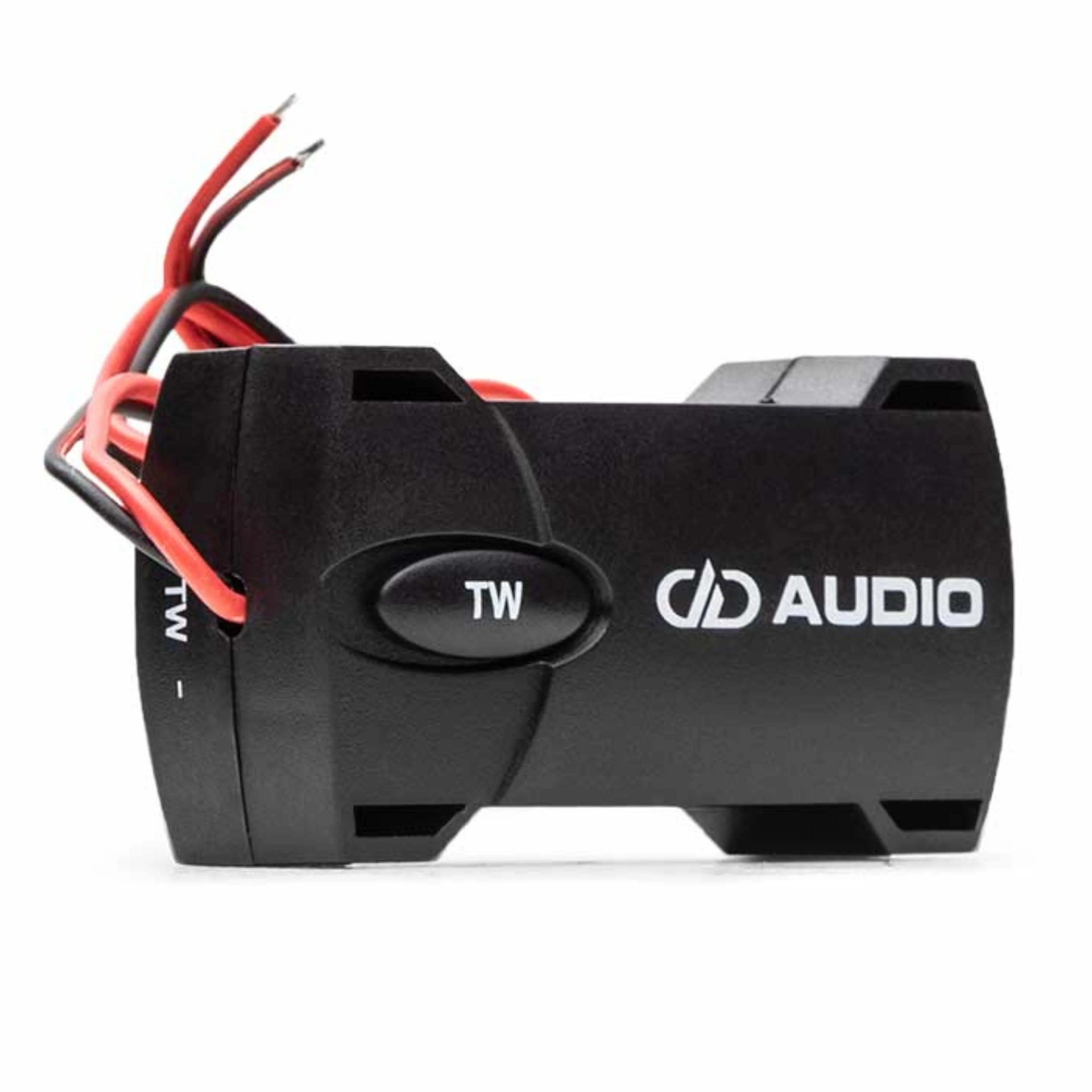

DD Audio High-Pass Crossover 12dB/Oct HP Crossover 4kHz @ 4O TXO-HP12

This Listing Includes:

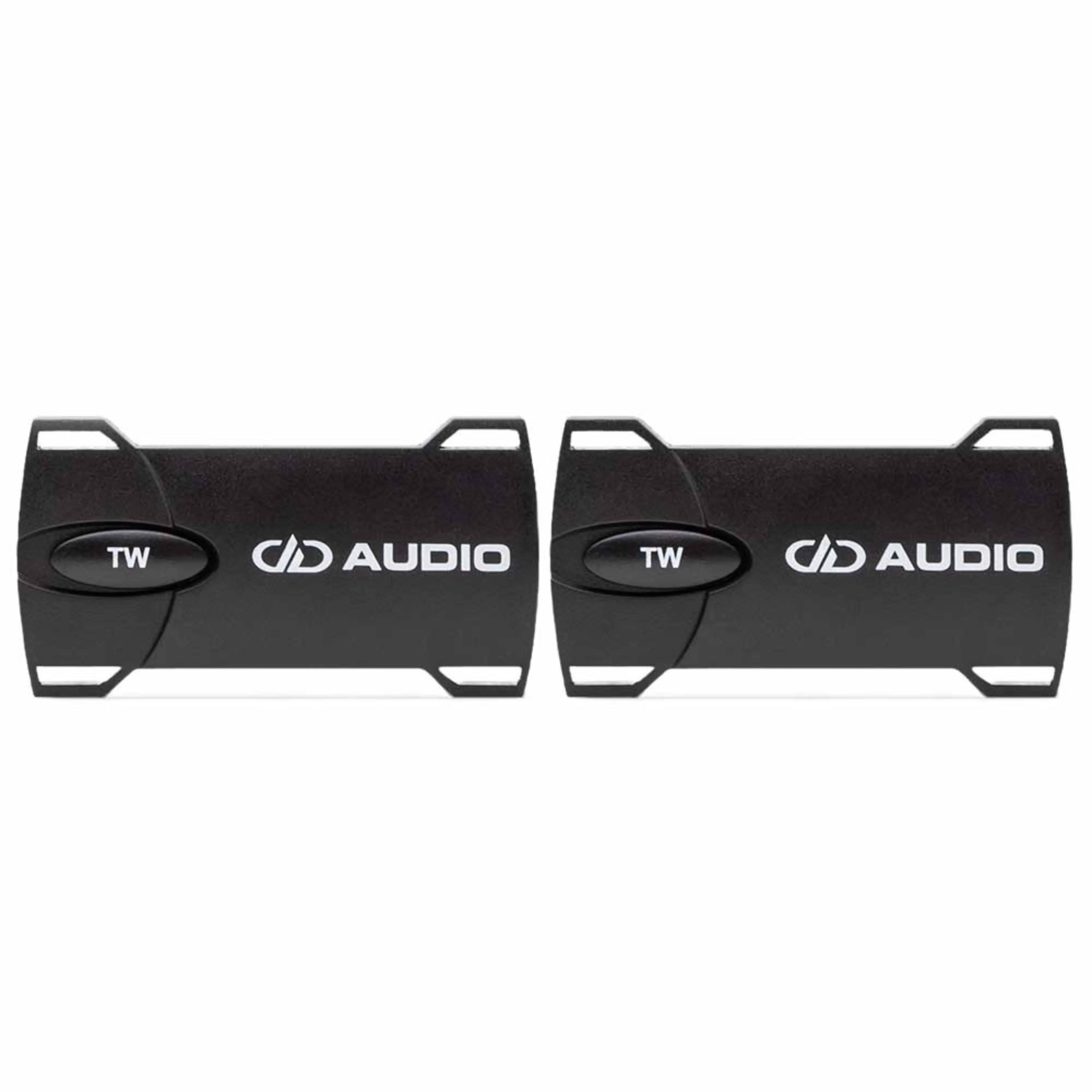

• (2) DD Audio TXO-HP High-Pass Crossover

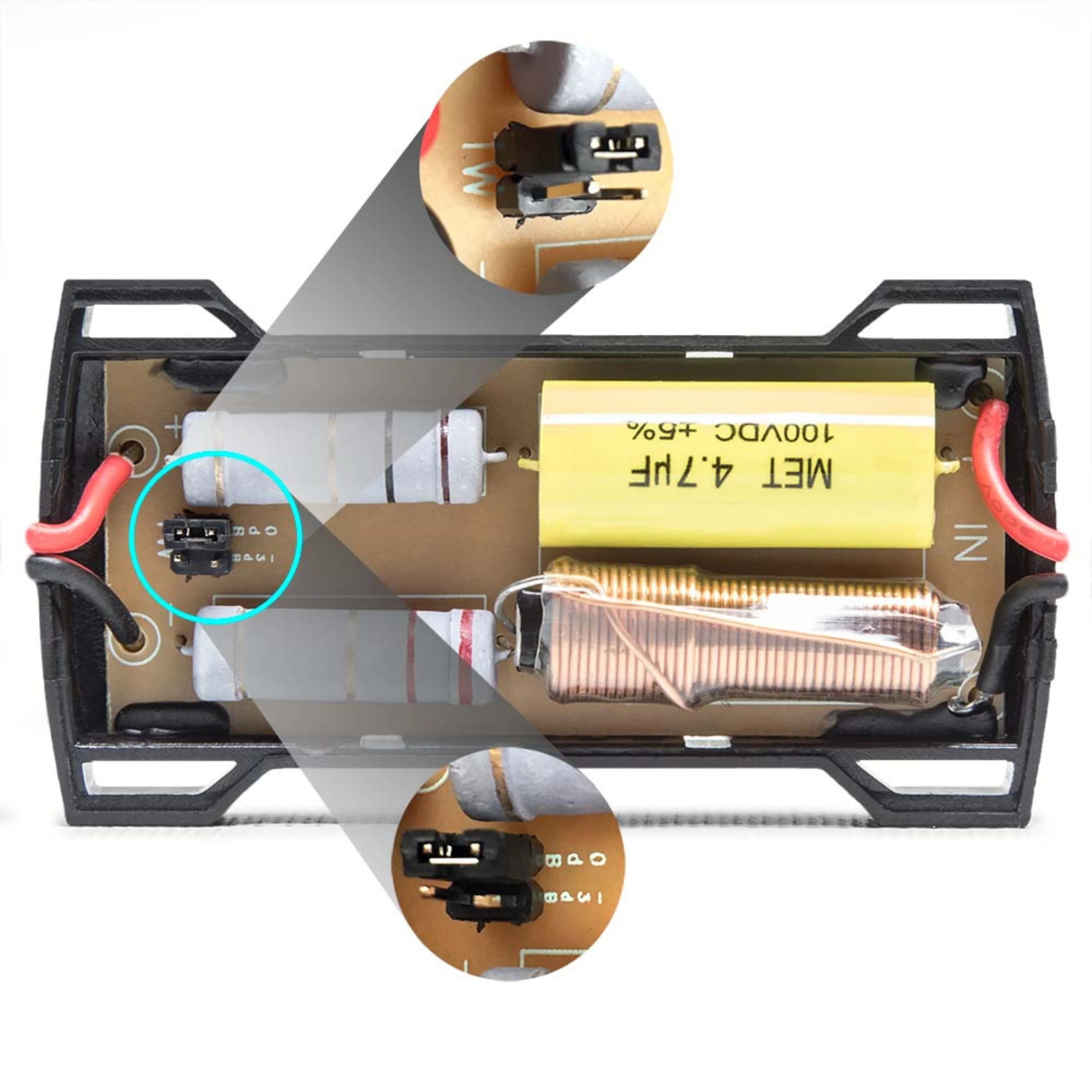

Enhance the performance of your audio system with the DD Audio TXO-HP, a high-quality high-pass crossover. This inline filter is designed with a 12dB/octave slope and a 4kHz crossover point, optimized for 4-ohm loads. It is perfectly suited for use with T2b and CT28 tweeters, as well as any setup requiring an economical yet effective high-pass filtering solution. The TXO-HP boasts metalized polypropylene capacitors and copper coils, ensuring reliability and a power rating of 100 watts RMS.

Specifications:

• Input Channel(s): 1


• Output Channel(s): Tweeter


• Dimensions (Inches): 3.22 x 1.73 x 1.05


• Dimensions (MM): 82 x 44 x 27


• Shipping Weight: 1 Lb

Features:

• Ideal for high-frequency audio applications


• Perfect for tweeter protection and efficiency


• High-quality construction for lasting performance


• Compact design for easy integration


• Enhances sound system clarity and efficiency
