• High Temp 2” Voice Coil, DVC 2 Ohm
• EROM Surround, Vented Stamped Steel Frame
• Vented Backplate
• Push Terminals

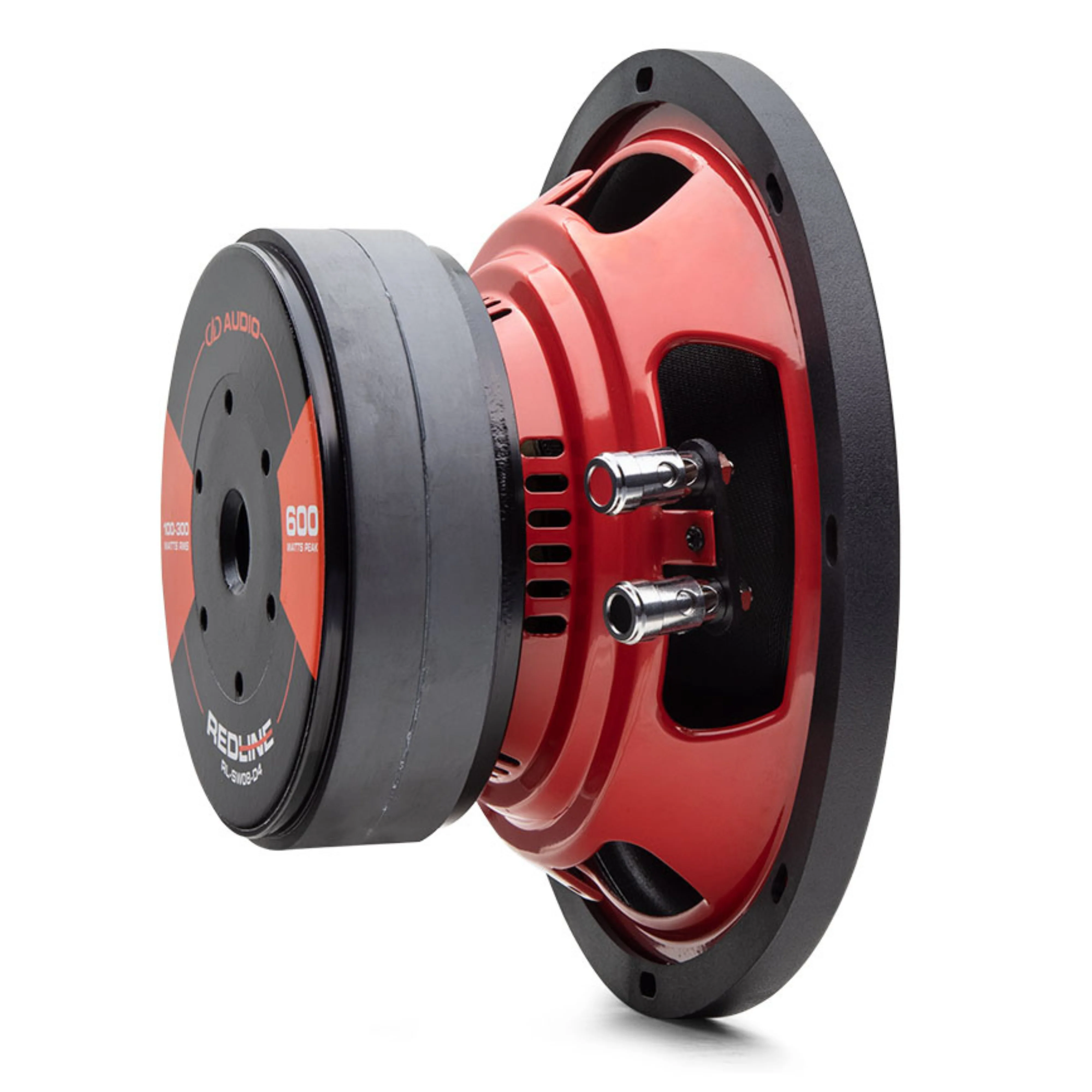

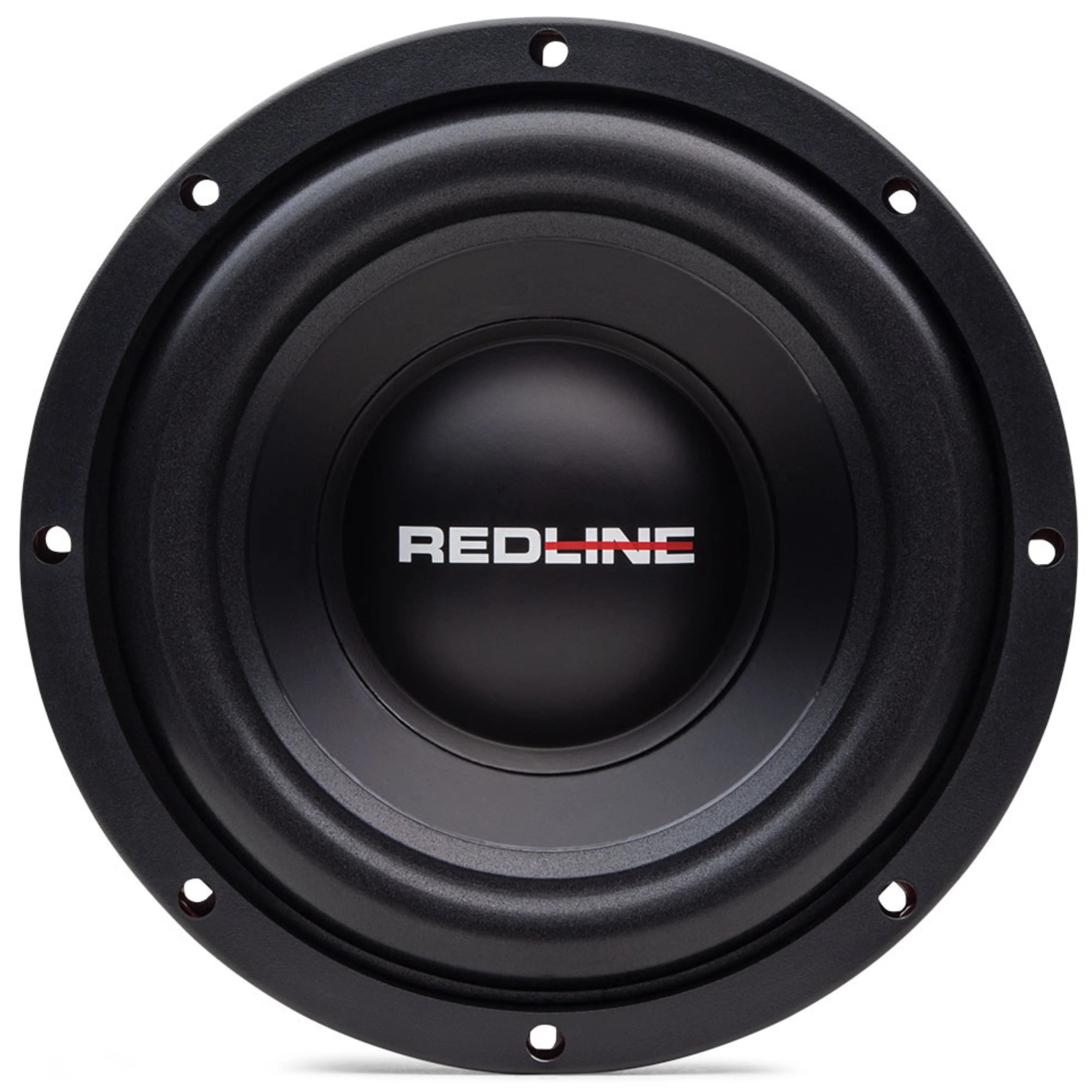

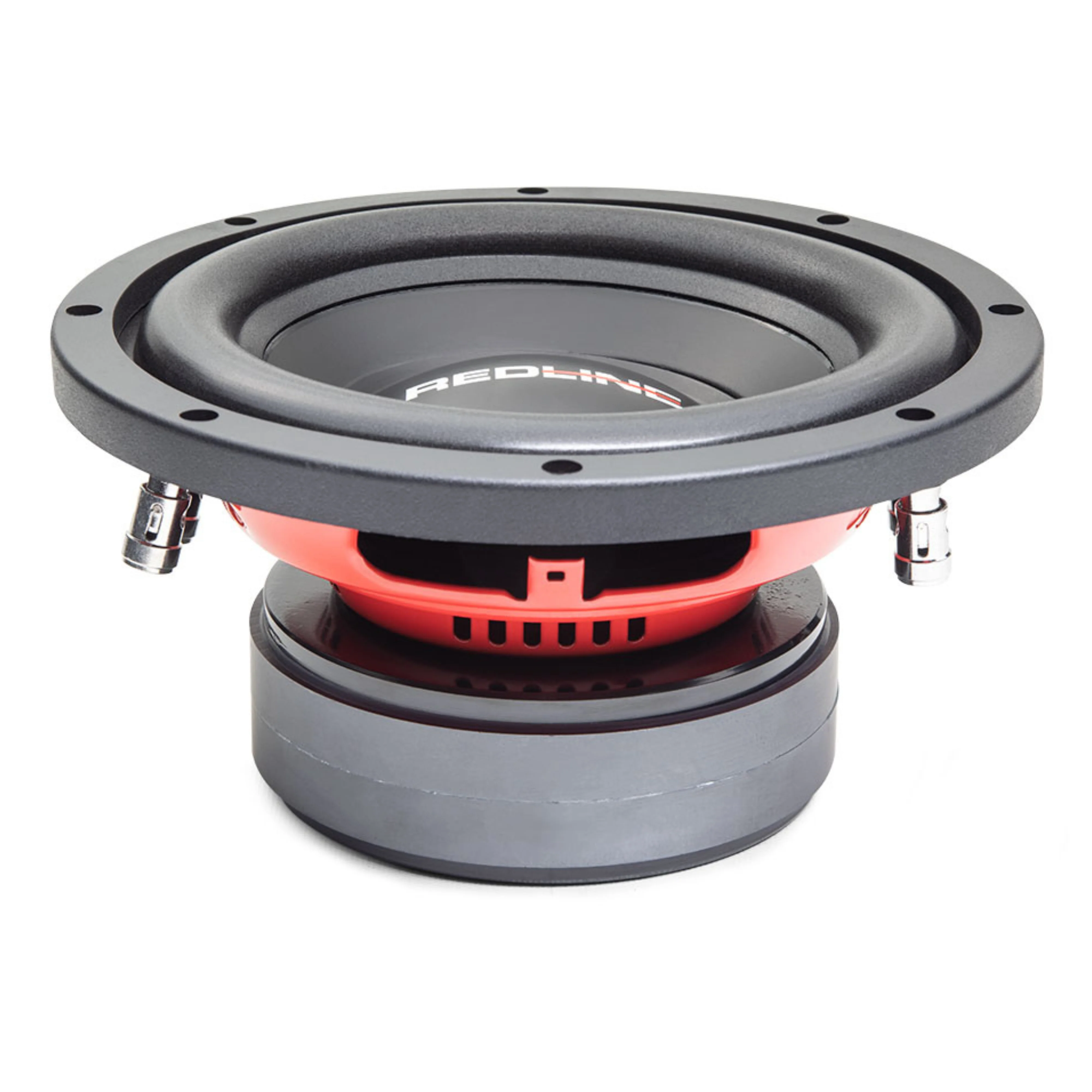

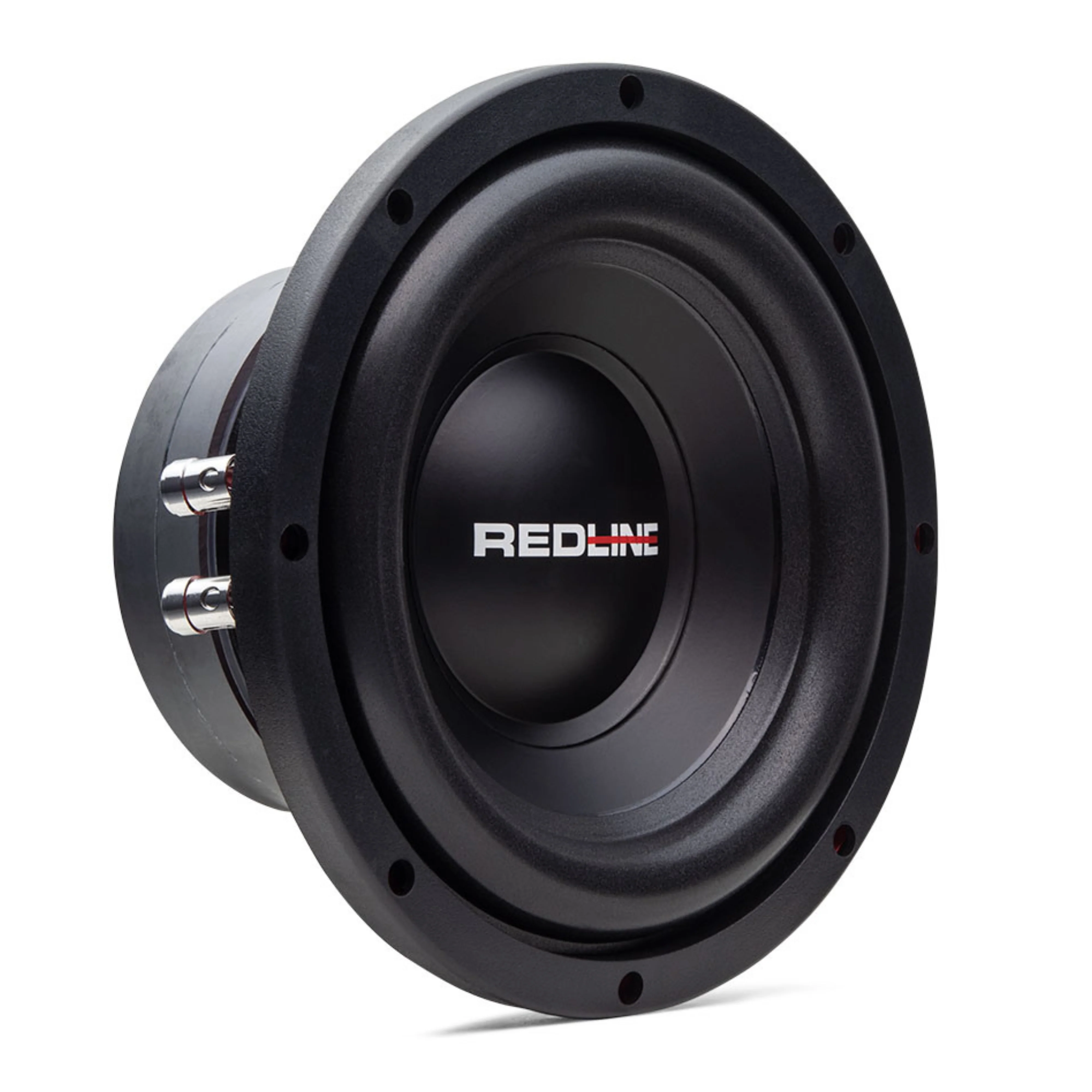

DD Audio Redline SW Series 8 Inch 600 Watt 2" Voice Coil Subwoofer RL-SW08-D2

This listing includes:

(1) 8 Inch 600 Watt 2" Voice Coil Subwoofer

The REDLINE SW Series subwoofers offer extreme bass and value. These Hi Def Tuned subwoofers work great in sealed and small vented enclosures, on low to moderate power levels. They’re equipped with all the performance features needed to handle the rigors of daily pounding, and they are available in two impedance options so they can be matched to any DD Audio amplifier.

Features:

• High Temp 2†Voice Coil


• DVC 2 Ohm


• EROM Surround


• Vented Stamped Steel Frame


• Vented Backplate


• Push Terminals

Specifications:

• Speaker Size (In): 8


• Watts RMS: 100 - 300


• Watts Peak: 600


• Impedance: D2


• VCD (In): 2


• Piston Diameter (In): 6.25


• Fs (Hz): 46.7


• Qms: 4.266


• Qes: 0.5922


• Qts: 0.52


• Vas (Liters): 9.086


• dBSPL: 84


• Xmech (MM): 18


• Xmax (MM): 8


• Frame OD (In): 8.215


• Frame OD w/Gasket (In): 8.63


• Mounting Diameter (In): 7.168


• Mounting Depth (In): 3.898


• Motor Diameter (In): 5.27


• Motor Depth (In): 1.7


• Magnet Weight (Oz): 55


• Woofer Displacement (CuFt): 0.03


• Sealed Enclosure (CuFt): 0.35 - 0.75


• Ported Enclosure (CuFt): 0.5 - 1.0
