• 8-Channel DSP: Provides advanced control for precise sound tuning across eight channels
• Phase Shifter: Includes a 0/180° phase shifter for enhanced audio alignment
• Reliable Performance: Operates within a working voltage range of 10-17V and maintains a signal-to-noise ratio of ≥ 95 dB
• Versatile Input Sensitivity: Supports low-level inputs (0.7-6 V) and high-level inputs (6.5-15 V) for flexible compatibility

Deaf Bonce DB-8.50 DSP - 8-Channel Digital Signal Processor for Audio Precision

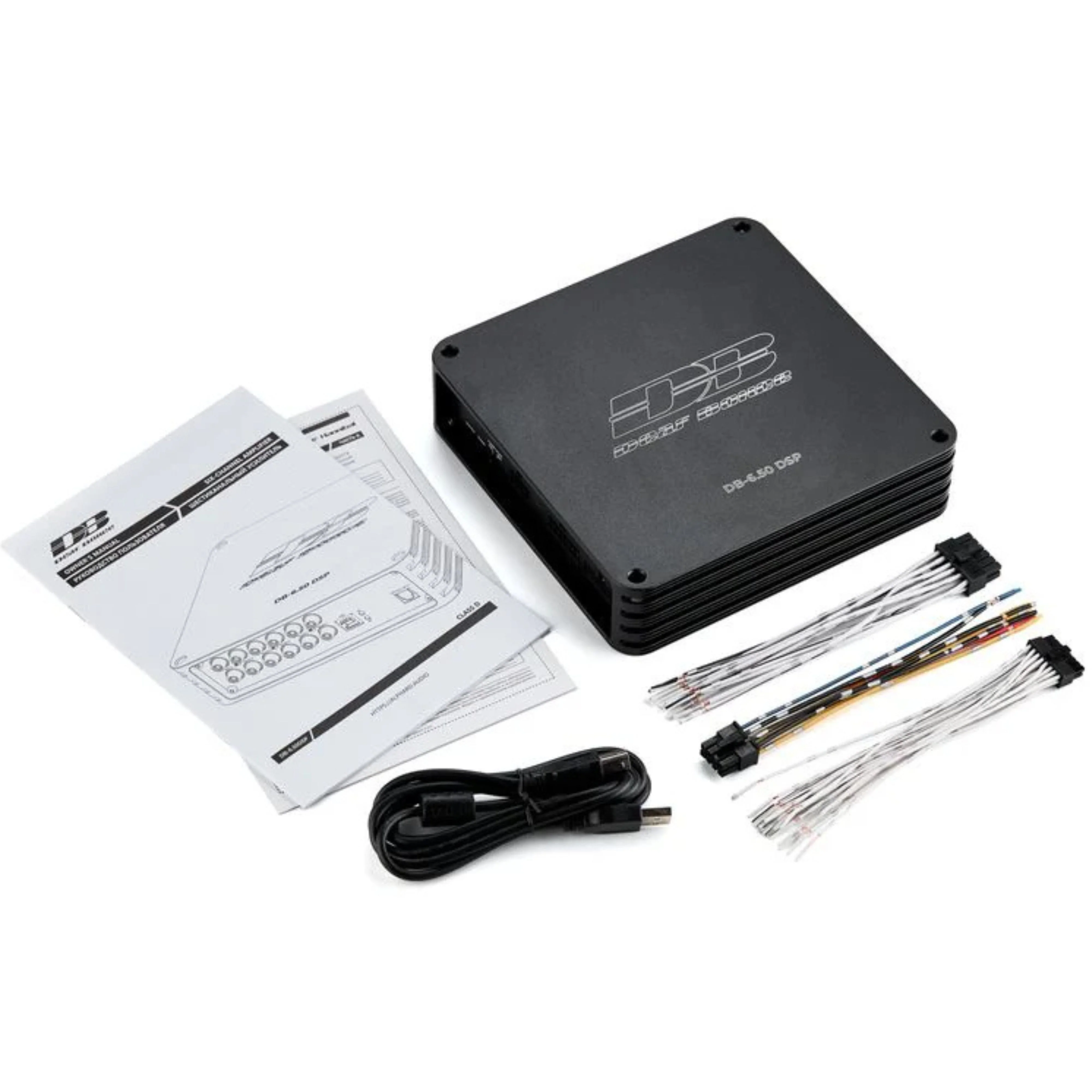

This Listing Includes:

• (1) Deaf Bonce 8-Channel DSP 4-Ohms (14.4V)

The Deaf Bonce DB-8.50 DSP is a state-of-the-art 8-channel digital signal processor engineered for audio enthusiasts who demand precision and clarity. Designed to elevate your car audio system, this DSP offers unparalleled control over your sound, ensuring every note is perfectly tuned. With advanced features like real-time signal adjustments, a user-friendly interface, and seamless integration with most audio systems, the DB-8.50 sets a new standard for performance and flexibility. Backed by robust specifications, this DSP guarantees exceptional audio performance and reliability for any setup.

Specification

• Model: DB-6.50 DSP


• Class: D


• Number of Channels: 8


• Frequency Response: 20 - 20000 Hz


• 4 Ohm RMS Power (14.4 V): 50 W x 8


• Minimum Permissible Load on the Channel: 4 Ohm


• Input Sensitivity (Low Level Inputs): 0.7 - 6 V


• Input Sensitivity (High Level Inputs): 6.5 - 15 V


• Low Pass Filter: 20 - 20000 Hz


• High Pass Filter: 20 - 20000 Hz


• Crossover Slope: 48 dB/Oct


• Input Terminal Connection: 22ga


• Output Terminal Connection: 18ga


• Damping Factor: 88


• Working Voltage: 10 - 17 V


• Phase Shifter: 0/180


• Signal-to-Noise Ratio: â 95 dB


• Size (W Ã L Ã H): 7.2 Ã 7.1 Ã 1.8 inches


• Gross Weight: 5 lbs
