• Perfect for Hi-Volts Amplifiers
• Hi-Volt RCA Input and output up to 9 volts
• Bass Boost adjustable on frequency and intensity
• LED Clip indicator for input and output
• Remote output with delay to avoid noises

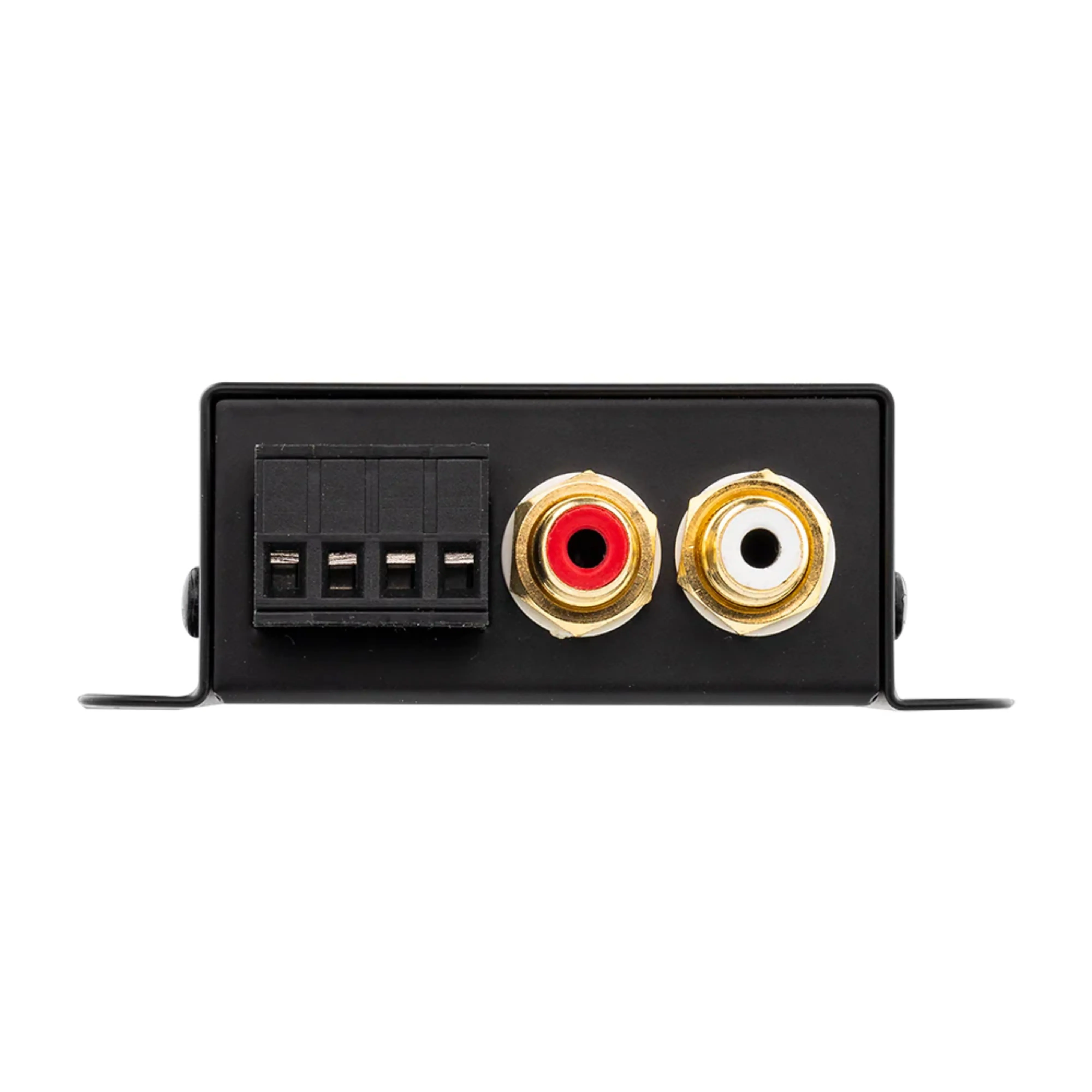

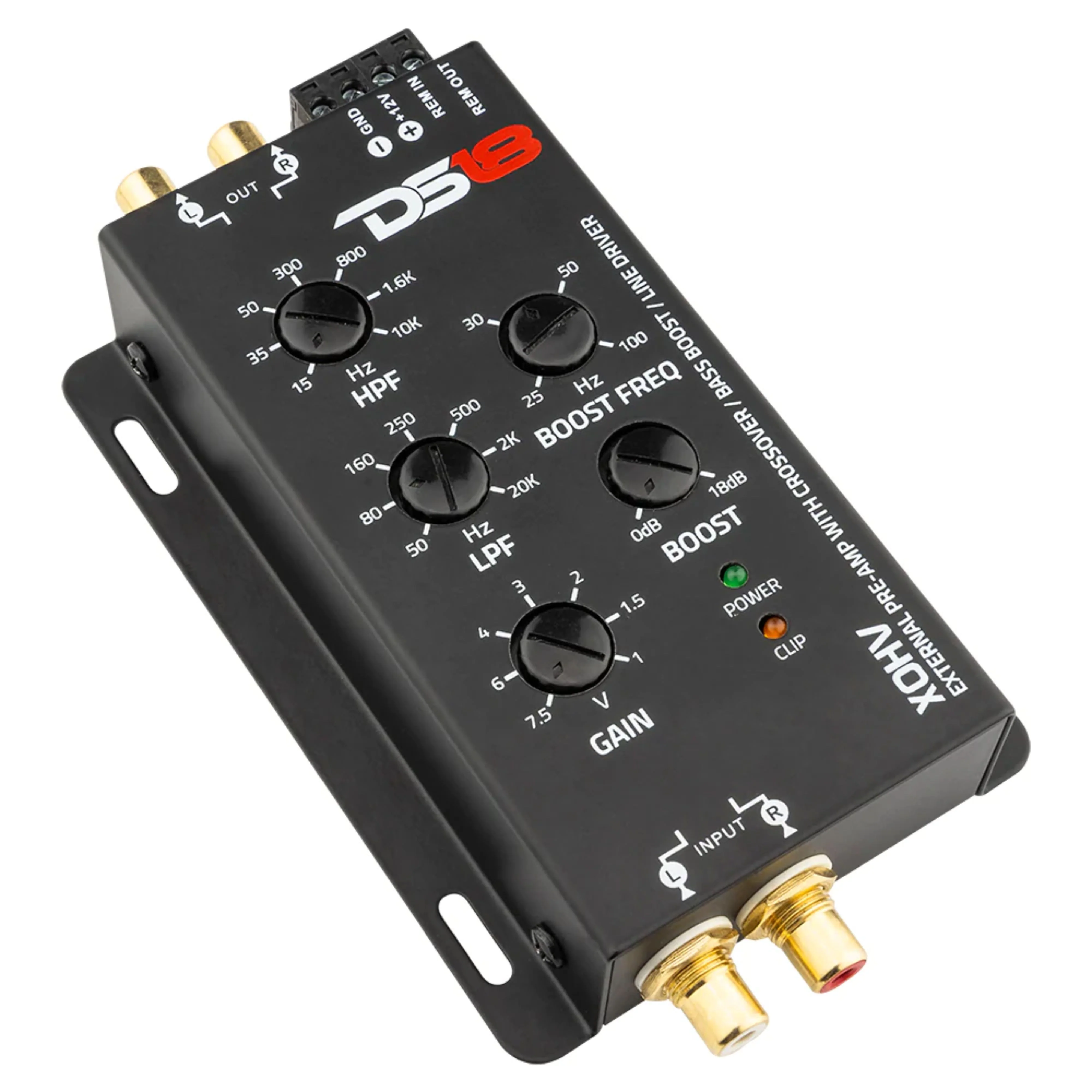

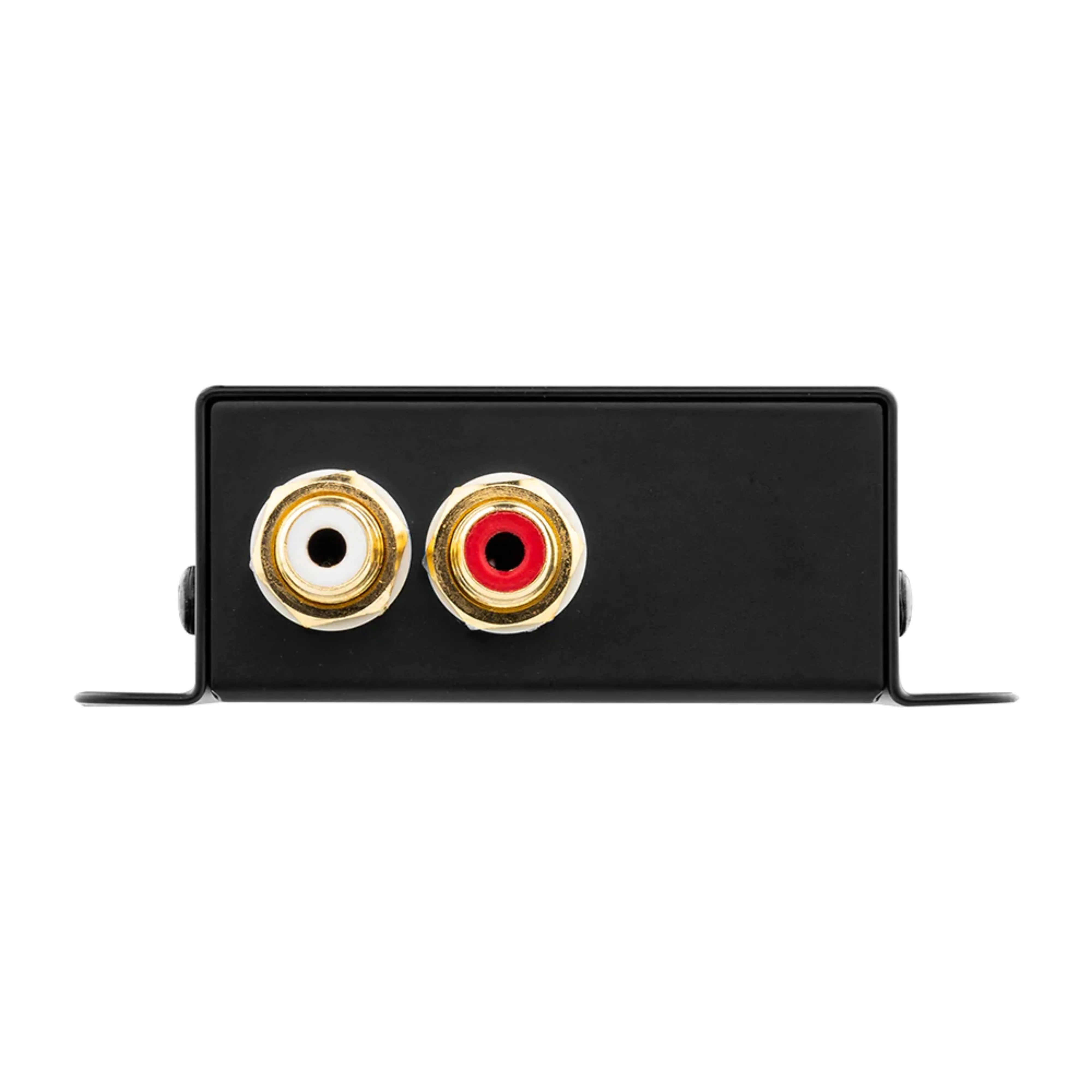

DS18 2 Channel Hi-Volt Pre-Amplifier and Crossover/Bass Boost Pro Car Audio XOHV

This listing includes:

(1) DS18 Two Channel Pre-Amplifier XOHV

Increase your systems signal to line-level with DS18’s XOHV!

This 2-channel Pre-Amplifier has a built-in Crossover and selectable bass boost frequency with high volt input and output! The XOHV is designed to work in line with H-V amplifiers that usually don’t have these features equipped.

This Pre-Amplifier’s 2-Channel capabilities allow you to connect 2 or more amplifiers for insane results!

Increase your signal strength today with the XOHV!

Highlights

• Perfect for Hi-Volts Amplifiers


• Hi-Volt RCA Input and output up to 9 volts


• Bass Boost adjustable on frequency and intensity


• LED Clip indicator for input and output


• Input Gain Adjustable


• Low Loss Tiffany RCA


• Remote output with delay to avoid noises


• Input Ground Selectable (Ground/200 ohm/Insulated)

Great For

• Pro Audio


• Car Audio

Audio Specifications:

• Frequency Response: 15Hz - 20KHz


• Signal to Noise Ratio: 100 dB


• Total Harmonic Distortion (THD): 0.02%


• Stereo Signal Separation: 85dB


• Low Level Input Range: 1.6 - 9 Volts


• High Pass Filter Range: 15Hz - 10KHz


• Low Pass Filter Range: 50Hz - 20KHz


• Crossover Slope: 12dB/0ct


• Bass Boost Range: 0-18dB


• Bass Boost Frequency: 35-125Hz


• RCA Pre-Output Voltage at 12.8V: 7 Volts


• RCA Pre-Output Voltage at 14.4V: 9 Volts

Measurements:

• Overall Length: 5.9"


• Overall Width: 3.28"


• Overall Depth 1.1"


• Body Length: 4.86"


• Body Width: 2.42"


• Weight: 9.4oz
