• 7 band Equalizer (50hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz and 16kHz) with a cut / boost of 12dB (15dB subwoofer frequency)
• Subwoofer section with adjustable LPF crossover from 60Hz to 120Hz at 12dB / oct.
• Separate volume controls for main and subwoofer.
• Fader knob to easy Front and Rear output selection.
• RCA auxiliary input

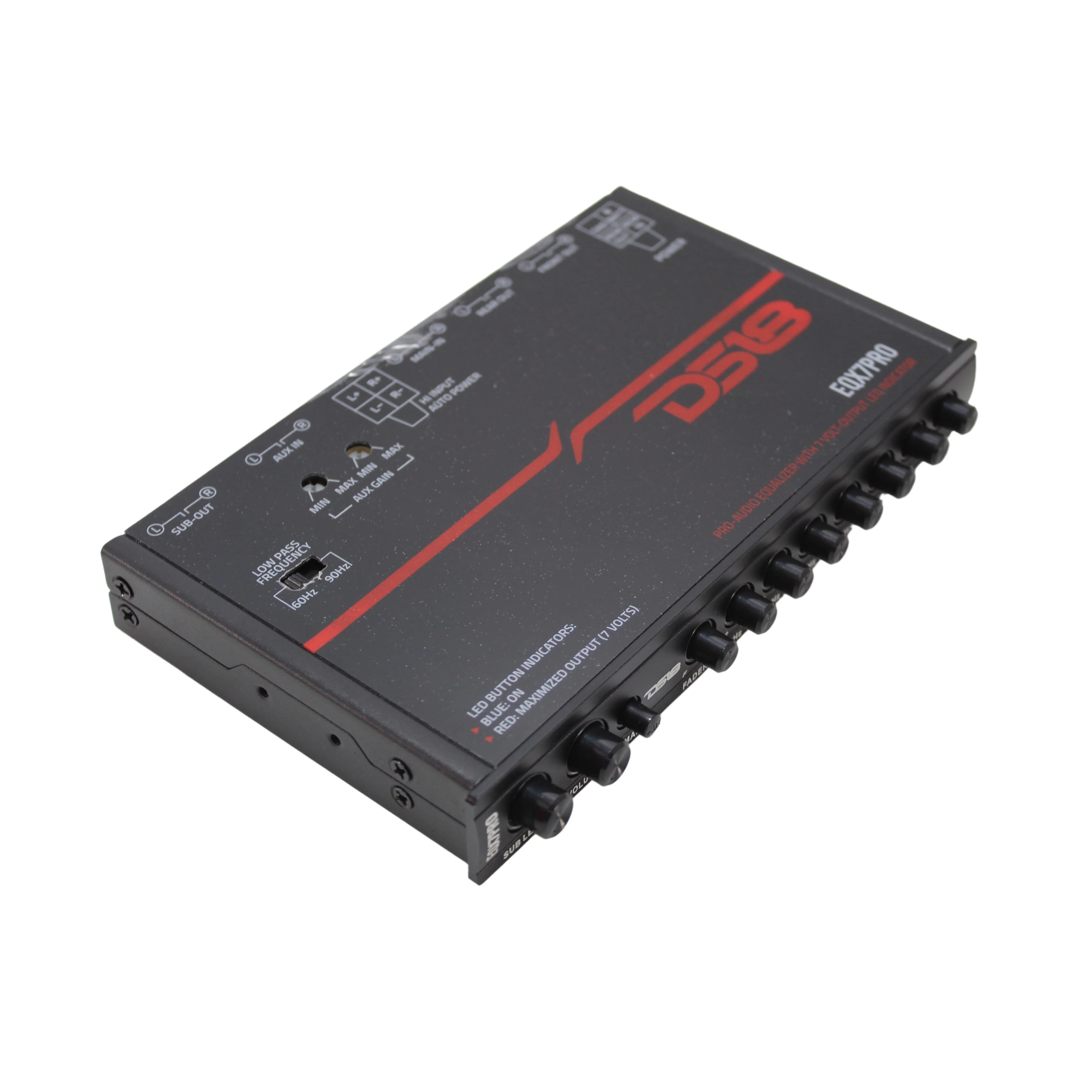

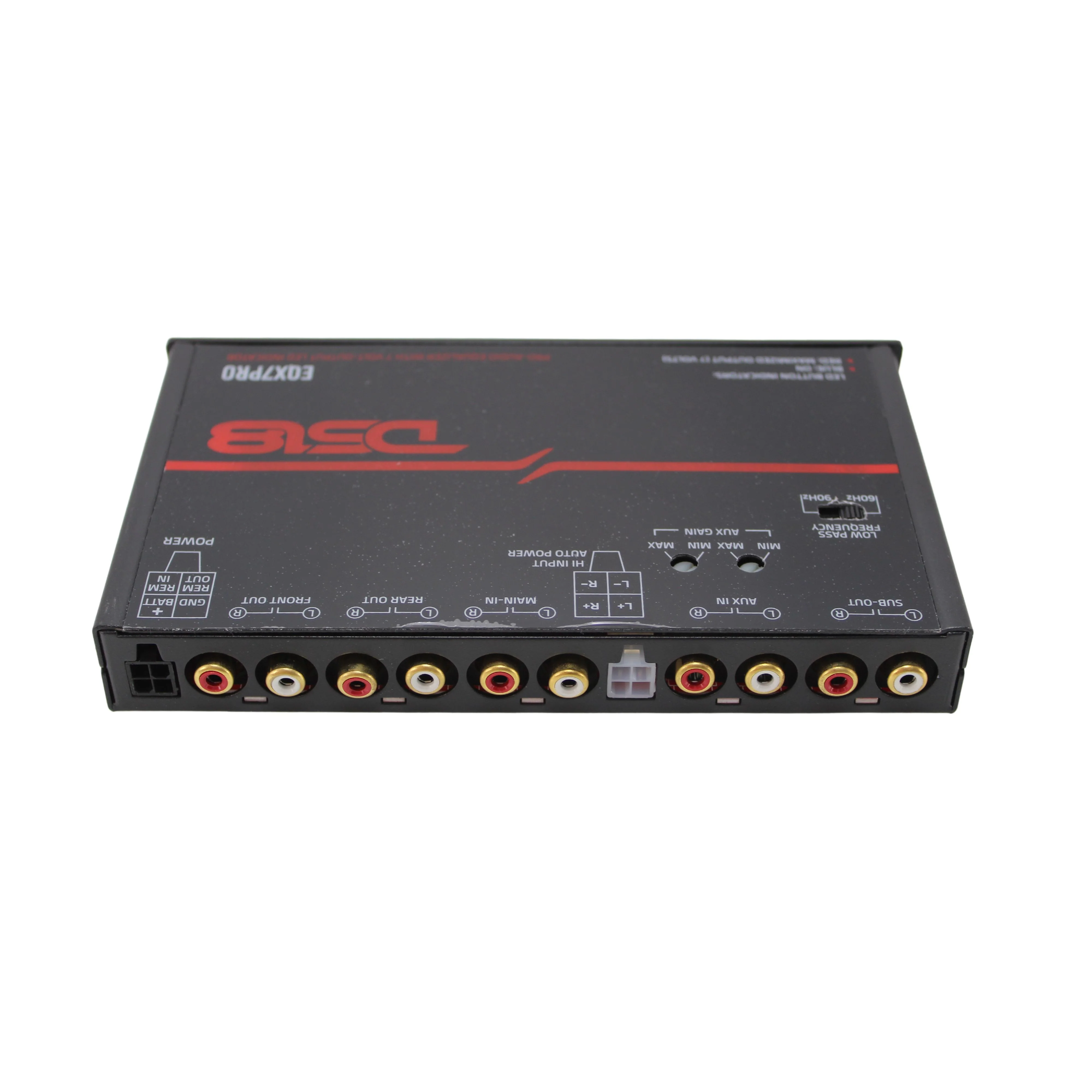

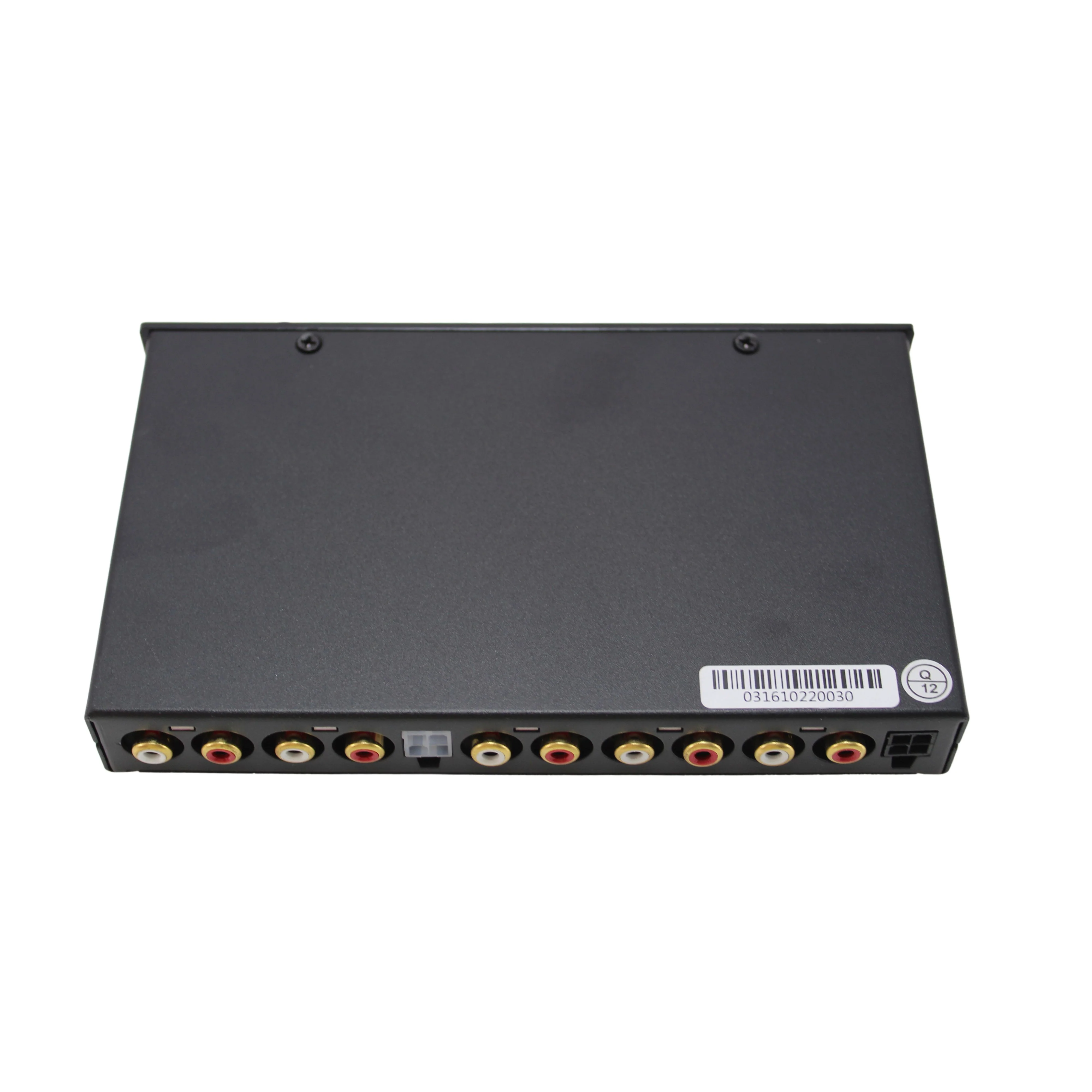

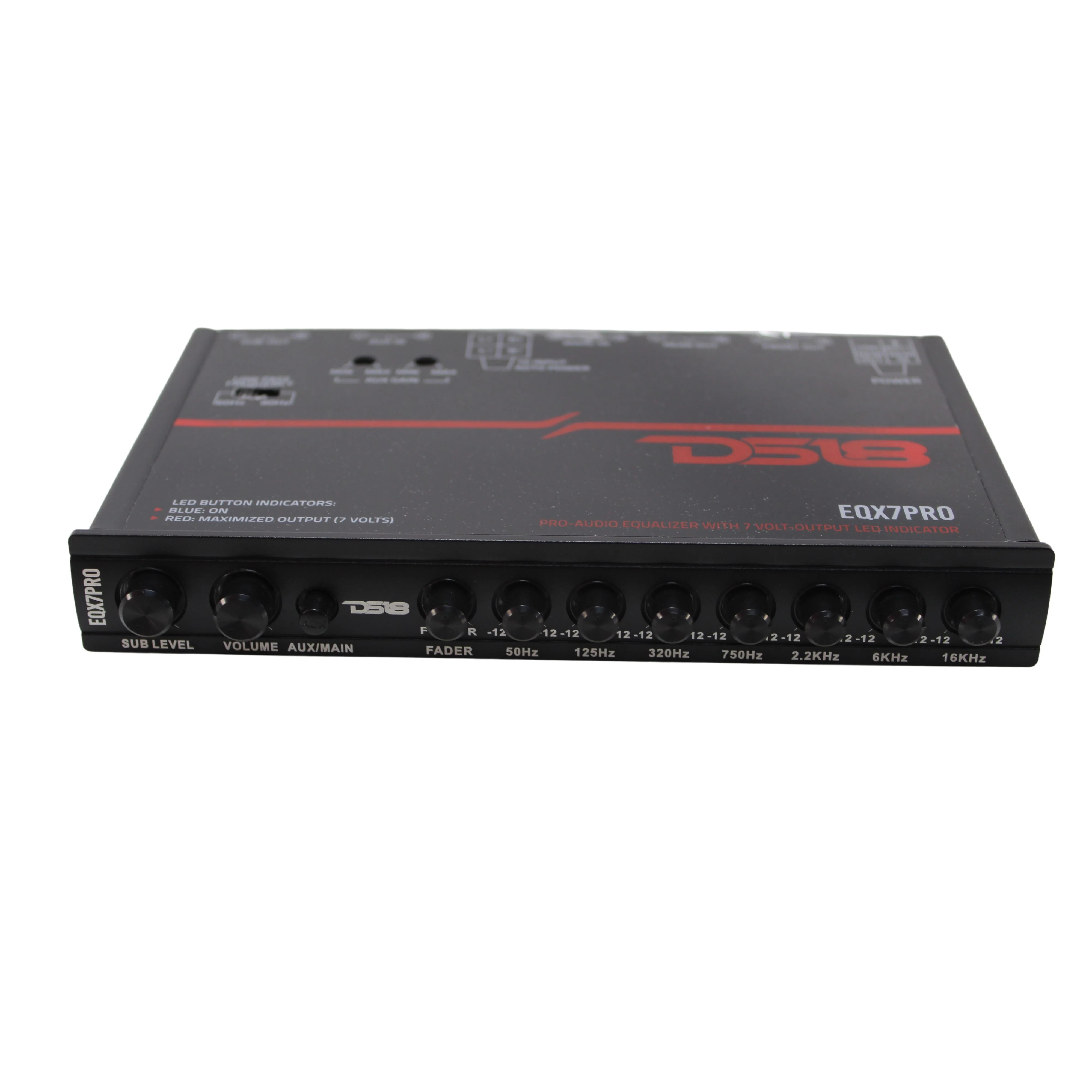

DS18 7 Band Pro Car Audio Graphic Equalizer Passive Subwoofer Crossover EQX7PRO

This Listing Includes:

(1) 7 Band Graphic Equalizer - DS-EQX7PRO

(1) Owner's Manuel

FEATURES:

• 7 band Equalizer (50hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz and 16kHz) with a cut / boost of 12dB (15dB subwoofer frequency)


• Subwoofer section with adjustable LPF crossover from 60Hz to 120Hz at 12dB / oct.


• Separate volume controls for main and subwoofer.


• Fader knob to easy Front and Rear output selection.


• RCA auxiliary input


• Extended frequency response from 10Hz to 30kHz with exceptional sound quality.


• Blue Backlit with Red 7v output indicator


• High Level Speaker Input


• Auto Turn-on: Hi-Level Input


• Remote Turn on Input/Output

SPECIFICATIONS:

• Graphic Center Frequencies: 50hz, 125Hz, 320Hz, 750Hz, 2.2kHz, 6kHz and 16kHz


• Boost / Cut: 12dB (15dB subwoofer frequency)


• S/N Ratio: 100dB


• Frequency Response: 10hz-30khz +/- 1dB


• Maximum Output Voltage: 8V


• T.H.D: 0.005%


• Input Sensitivity: 50mV - 3V


• Head Room: 20dB


• Input Impedance: 20K OHMS


• Output Impedance: 2K OHMS


• Stereo Separation: 82dB/1KHz


• Operating Voltage: 11V-15V

DIMENSIONS:

• Length: 7"


• Width: 4.4"


• Height: 1.18"
