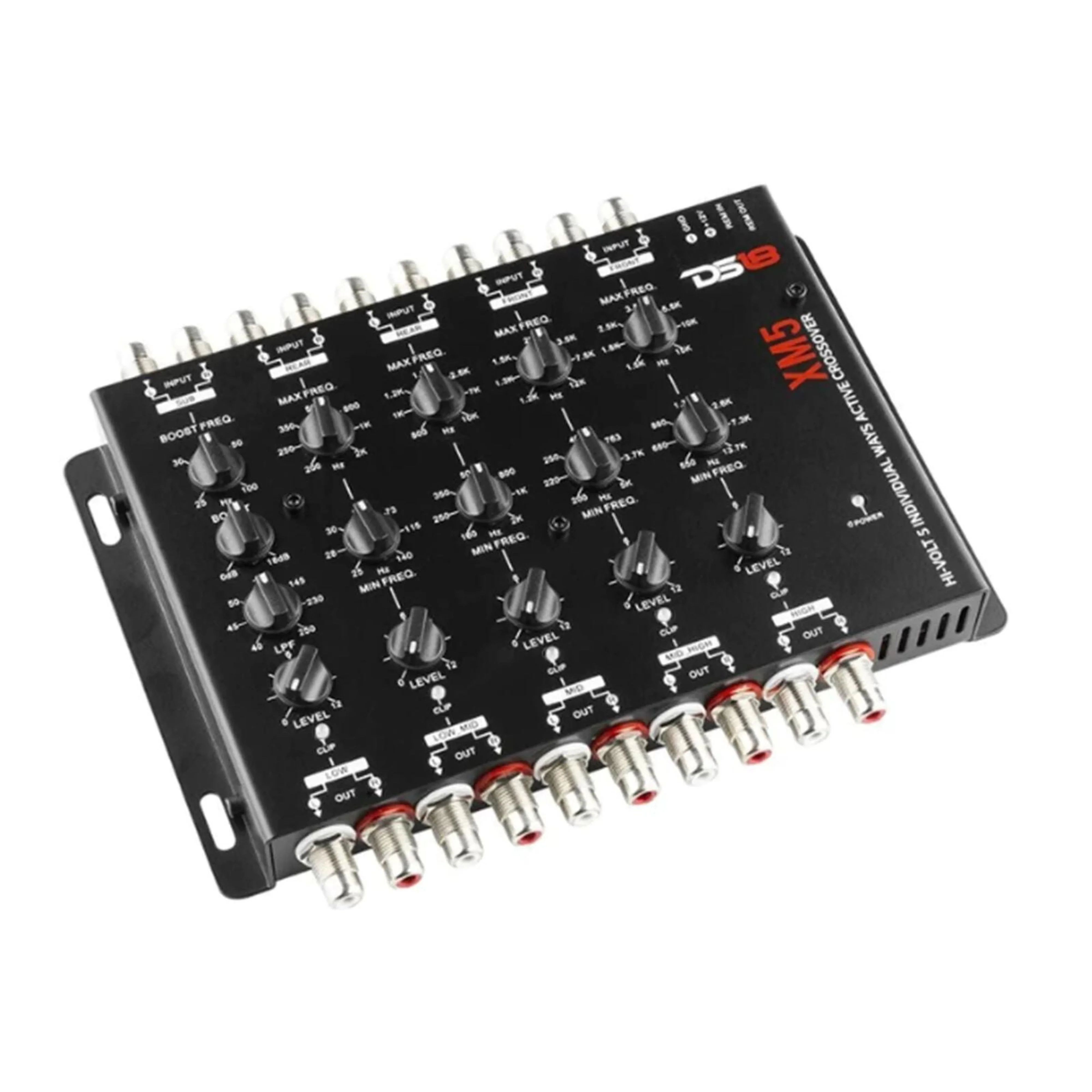

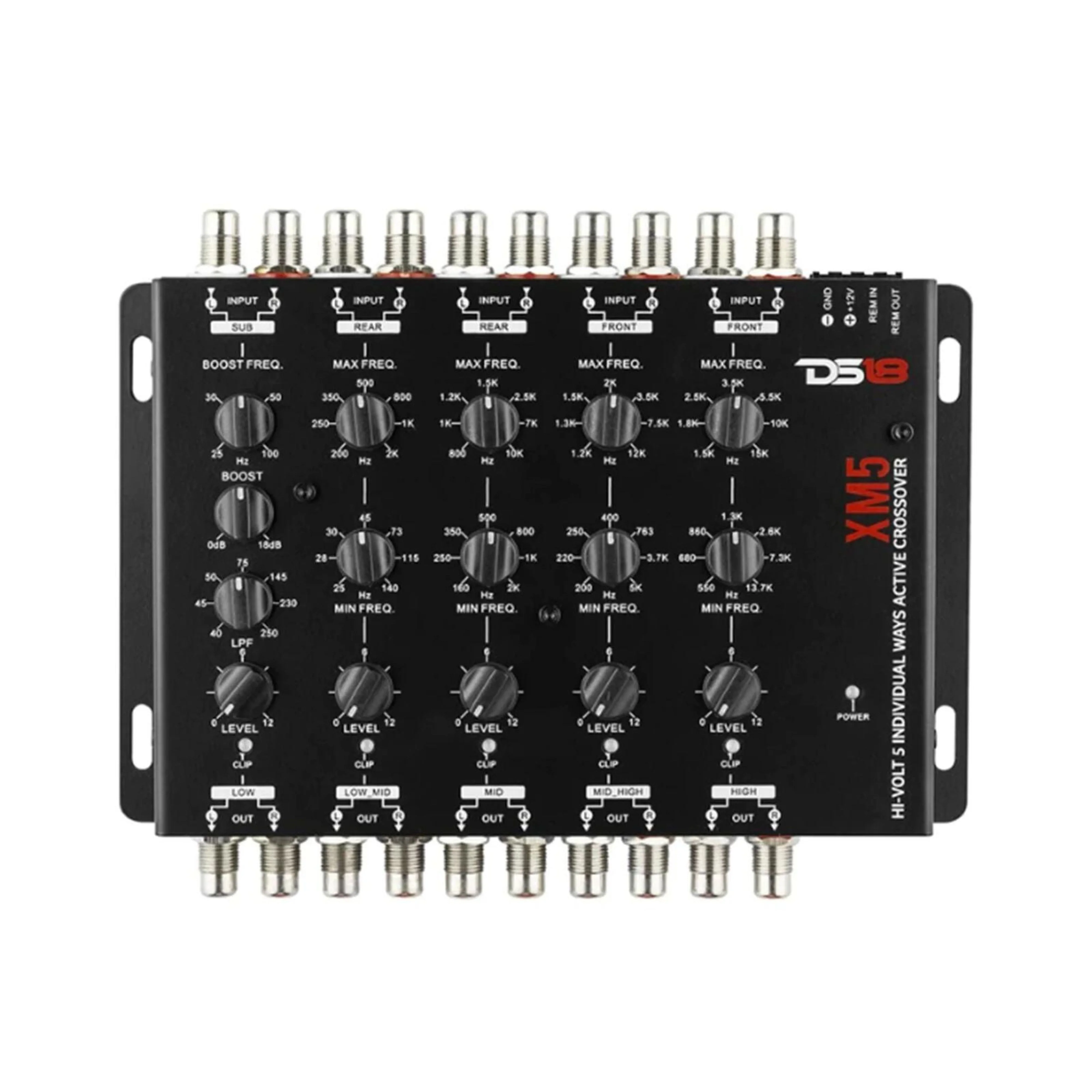

DS18 High Volt 5 Way Active Crossover with Bass Boost XM5

New from DS18 the XM5. It offers filters for 5 ways with variable adjustment, output level control at each way as well as adjustable BASS Boost & Bass Frequency.

This Listing Includes:

(1) Crossover

Features:

- Surface mount component technology

- FR4 two layers circuit trace design

- High output levels and low harmonic distortion (T.HD.)

- Extremely low standby current consumption

- Short/High & low voltage multi protections

- Quick Disconnect DC-DC converter switch power supply

Specifications:

LOW Way (Mono):

Cutoff Frequency (LPF): Variable 40-250 Hz (-24dB/Octave)

Boost Frequency: Variable 25-100 Hz

Bass Boost: Variable 0-18 dB

LOW_MID WAY (Stereo):

Minimum Cutoff Frequency: Variable 25-140 Hz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 200-2KHz (-12dB/Octave)

MID WAY (Stereo):

Minimum Cutoff Frequency: Variable 160-2KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 800-10KHz (-12dB/Octave)

MID_HIGH WAY (Stereo):

Minimum Cutoff Frequency: Variable 200-5KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 1.2-12KHz (-12dB/Octave

HIGH WAY (Stereo):

Minimum Cutoff Frequency: Variable 550-13.7KHz (-12dB/Octave)

Maximum Cutoff Frequency: Variable 1.5-15KHz (-12dB/Octave)
