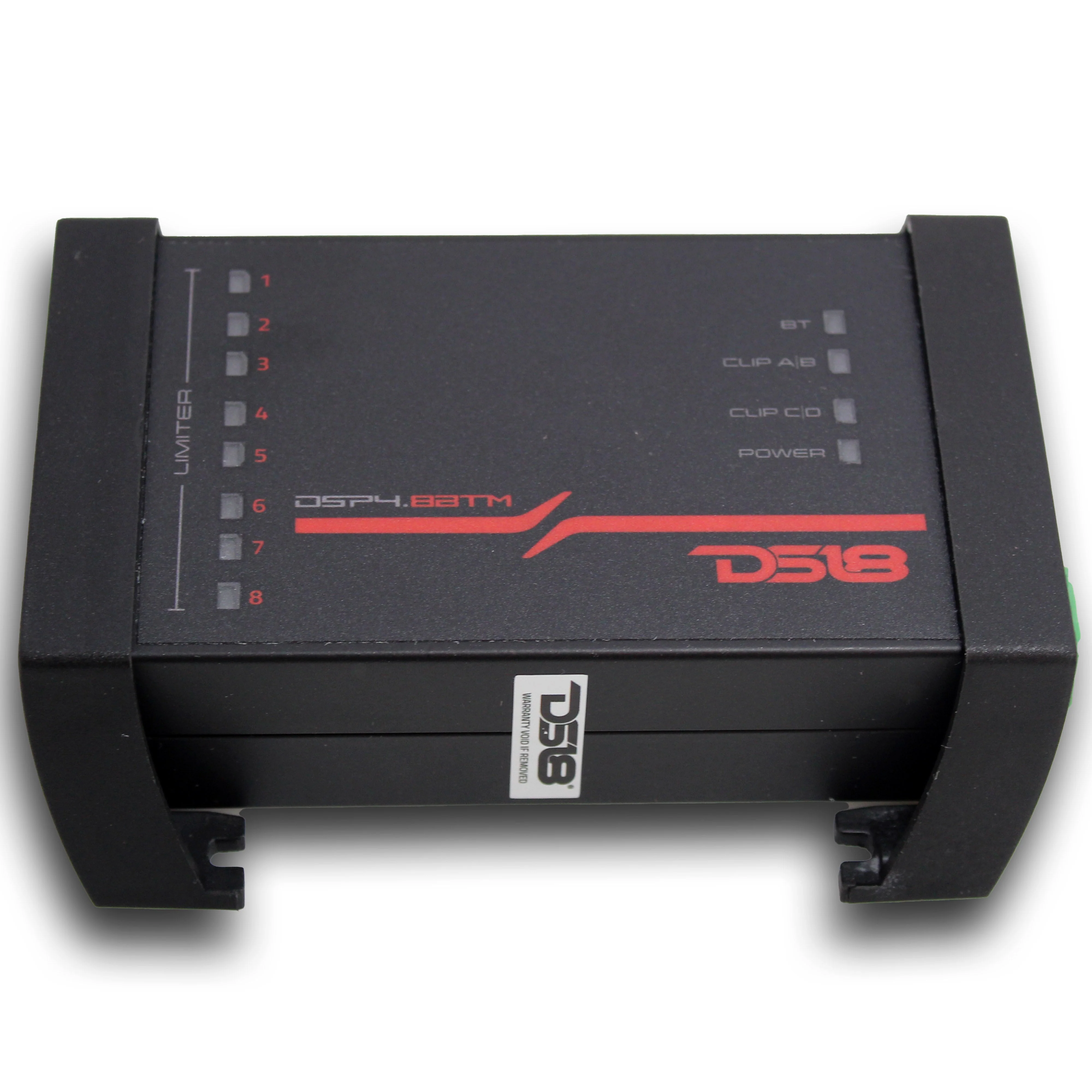

Take control of your audio system with the DS18 DSP4.8BTM Digital Sound Processor! Now you can control every aspect of your audio system with ease with precise filtering settings. Download the app from Google Play Store or Apple Store for a multitude of tuning options.

SPECIFICATIONS

Routing Channel

-Routing Options: A / B / C / D / A+B / A+c / B+C

Gain:

- General Gain: -53 to 0dB

- Channel Gain: -33 to 9dB

FREQUENCY CUTS

- Cuttoff Frequency: 20Hz to 20kHz

- Types of Cuts: Linkwitz- Riley / Butter worth / Bessel

- Attenuations: 6 / 12 / 18 / 24 / 36 / 48bB/OCT

INPUT EQUALIZER

- Equalization Bands: 15 Bands

- Gain: -12 to +12dB

CHANNEL EQUALIZER

- Equalization Bands: 8 Parametric per Channel

- Gain: -12 to +12dB

- Q Factor: 0.6 to 9.9

TIME ALIGNMENT (DELAY)

-Time: 0 to 18.95ms

- Distance: 0 to 6500mm

LIMITER

-Threshold: -54 to +6dB

- Attack: 1 to 200ms

- Release: 1 to 988ms

POLARITY INVERSION

-Phase: 0 or 180

MEMORIES (PRESETS)

- Memories: 3 - 100% Configurable

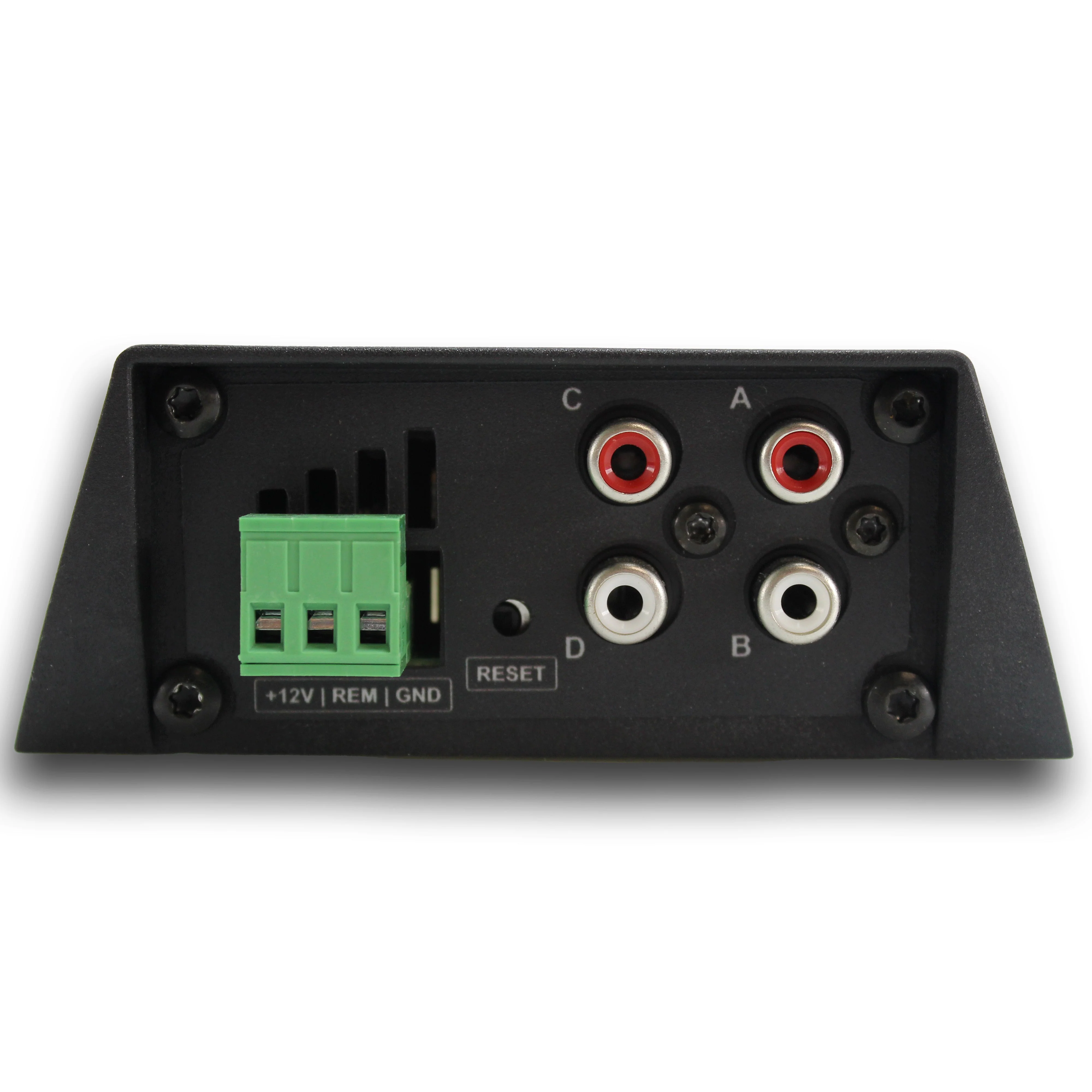

INPUT A/B/C/D

- Input Channels: 4

-Type: Electronically Symmetrical

- Connectors: RCA

- Max Input Level: 4,00Vrms

- Input Impedance: 100K

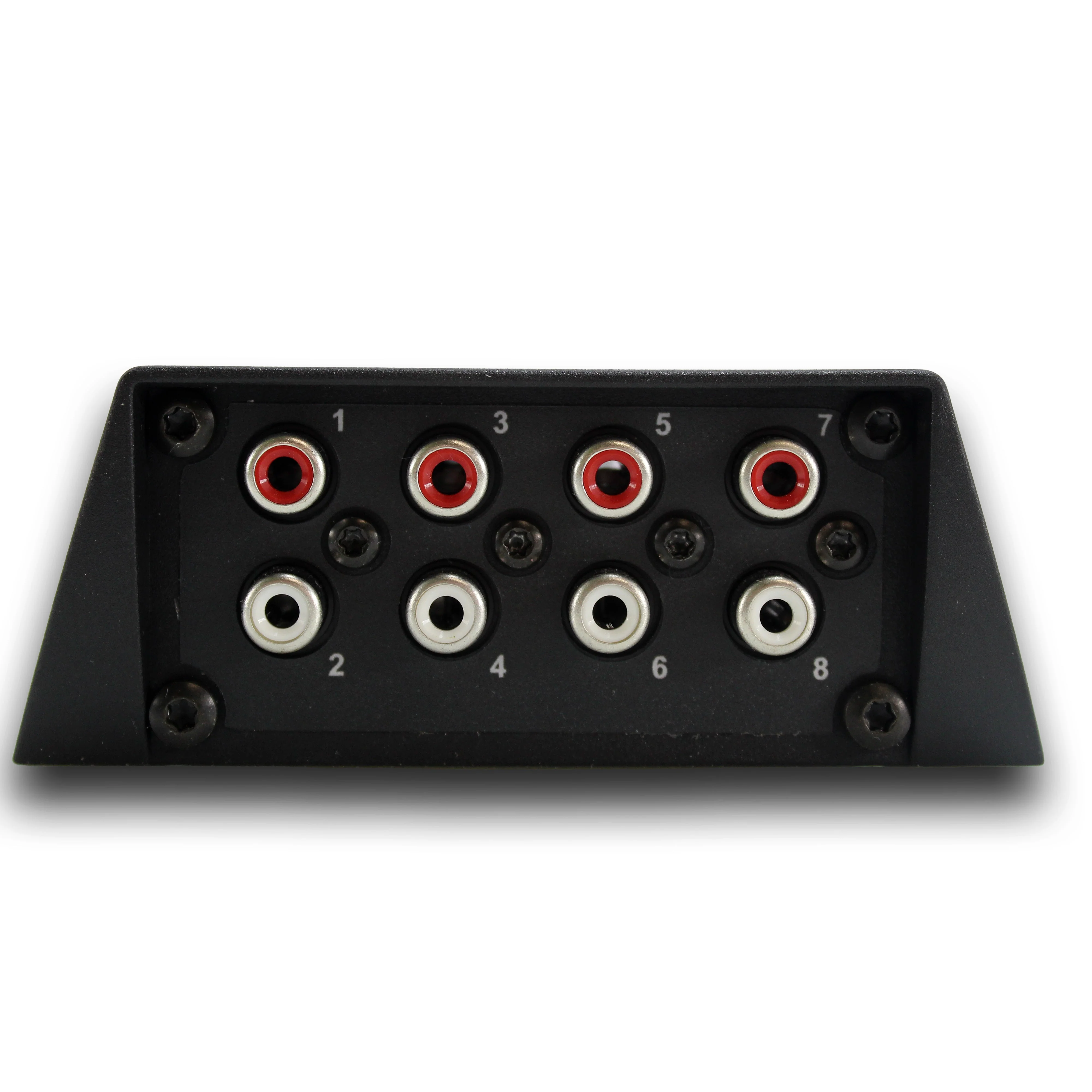

OUTPUT

- Output Channels: 8

- Connectors: RCA

- Type: Electronically Symetrical

- Max Input Level: 3,50Vrms

- Output Impedance: 100
