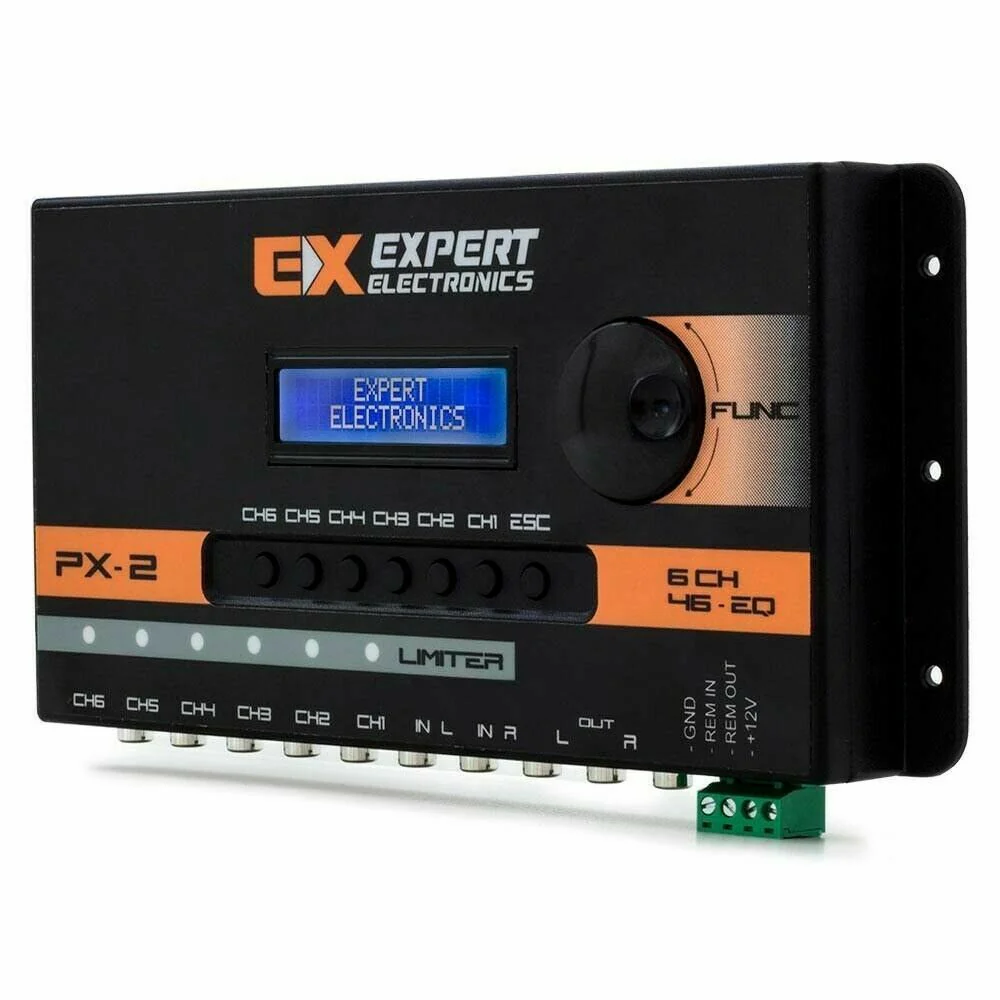

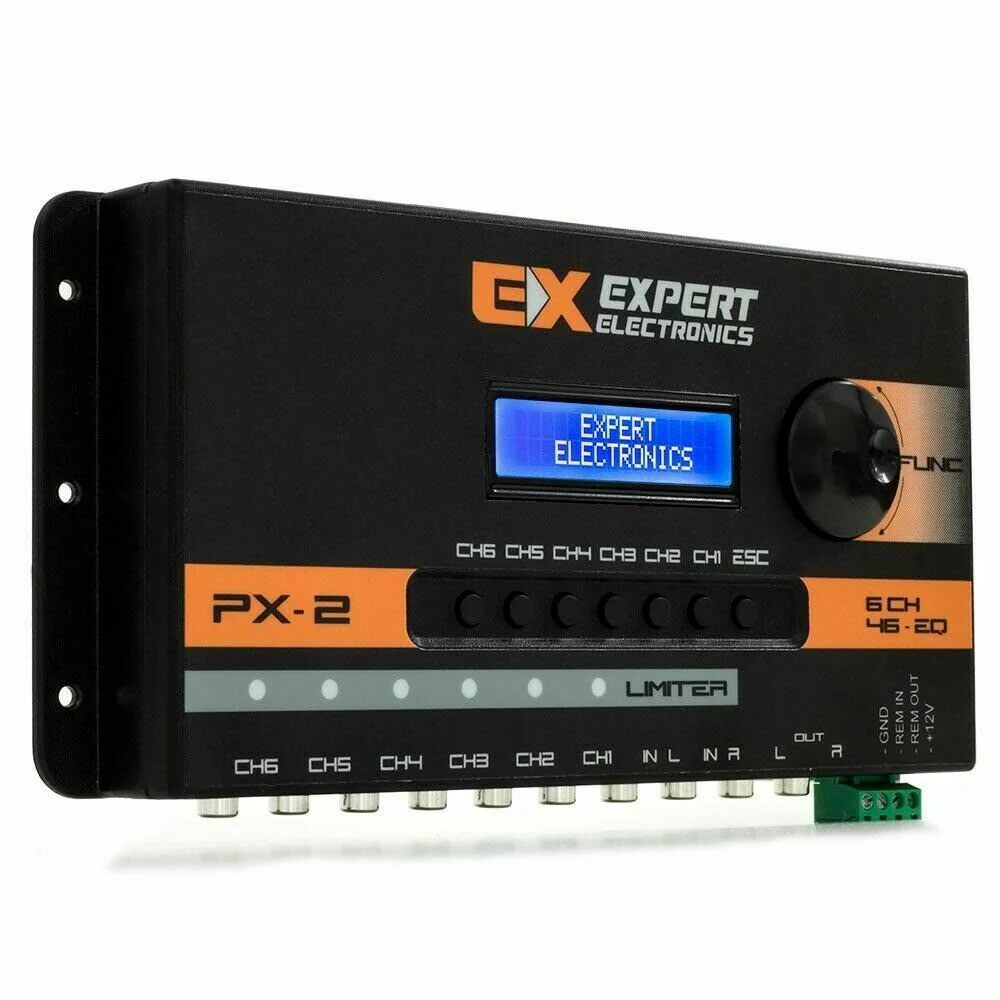

Expert Electronics 6 CH Equalizer 48 Band Sound Processor PX2

This Listing Includes:
(1) Equalizer

Features:
- Crossover with 4-way stereo or 8 mono outputs;
- Equalizer with 15 adjustable bands;
- Frequency cutoffs of 12, 24, and 48db;
- Delay of up to 10ms, allowing to correct any sound lag (cancellation);
- Hi-Pass Filter;
- Low Pass Filter;
- Attenuation filter;
- All functions are accessed by intuitive display;
- Digital Operation;
- Micro processed;
- 12V power supply without the use of sources.

Specifications:
Equalization (Frequencies): 40/63/80/100/160/400/630 / 1K / 1,6K / 2,5K / 4K / 6,3K / 10K / 16KHz
Equalization (Gain): -10dB / + 10dB
HIPASS Filter: 20 - 22 KHz
LOWPASS Filter: 20 - 22 KHz
Filter Attenuation: 12/24/48 (dB / 8)
MUTE: -100dB
Gain: -6dB / + 6dB
Phase: 0 / 180
Delay: 0 - 10ms ( 0 - 340cm)
Signal Input Sensitivity: 0.1 - 5 Vpp (differential)
Signal Output: 0 - 8 Vpp (differential)
Input Impedance: 100 KOhms
Output impedance: 82 Ohms
ADC SNR: 100 dB
DAC SNR: 104 dB
Resolution: 24 Bit
Sampling Frequency: 48 KHz

Dimensions: 120x250x30mm
