• Expert Electronics PX-8 Connect DSP – Flagship 2-in / 8-out digital sound processor with pro-level tuning features
• 2 Inputs / 8 Outputs – Built for advanced multi-channel systems and full control setups
• 46-Band EQ Per Channel – Extreme tuning precision for detailed frequency shaping
• 24-bit / 48kHz Processing – Clean, high-resolution audio signal path

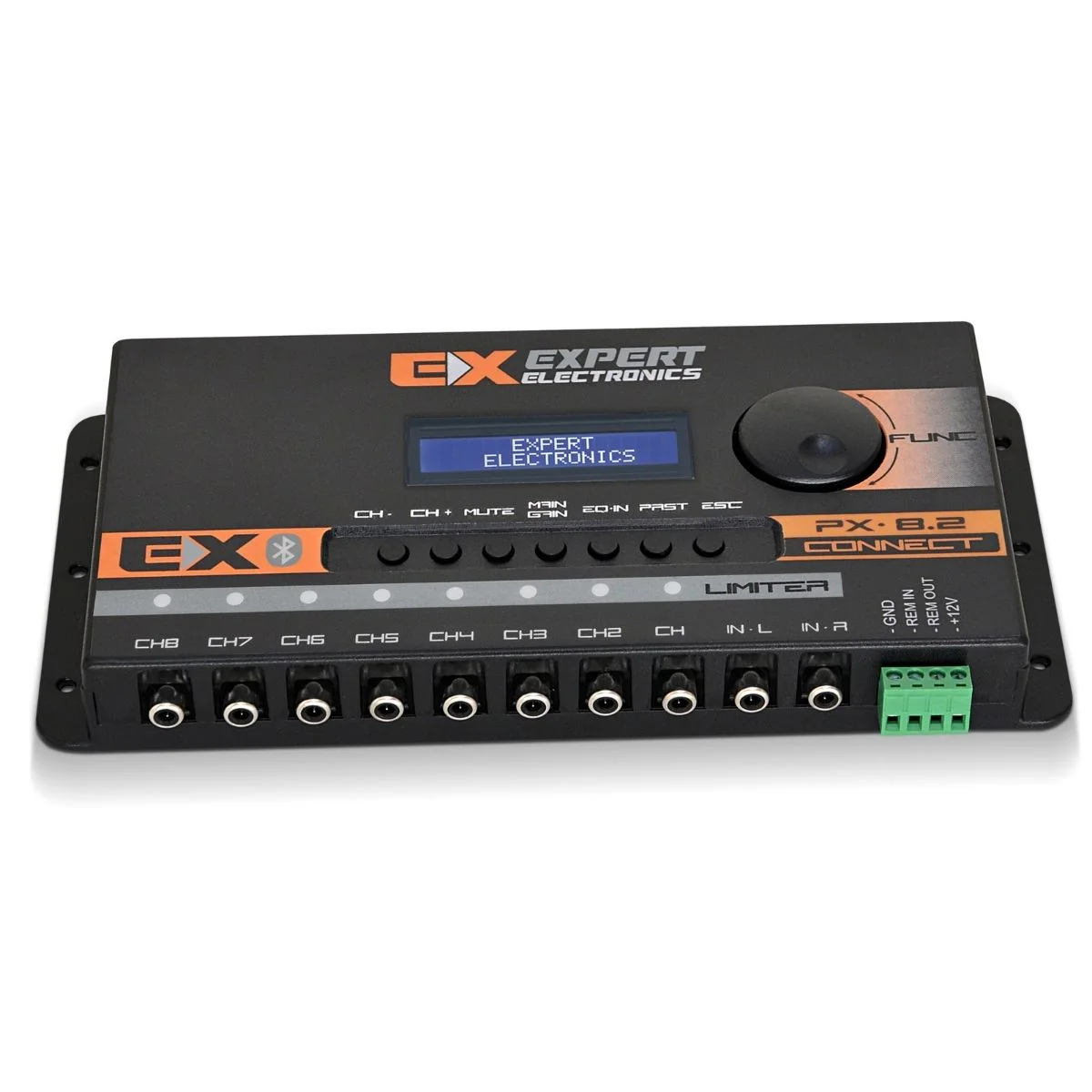

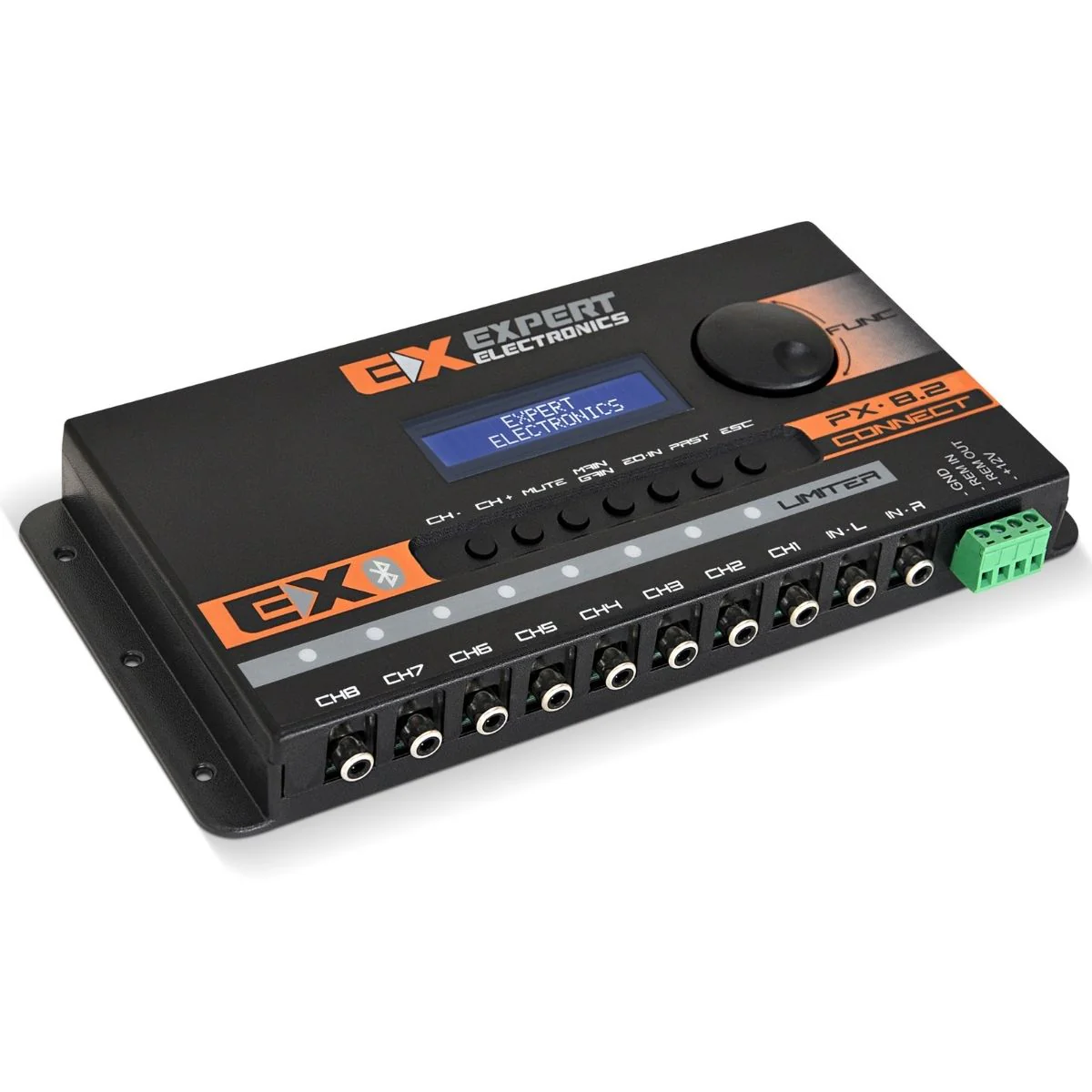

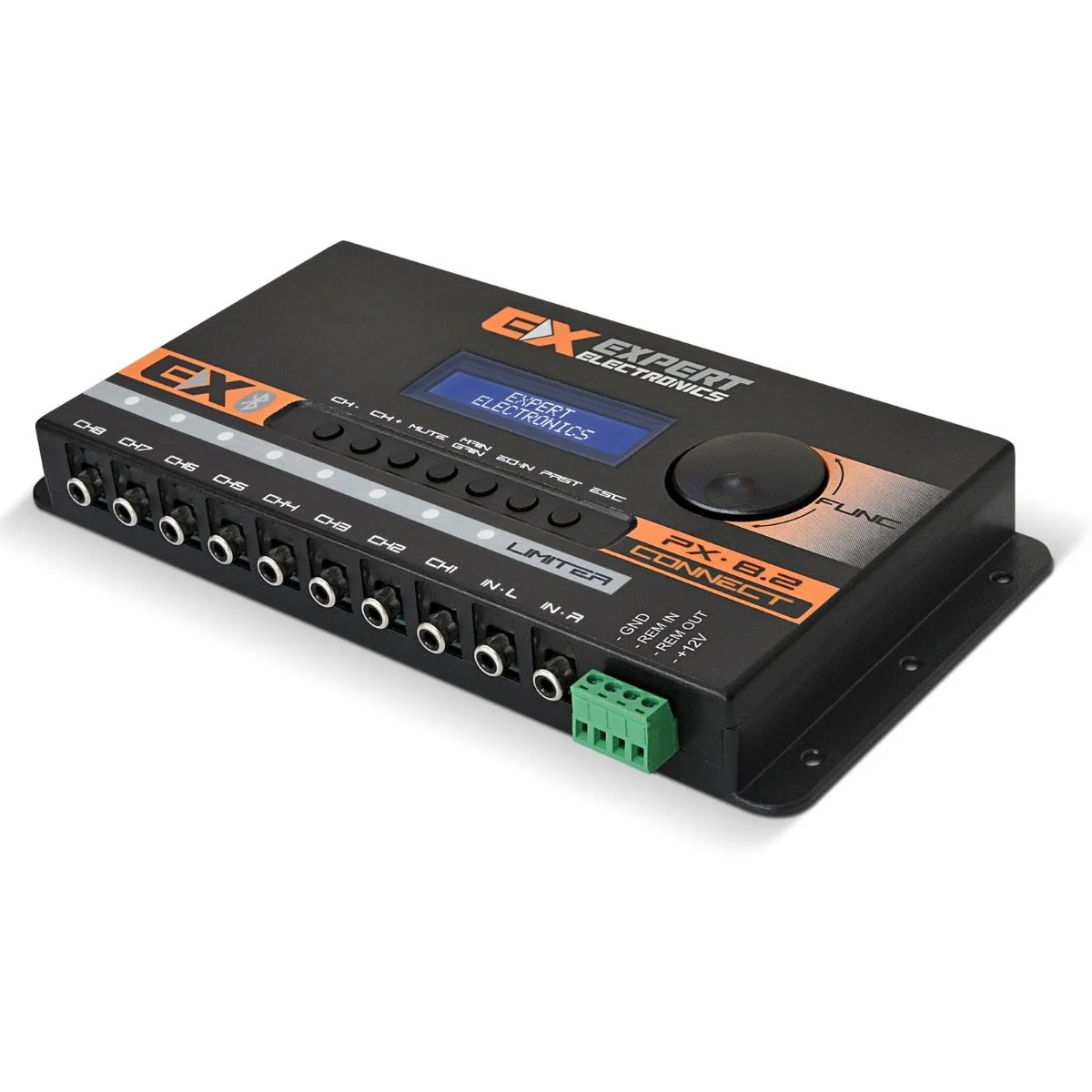

Expert Electronics PX-8 Connect Bluetooth + App DSP 2 in / 8 Out

This Listing Includes:

• (1) Expert Electronics PX-8 Connect Bluetooth + App DSP 2 in / 8 Out

Take total control of your sound system with the Expert Electronics PX-8 Connect. This 8-channel DSP (Digital Signal Processor) features Bluetooth connectivity, app control, and precision tuning for the serious audio enthusiast. Designed with 2 inputs and 8 outputs, the PX-8 Connect offers powerful processing, ultra-low distortion, and real-time system management - all in a compact form factor.

With 24-bit resolution, a 48kHz sampling frequency, and a 1.08ms latency, this processor delivers studio-grade sound clarity to your vehicle or custom build. Use the mobile app or onboard display to tweak crossovers, EQs, time alignment, and more with ease.

Features:

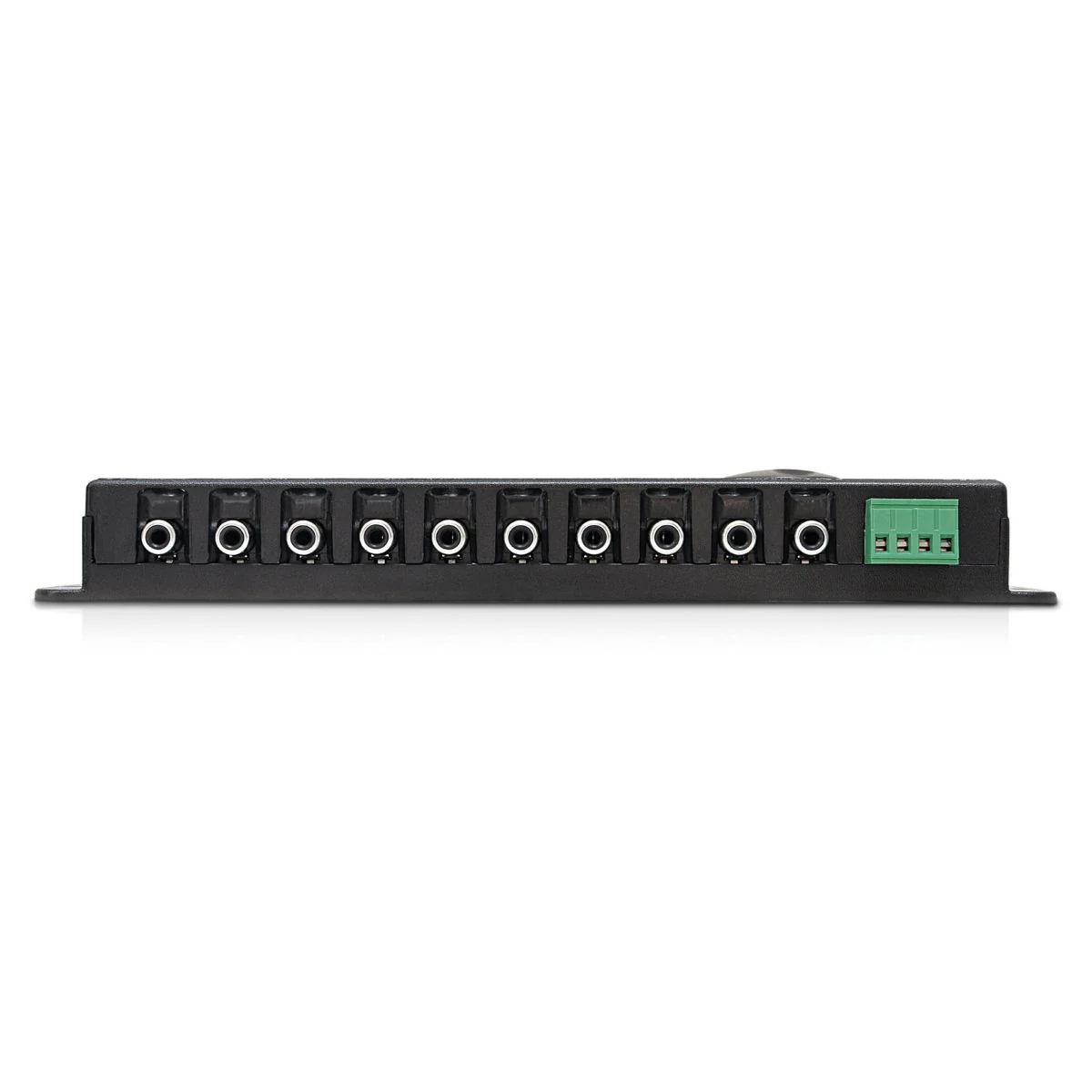

• 2 RCA inputs / 8 RCA outputs - perfect for custom multi-channel systems


• Bluetooth connectivity for seamless wireless tuning


• App control (iOS/Android) for real-time system management


• Built-in display for local setup and monitoring


• Studio-grade 24-bit resolution and 48kHz processing


• 100dB signal-to-noise ratio for clean, dynamic audio


• Compact and lightweight—ideal for stealth installs

Specifications:

• PRO-8: Connect Processor


• Input: 2


• Channel: 8


• Type: Unbalanced


• Connection: RCA


• Max input level: 4Vpp (1,4 Vrms)


• Input Impedance: 47 ohm


• Bluetooth: yes


• Display: yes


• APP: yes

OUTPUTS (1, 2, 3, 4, 5, 6, 7, 8)

• Type: Unbalanced


• Connection: RCA


• Max output level: 2 Vrms


• Output Impedance: 470 Ohms

TECHNICAL DATA

• Resolution: 24 Bits


• Sampling Frequency: 48Khz


• Processing Latency: 1,08ms


• Frequency Response: 15Hz to 22KHz (-1dB)


• THD+N max: 0.01%


• Signal to noise ratio: 100dB

SUPPLY

• Voltage: 10~15 Vdc


• Consumption: 300 ma (5w)


• Fuse: 2A


• Limiter: RMS

Dimensions:

• Length: 9.9 inches


• Width: 4.7 inches


• Height: 1.2 inches


• Weight: 15 oz

Box Measurements:

• Length: 10 in


• Width: 5.25 in


• Height: 1.6 in


• Weight: 0.85 lbs
