• 2 Inputs / 4 Outputs: Ideal for front-stage or simplified audio system builds with flexible configuration
• 24-Bit / 48kHz Audio Processing: Delivers clean, professional-grade sound performance
• Compact and Lightweight: Measures just 6 x 4 x 1.8 inches, perfect for tight installations
• 14-Band EQ Per Channel: Customize frequencies for optimal system tuning
• Built-In RMS and Peak Limiters: Helps protect amplifiers and speakers from distortion or overload

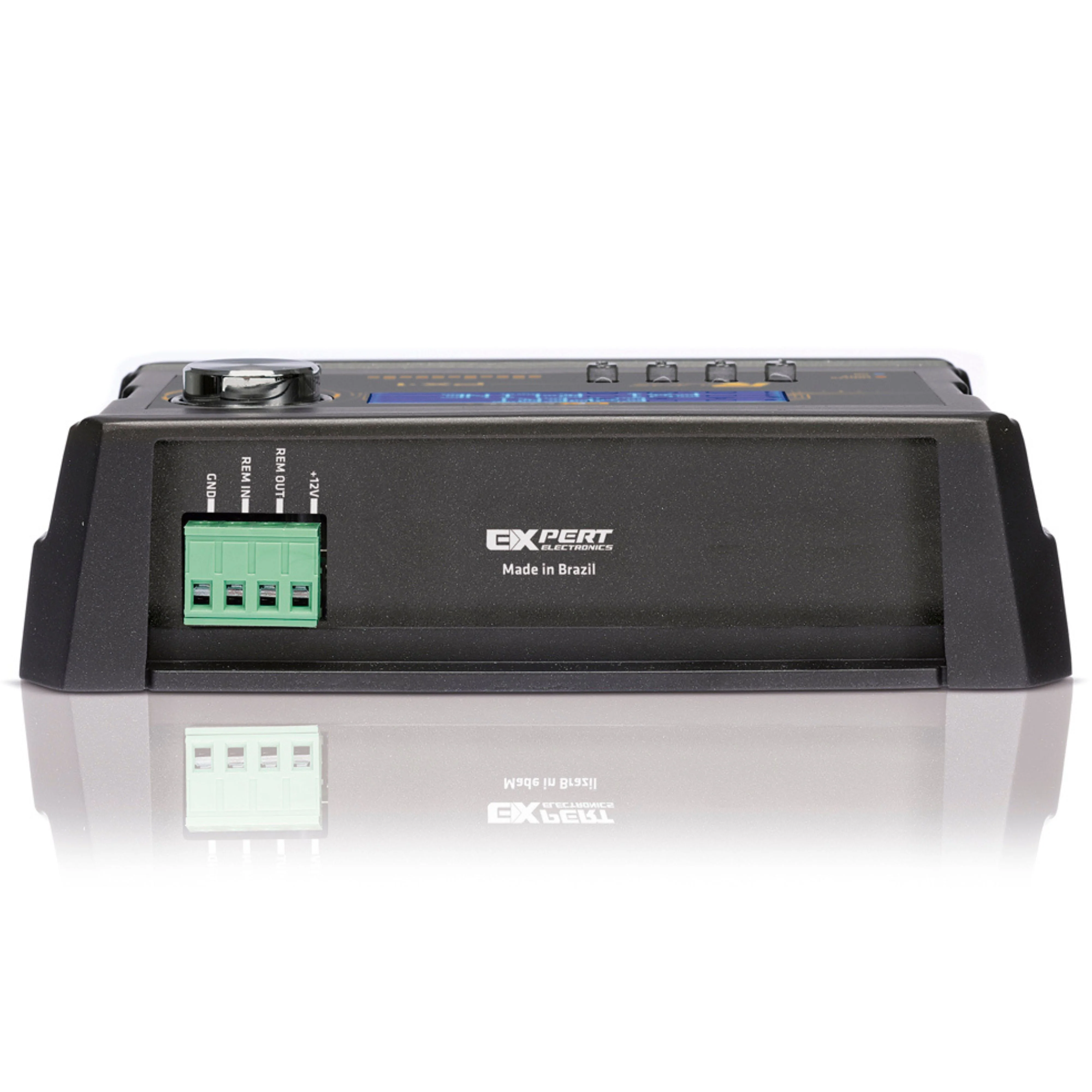

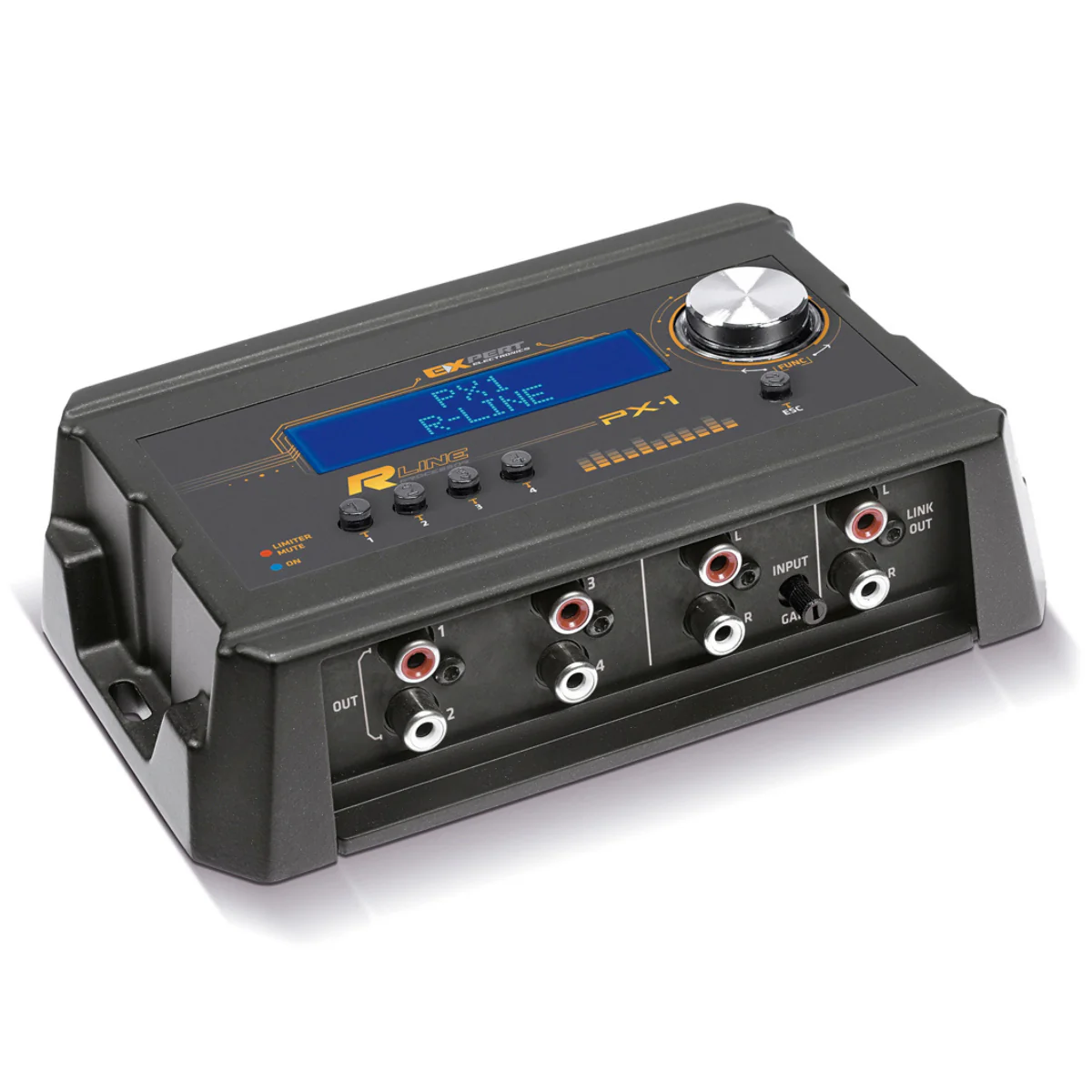

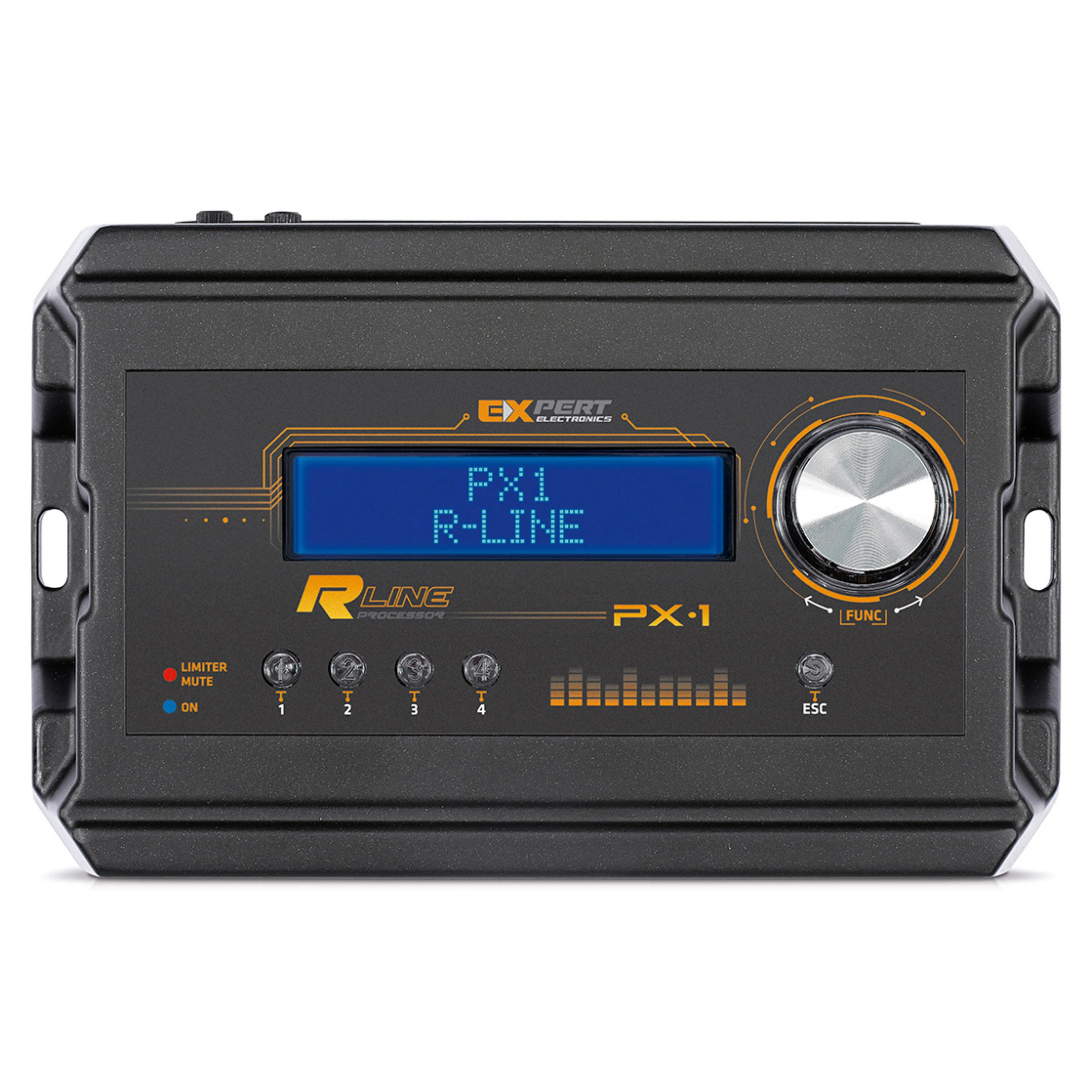

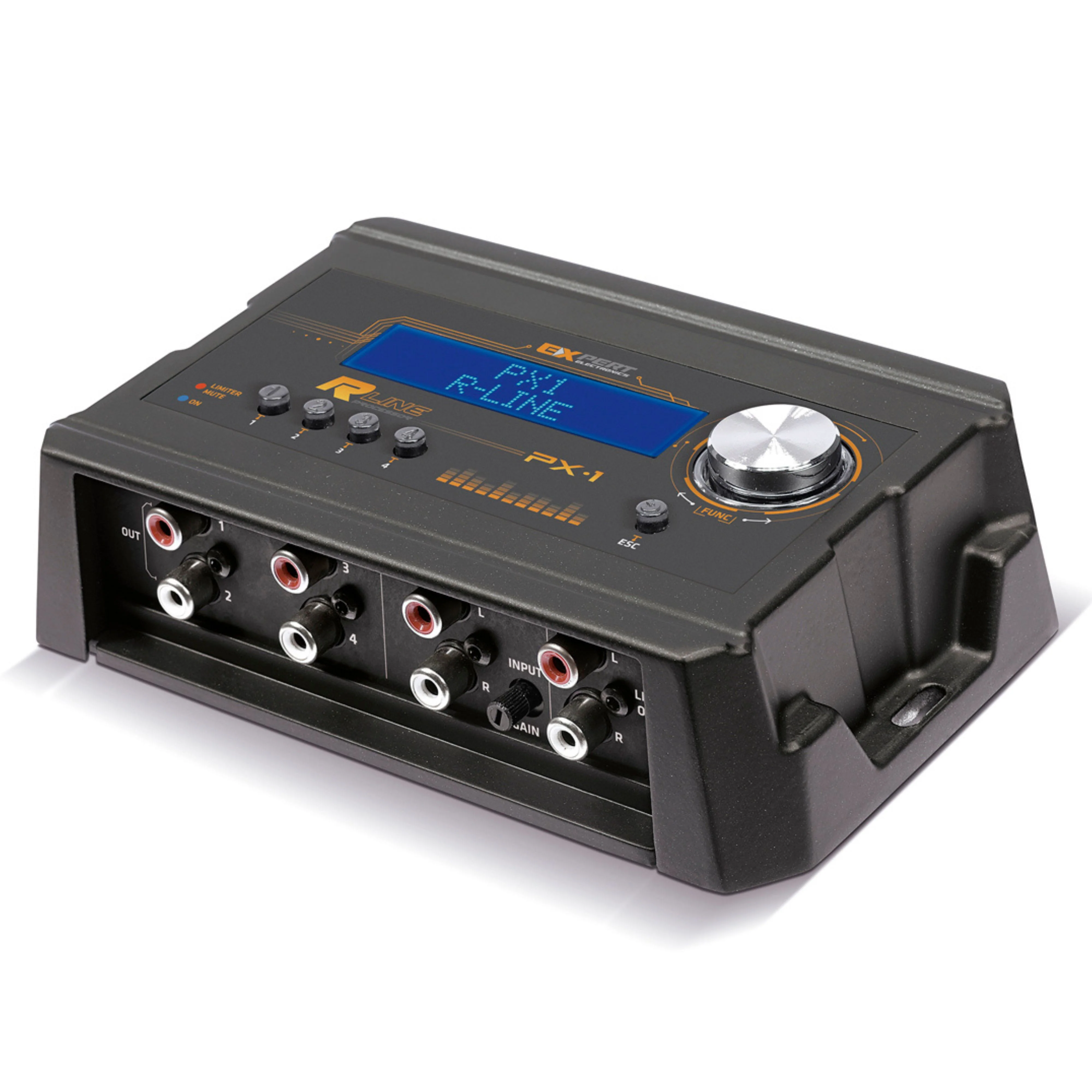

Expert Electronics R-Line PX1 Digital Sound Processor 2 In / 4 Out 24bits/48khz

This Listing Includes:

• (1) Expert Electronics R-Line PX1 Digital Sound Processor 2 In / 4 Out 24bits/48khz

Enhance the clarity and precision of your car audio system with the Expert Electronics PX1-R-LINE Digital Sound Processor. Designed for professional sound tuning, this DSP features 2 inputs and 4 configurable outputs, making it ideal for focused builds like front-stage speaker tuning or simple amplifier setups.

With high-resolution 24-bit / 48kHz signal processing and a 14-band EQ per channel, the PX1 gives you total control over your audio frequencies. Built-in RMS and Peak limiters help protect your speakers while maintaining clean output. The integrated display allows for quick, direct adjustments without needing a Bluetooth connection or app.

Compact and install-friendly, the PX1-R-LINE is a reliable solution for anyone who prefers wired control with precision sound shaping in a small package.

Features:

• 2 audio inputs and 4 fully configurable output channels


• 24-bit / 48kHz high-resolution signal processing for clean and accurate audio


• 14-band EQ per channel for detailed tuning


• RMS and Peak limiters to protect your system at high volumes


• Built-in display for direct control—no Bluetooth or app required


• Compact 6 x 4 x 1.8 inch size fits easily in tight install spaces


• Ideal for clean front-stage setups or simplified systems

Specifications:

• Pxâ€1: RLINE – 24bits/48khz


• Input: 2


• Channel: 4


• EQ IN/CH: 14


• Limiter: RMS and Peak


• Bluetooth: no


• Display: yes


• APP: no

Dimensions:

• Length: 6 inches


• Width: 4 inches


• Height: 1.8 inches


• Weight: 15 oz
