• 2 Inputs / 6 Outputs: Ideal for multi-speaker and amplifier setups, offering flexible audio routing and configuration.
• 24-Bit / 48kHz Audio Processing: High-resolution signal conversion delivers clean, detailed sound reproduction.
• 39-Band EQ Per Channel: Allows for precise frequency tuning across all output channels for optimal sound control.
• RMS and Peak Limiters: Built-in protection features keep your speakers and system safe at higher volumes.
• Compact and Lightweight: Small 6 x 4 x 1.8 inch footprint fits in tight installation spaces; perfect for custom builds.

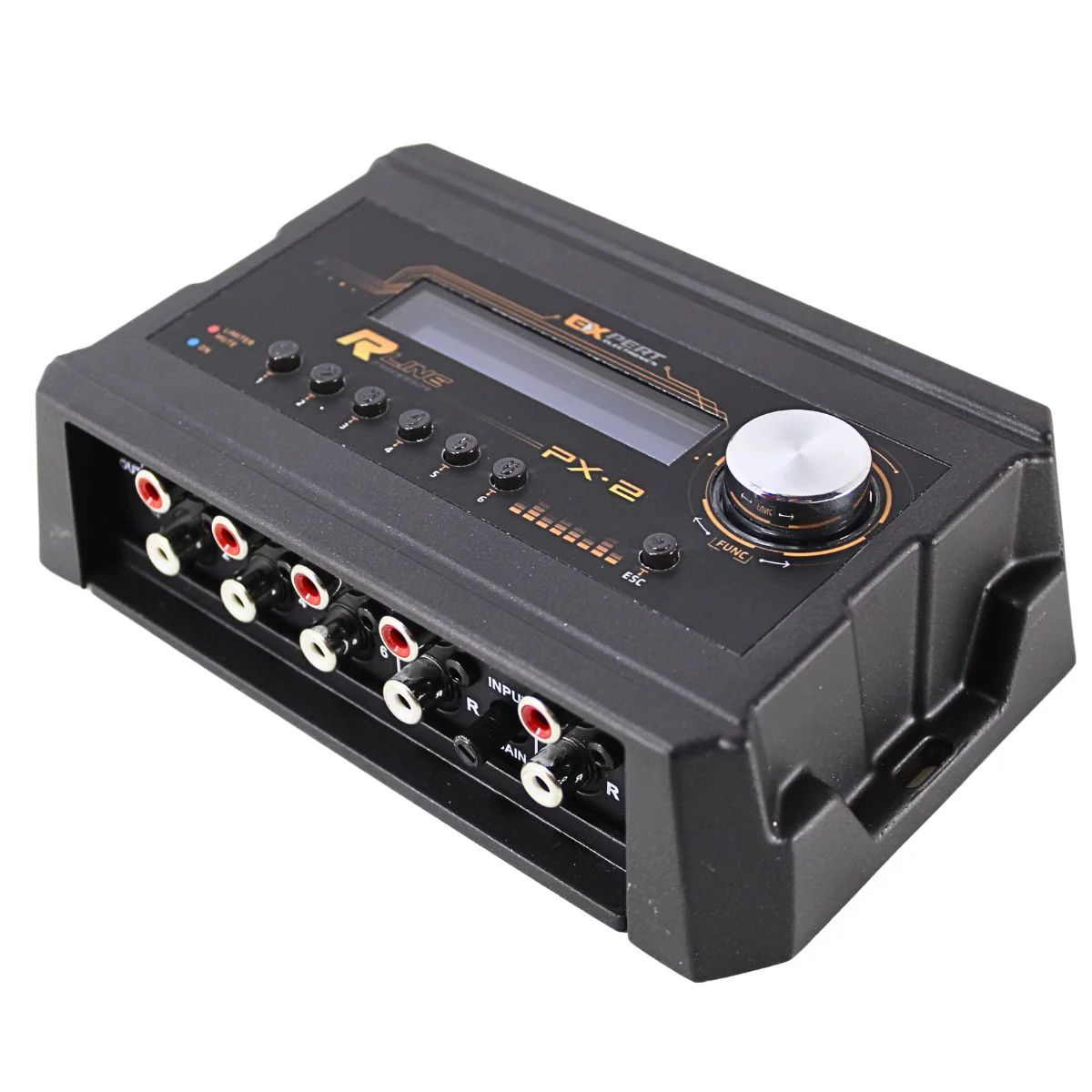

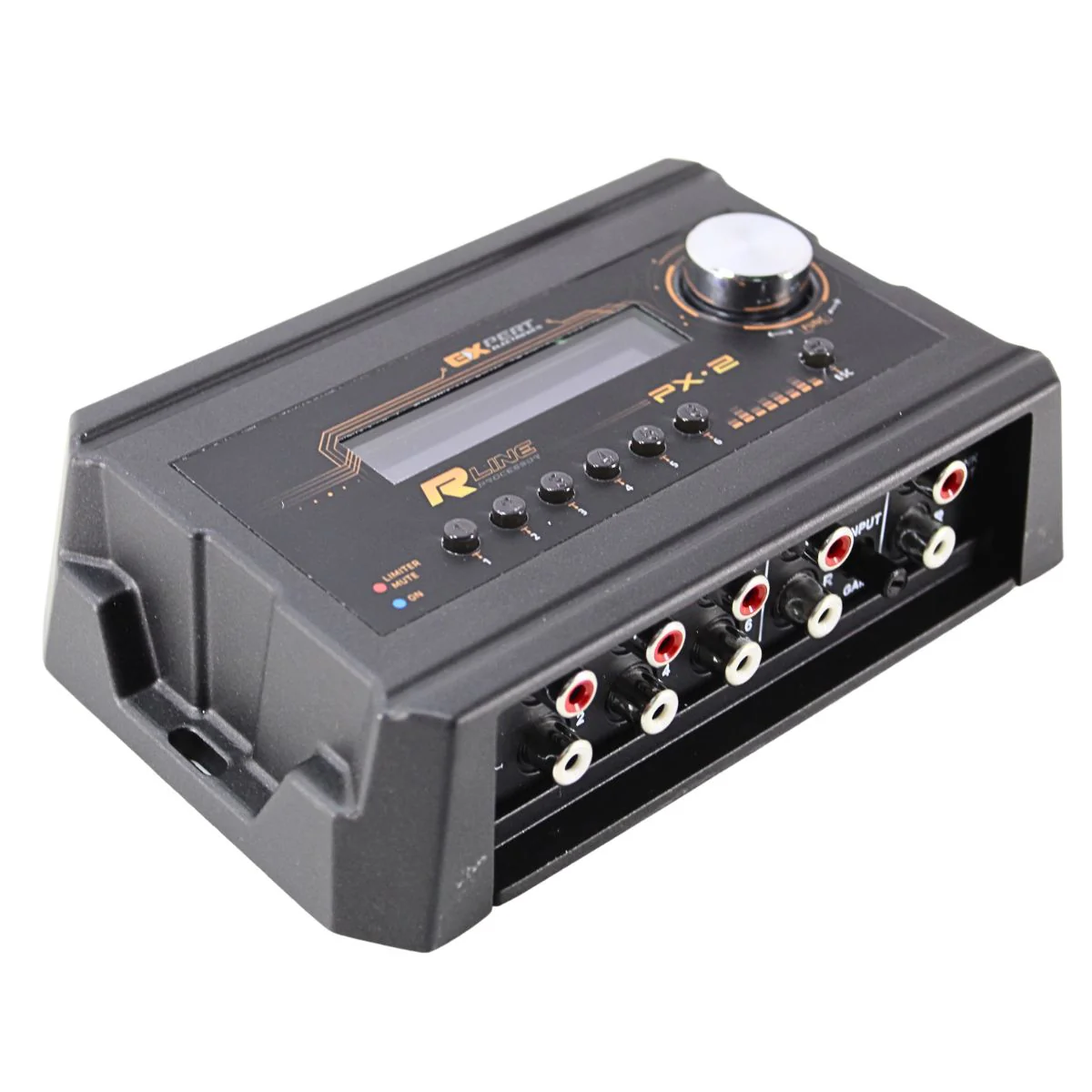

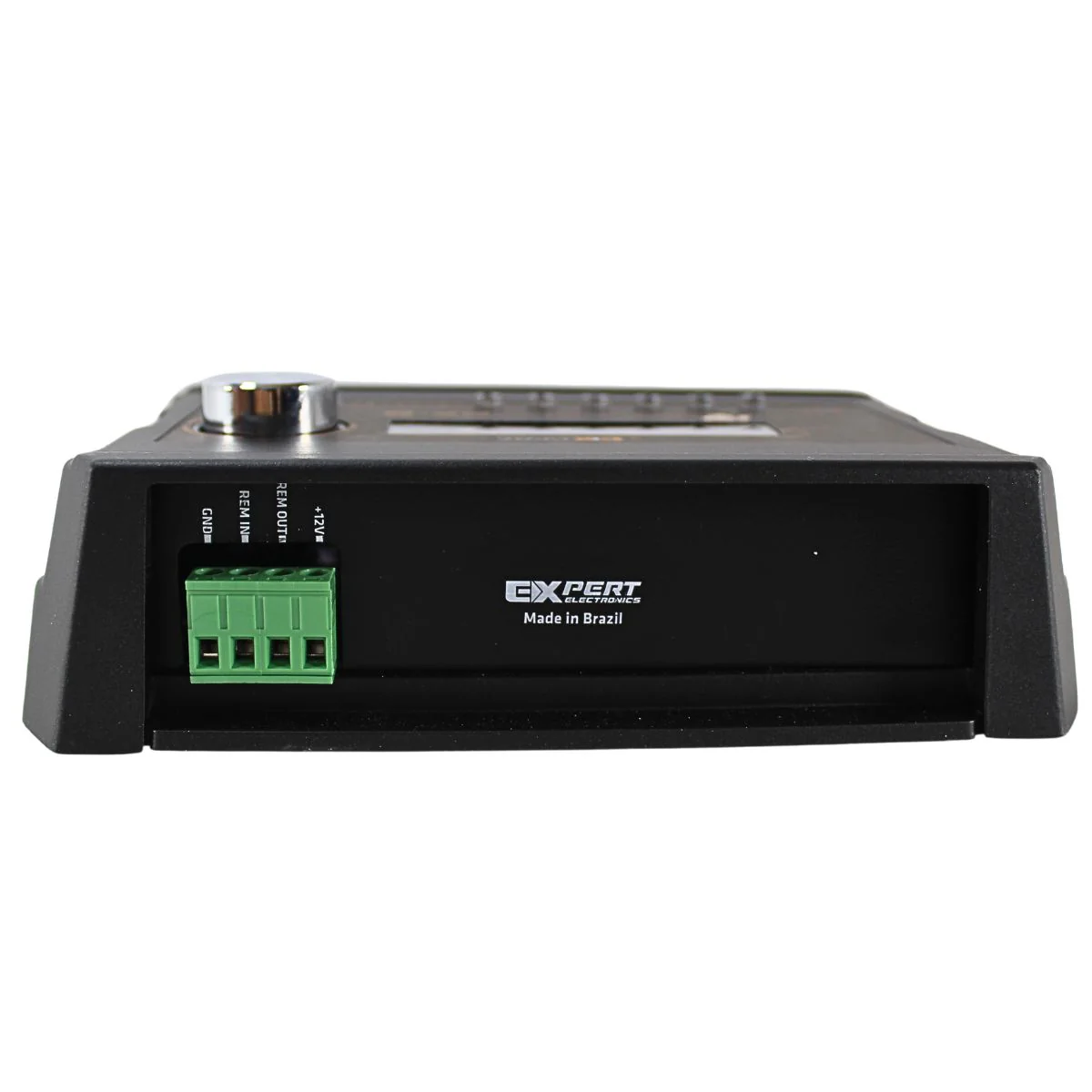

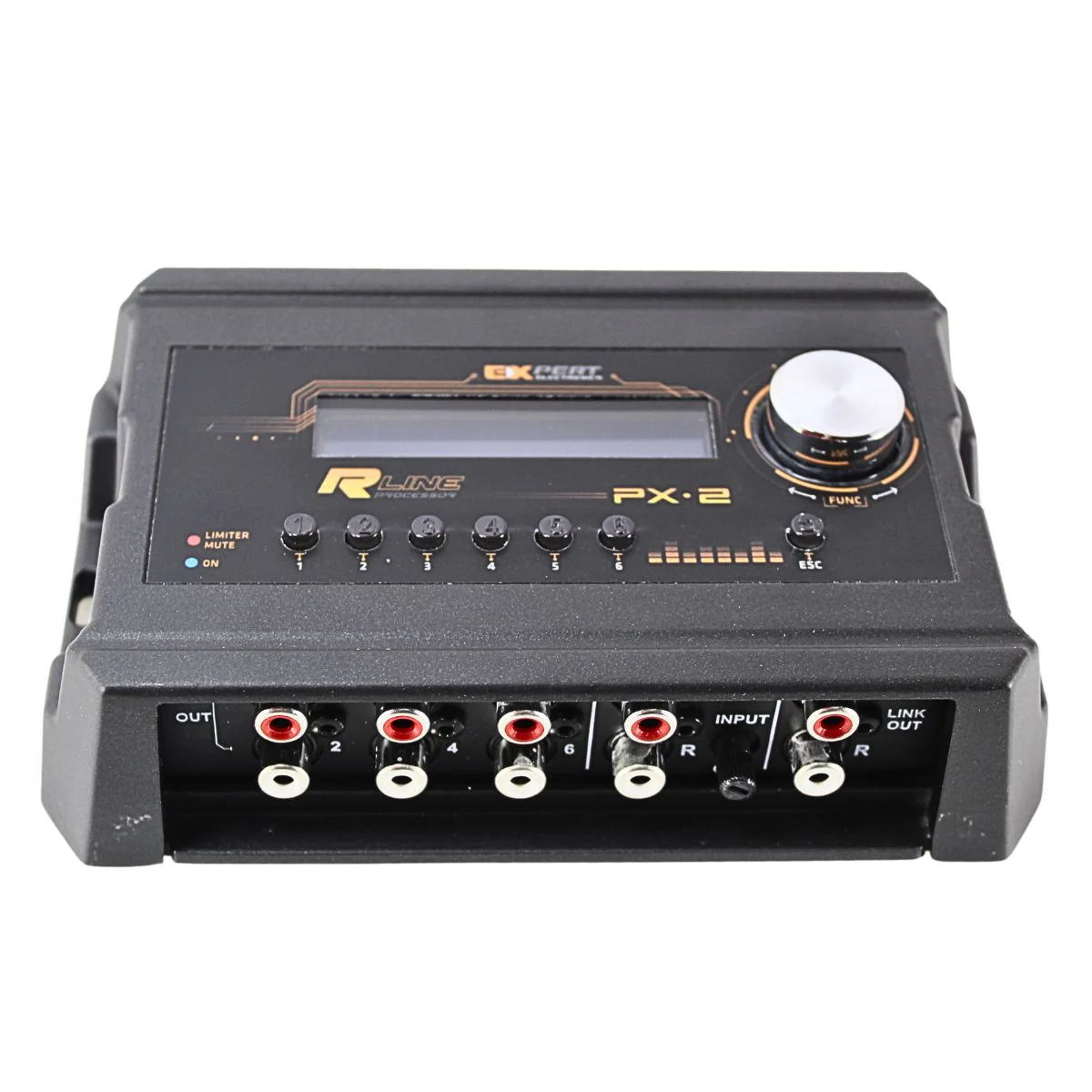

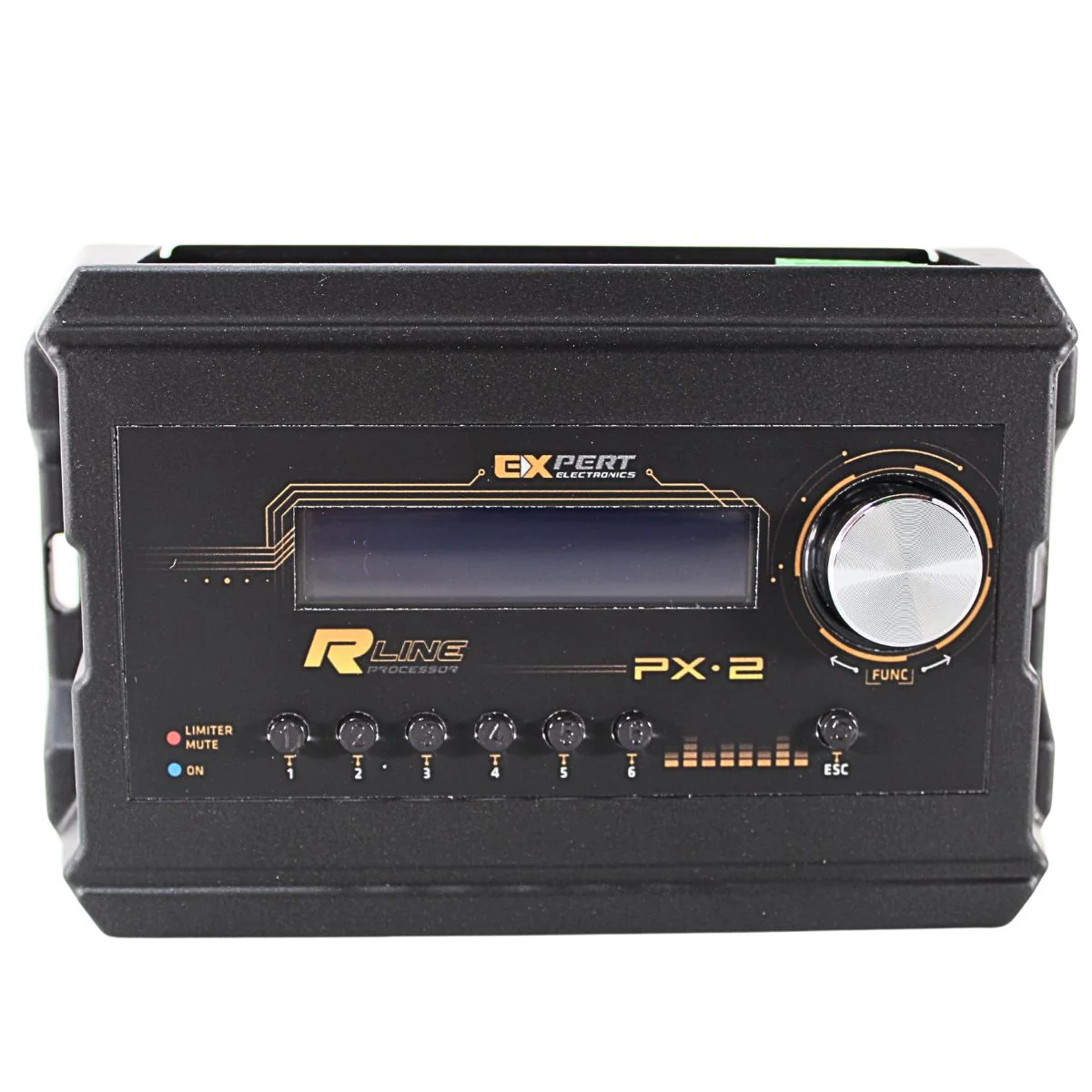

Expert Electronics R-Line PX2 Digital Sound Processor 2 In / 6 Out 24bits/48khz

This Listing Includes:

• (1) Expert Electronics R-Line PX2 Digital Sound Processor 2 In / 6 Out 24bits/48khz

Upgrade your audio system’s control and clarity with the PX2-R-LINE Digital Sound Processor by Expert Electronics. Part of the respected R-Line series, this compact yet powerful DSP offers high-resolution 24-bit / 48kHz processing, precision EQ tuning, and advanced limiters for a cleaner, more dynamic sound experience.

Features:

• 2 audio inputs with 6 fully configurable output channels


• High-resolution 24-bit / 48kHz signal processing for clean, accurate sound


• 39-band EQ per channel for detailed frequency tuning


• Built-in RMS and Peak limiters for output protection and clarity


• Integrated display screen for on-device control and monitoring


• Compact, lightweight housing ideal for tight installs


• Designed for professional-level systems without app or Bluetooth dependencies

Specifications:

• Model: PX2-R-LINE


• Inputs: 2


• Outputs: 6


• Equalizer Bands: 39 per channel


• Limiters: RMS and Peak


• Bluetooth: No


• App Control: No


• Display: Yes

Dimensions:

• Length: 6 inches


• Width: 4 inches


• Height: 1.8 inches


• Weight: 15 oz

Box Measurements:

• Length: 7 in


• Width: 4.6 in


• Height: 2.2 in


• Weight: 1.3 lbs
