Expert Electronics X4 Air Bluetooth + App DSP 2 In / 4 Out 32bits/96KHz

This Listing Includes

• (1)  X4 Air Bluetooth + App DSP 2 In / 4 Out 32bits/96KHz

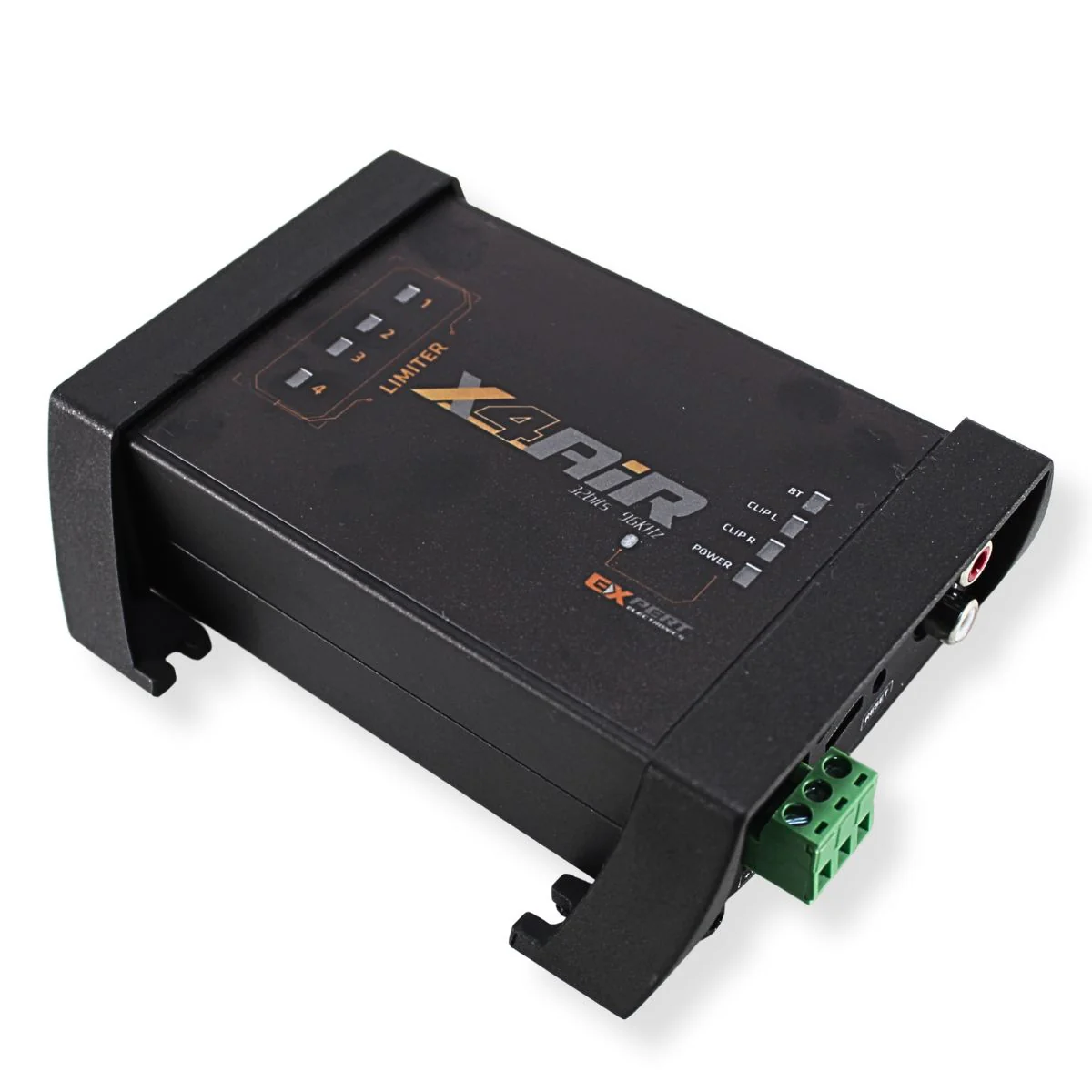

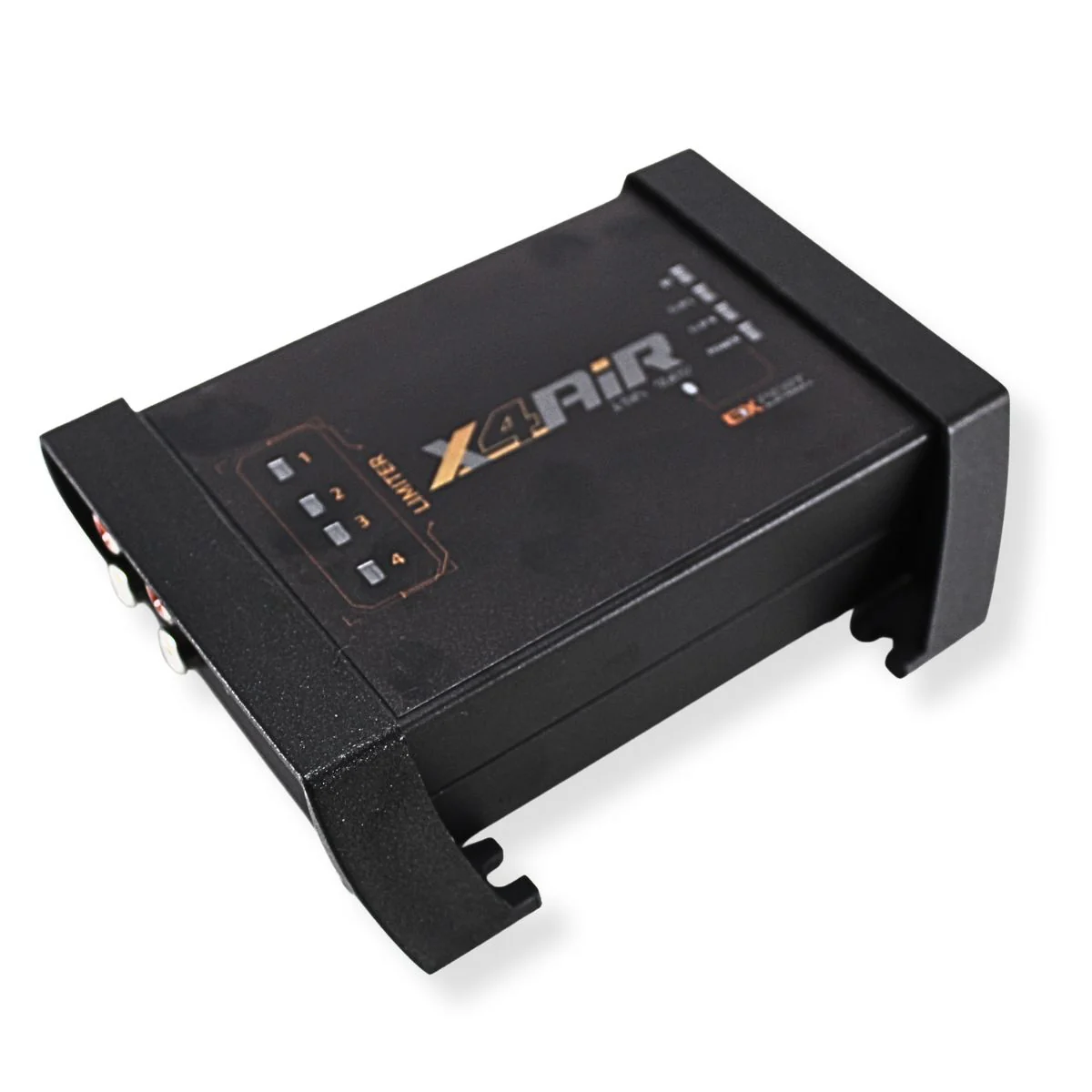

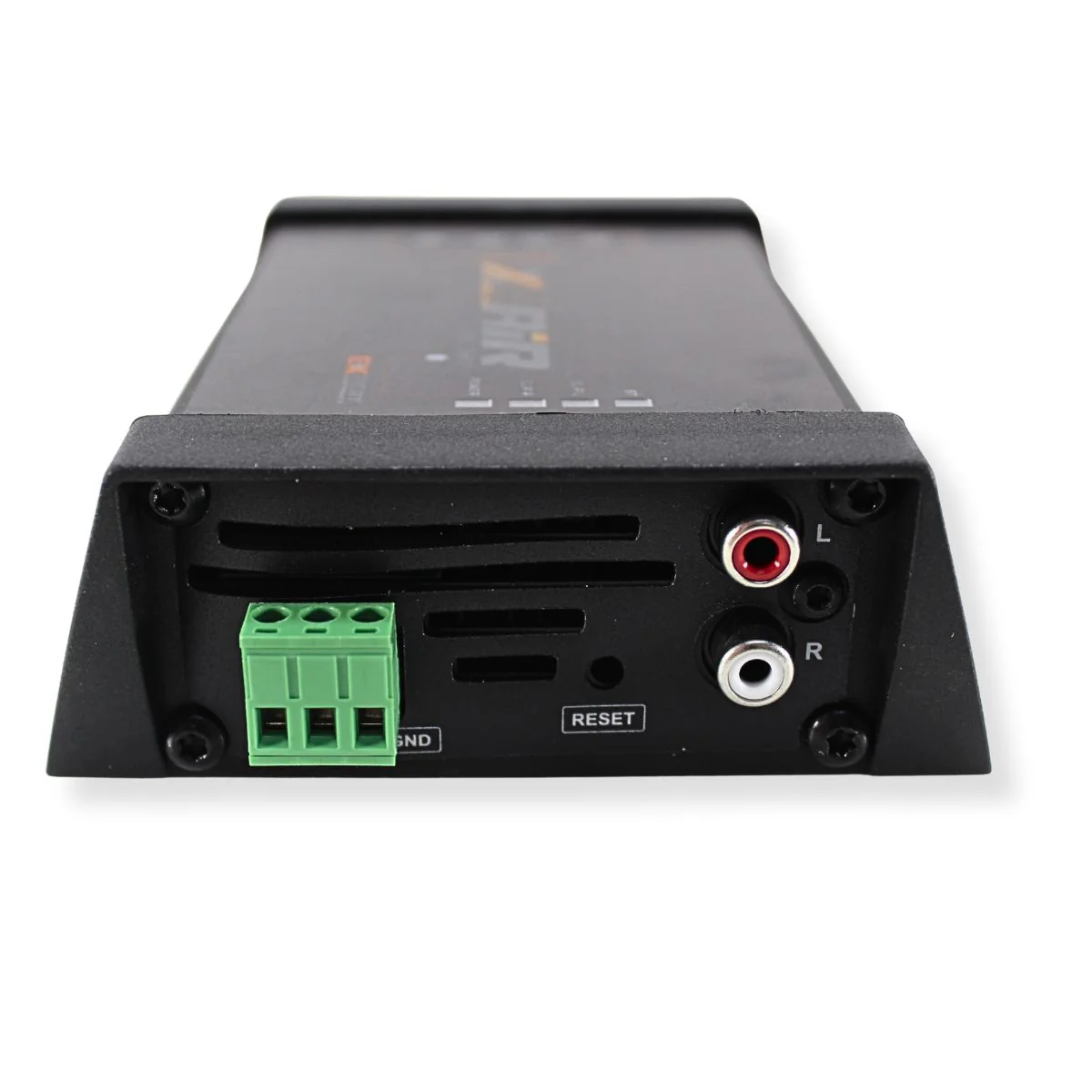

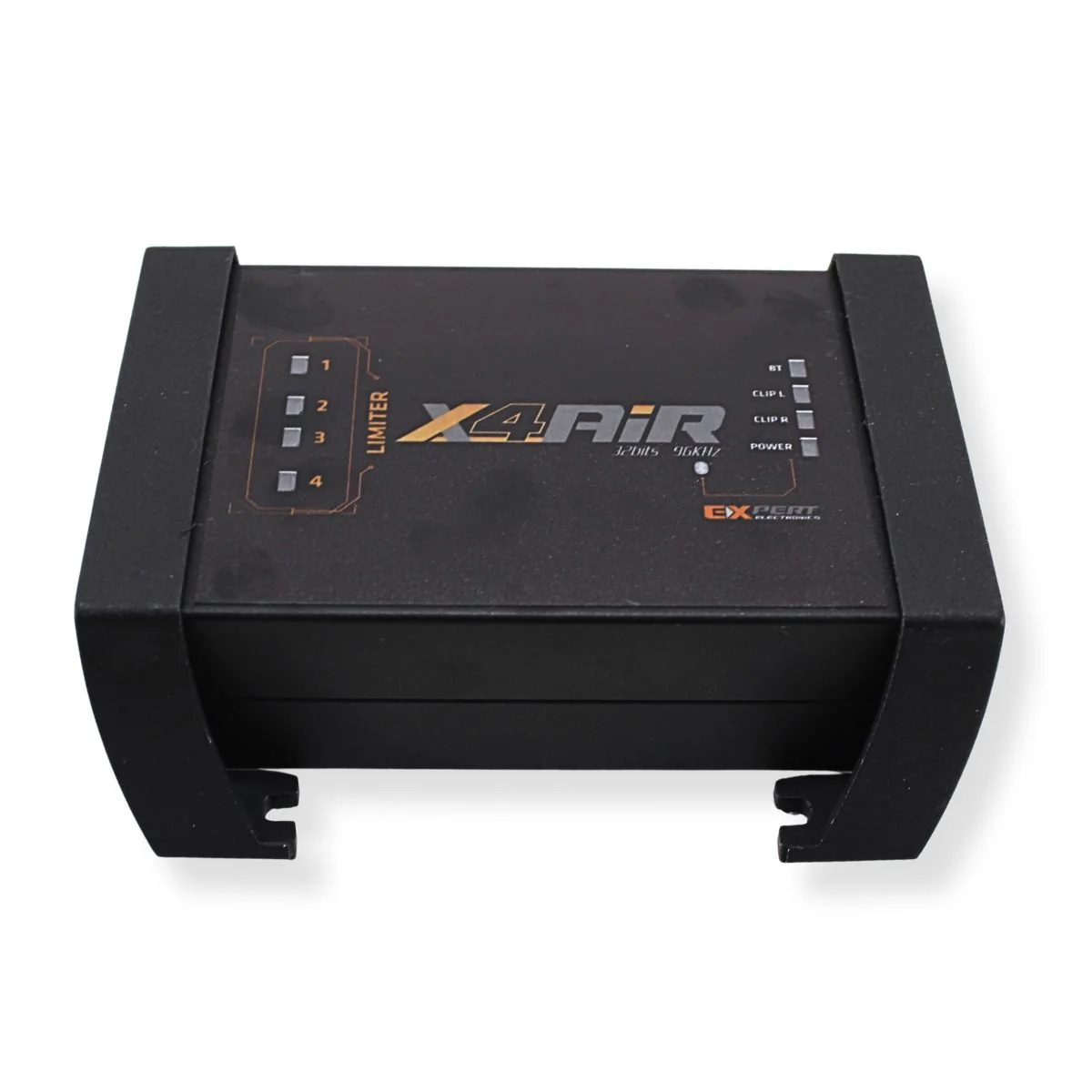

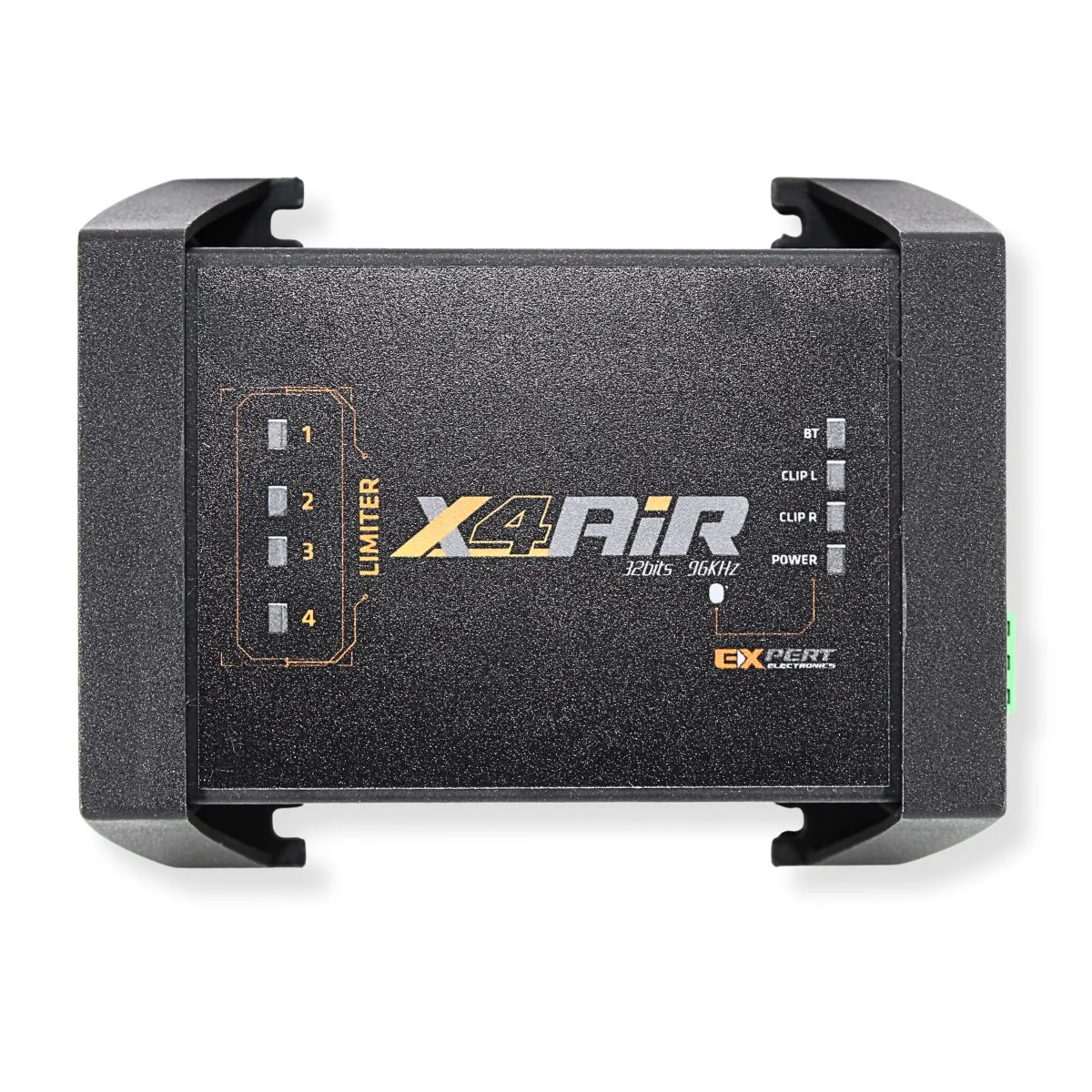

The Expert Electronics X4 Air is a high-performance digital signal processor designed for advanced audio control in mobile and custom sound systems. It features Bluetooth connectivity with full app control, offering complete tuning flexibility from your smartphone or tablet. With 2 input channels and 4 output channels, 32-bit processing, and 96kHz sampling, it delivers studio-grade sound quality in a compact and user-friendly design.

Features

• Electronically balanced RCA inputs


• Electronically balanced RCA outputs


• Parametric EQ bands per input/output channel


• Built-in peak limiter on outputs


• High-resolution 32-bit signal processing


• Studio-grade 96kHz sampling rate


• Ultra-low latency < 0.6ms


• THD + N < 0.01%


• Compact and powerful DSP solution for car audio or pro installs

Input Specifications

• Number of Inputs: 2 (Left/Right)


• Connection Type: RCA (Electronically Symmetrical)


• Max Input Level: 2.2 Vrms (+9dBu)


• Input Impedance: 100 Ohm

Output Specifications

• Number of Outputs: 4


• Connection Type: RCA (Electronically Symmetrical)


• Max Output Level: 3.5 Vrms (+13dBu)


• Output Impedance: 100 Ohm

DSP Specifications

• Frequency Response: 10Hz – 24kHz (-1dB)


• Bit Rate: 32-bit


• Sampling Rate: 96kHz


• Total Harmonic Distortion + Noise (THD+N): < 0.01%


• Signal Latency: < 0.6ms


• Limiter: Yes (Peak)

Power Requirements

• Operating Voltage: 10 – 15 VDC


• Maximum Current Draw: 300mA
