• Advanced 32-bit/96kHz digital signal processing delivers studio-quality sound resolution with ultra-low distortion (<0.01% THD+N) and minimal latency (<0.6ms).
• Full Bluetooth connectivity with mobile app control allows easy, real-time adjustments directly from your smartphone or tablet.
• Features 2 electronically balanced RCA inputs and 6 electronically balanced RCA outputs for flexible system integration.
• Built-in 46-band EQ and peak limiter provide detailed tuning options and output protection for demanding car audio setups.
• Compact, lightweight design (5.25" × 4.25" × 1.65", 0.40 lb) makes it ideal for custom and competitive installations.

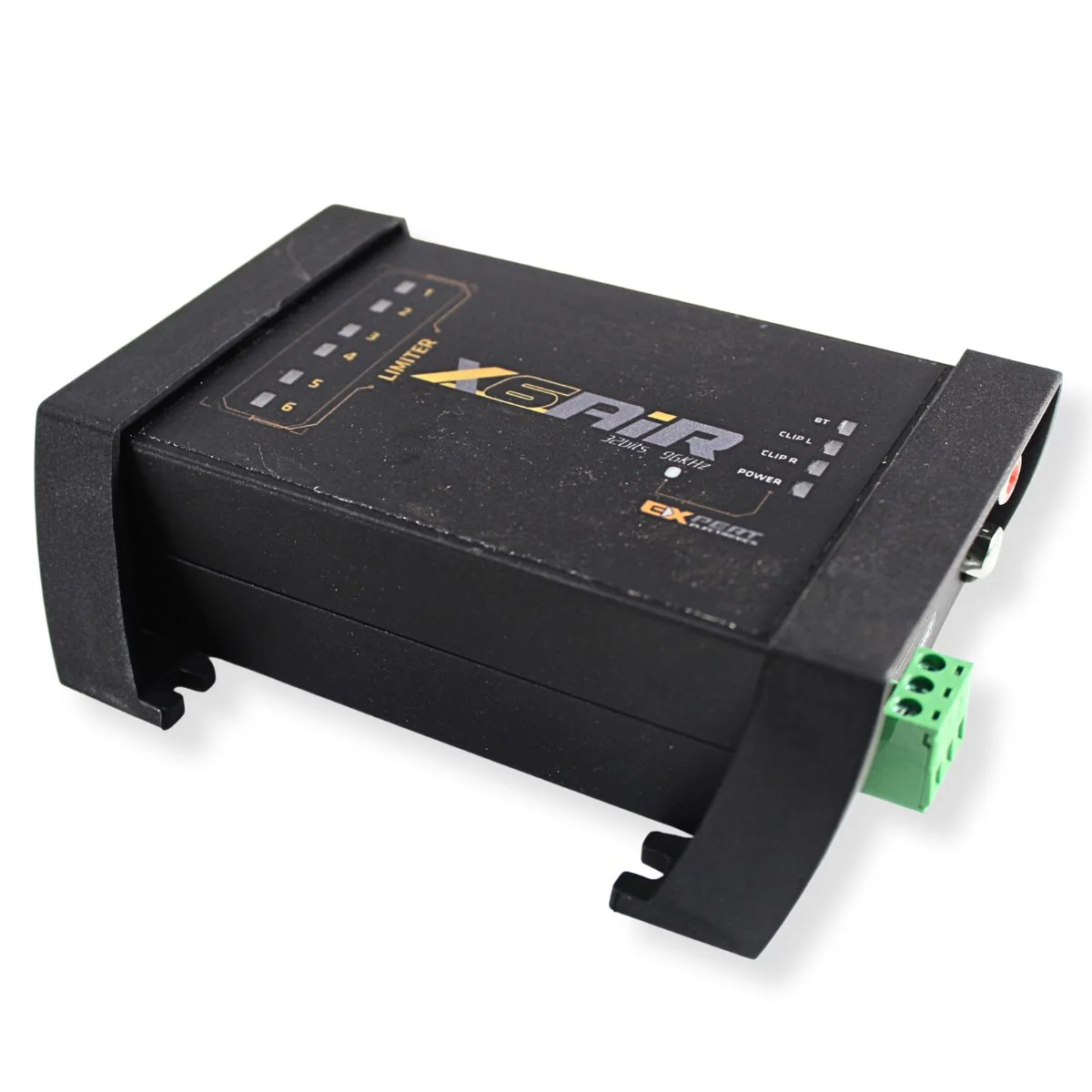

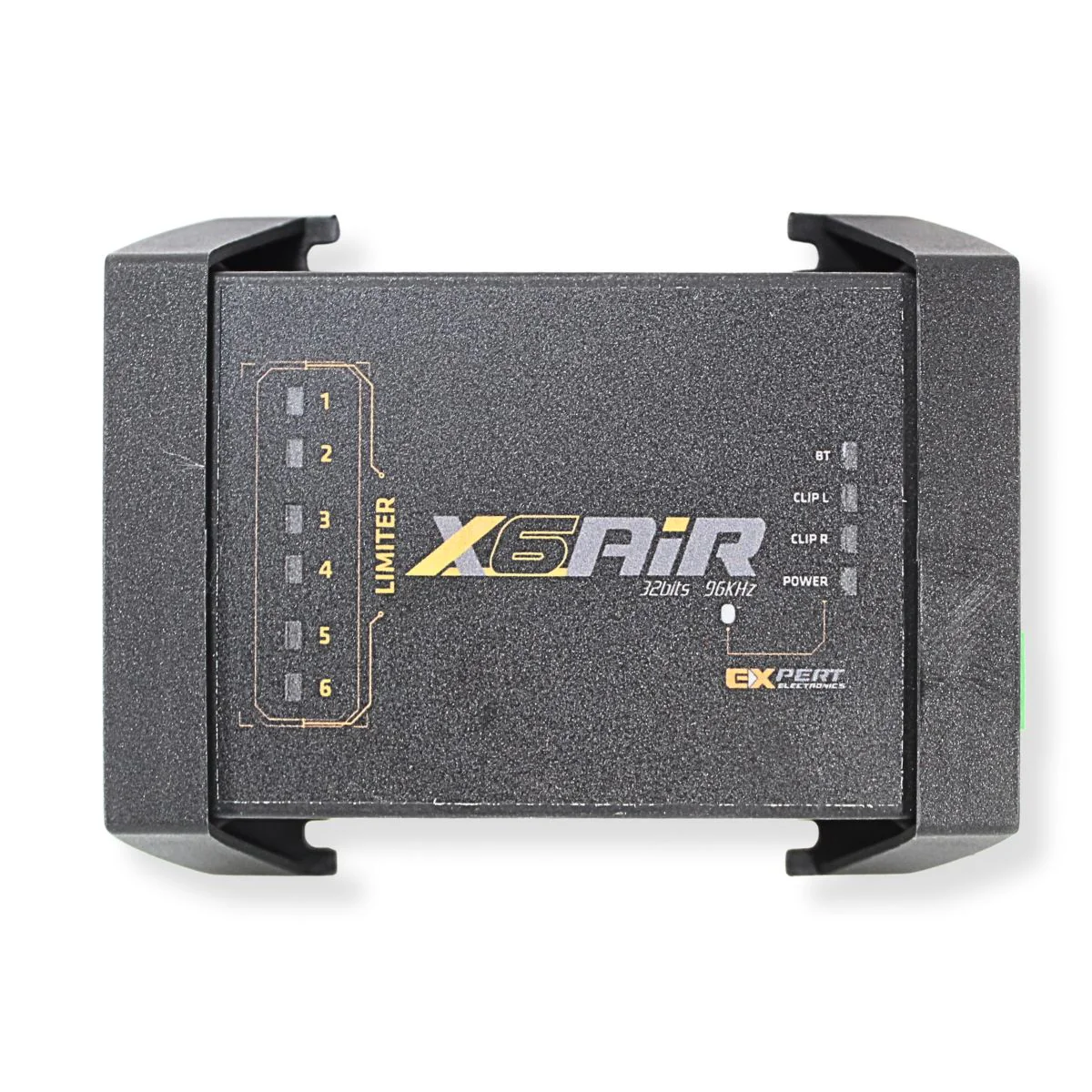

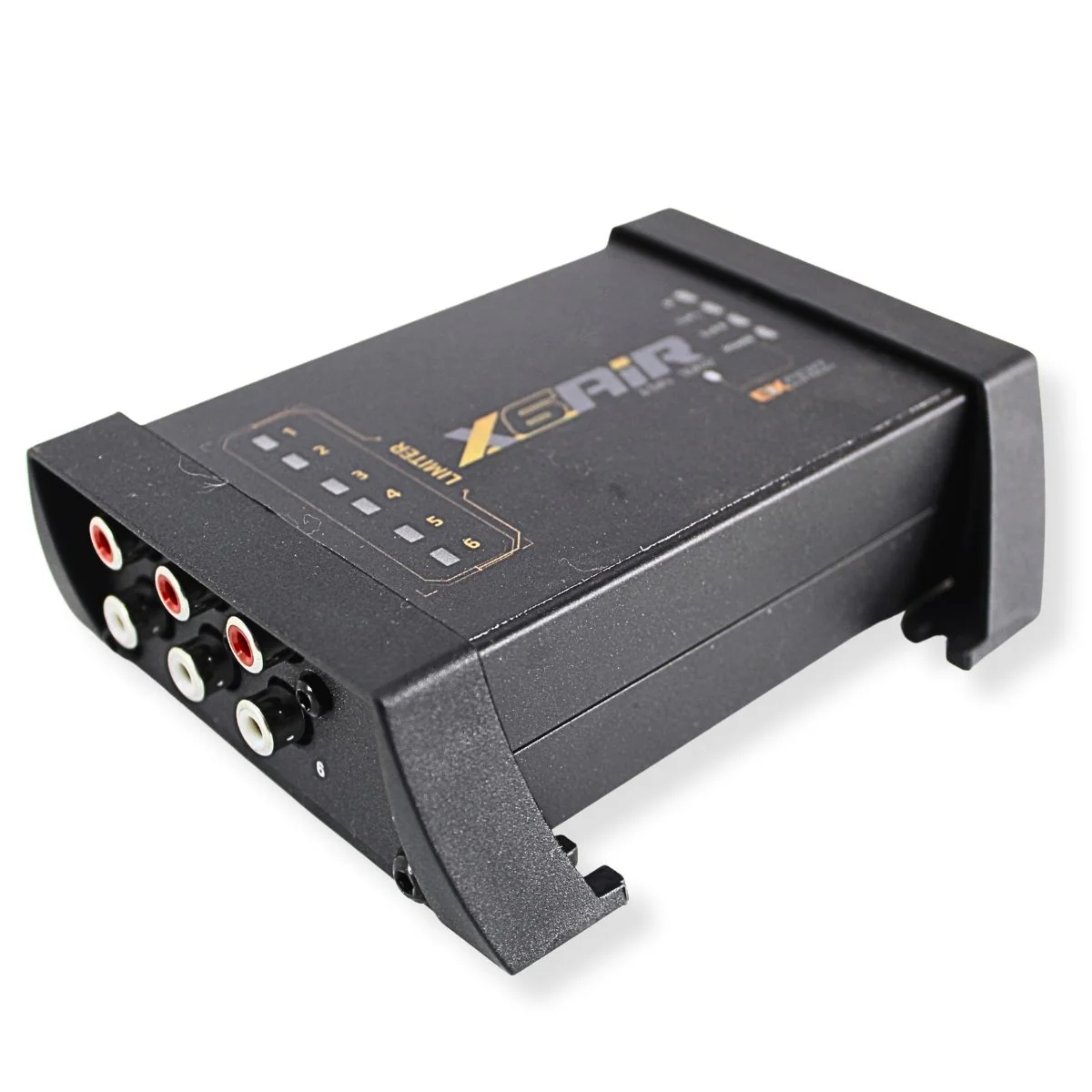

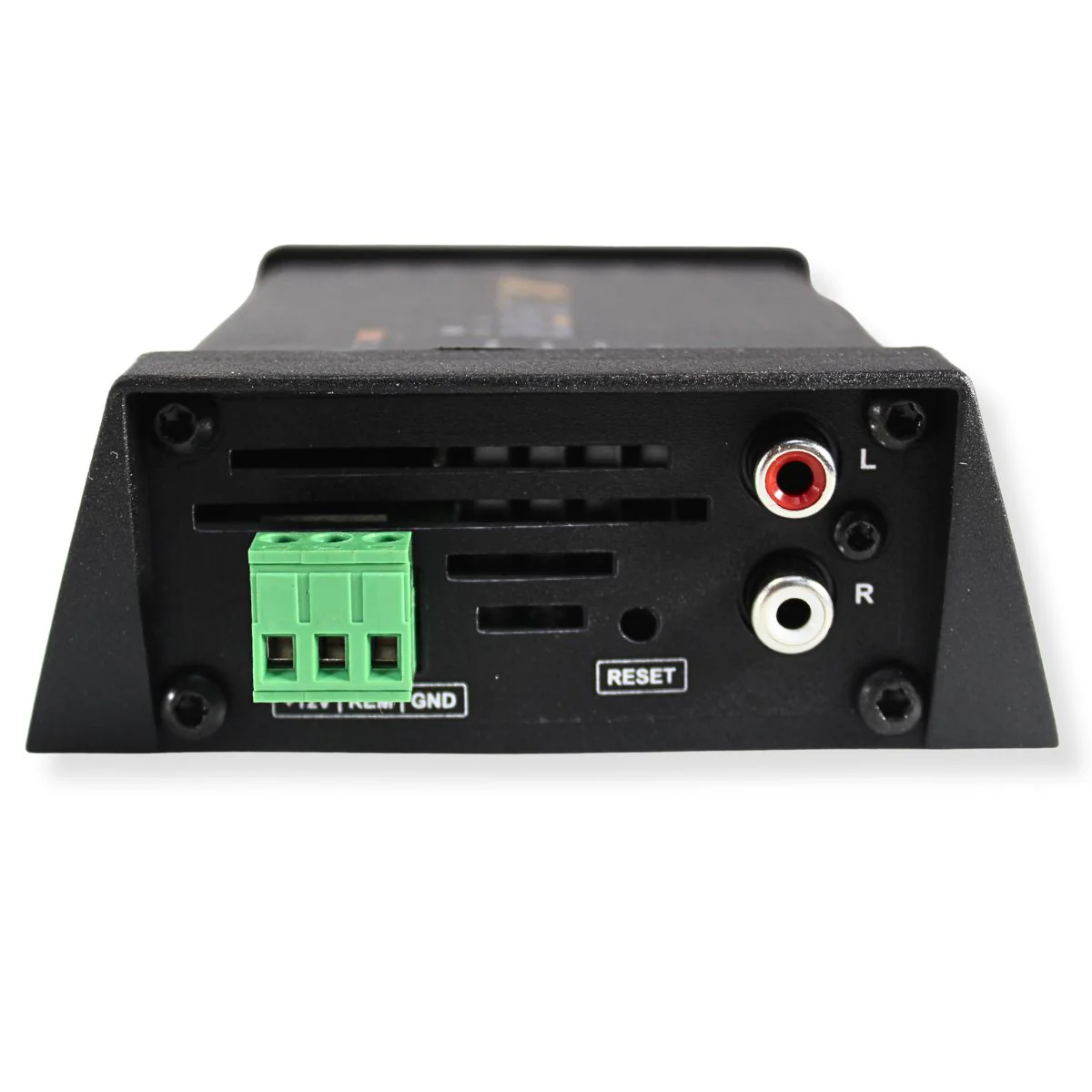

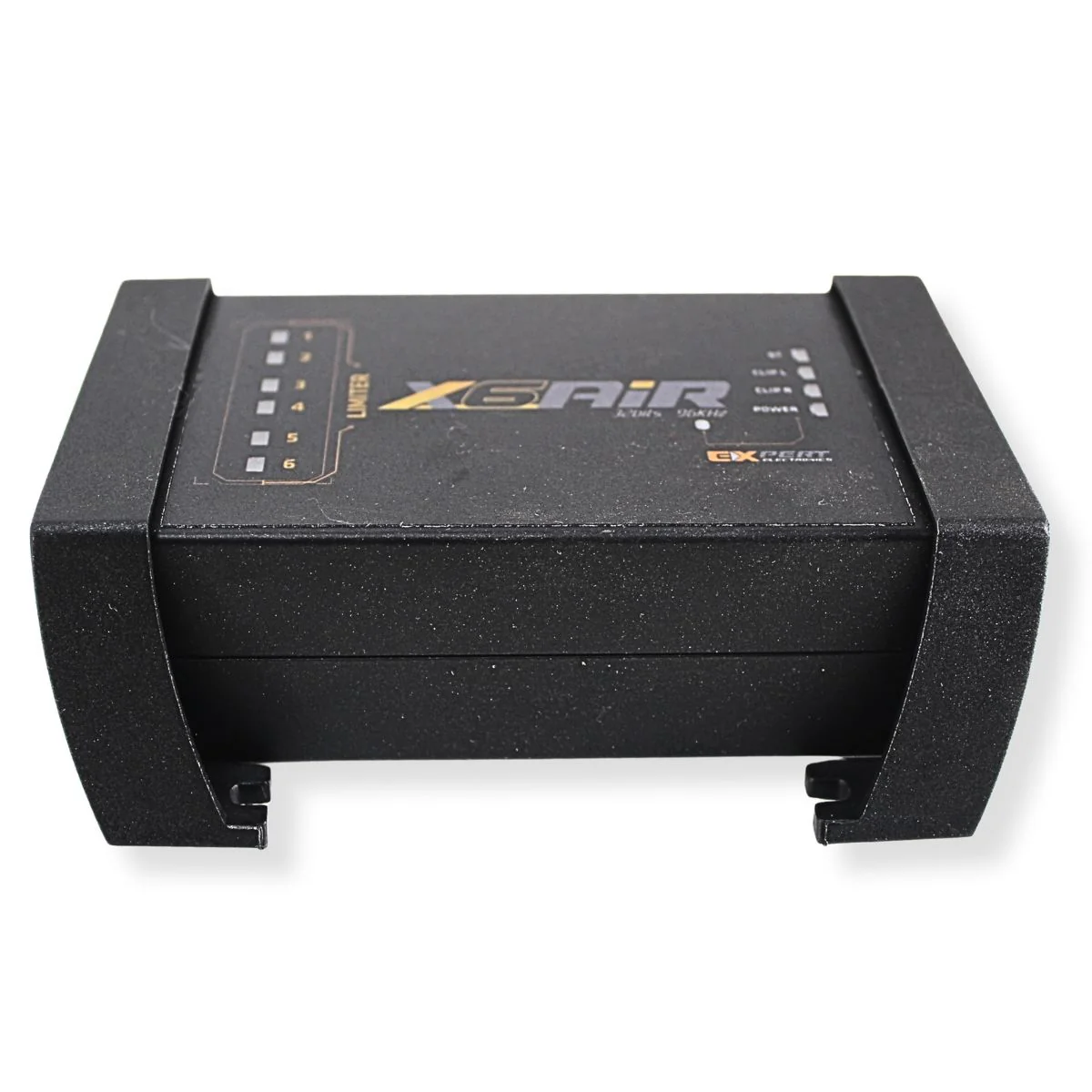

Expert Electronics X6 Air Bluetooth + App DSP 2 In / 6 Out 32bits/96KHz

This listing includes

• (1) X6 Air Bluetooth + App DSP 2 In / 6 Out 32bits/96KHz

The Expert Electronics X6 Air DSP is a high-end digital signal processor featuring Bluetooth connectivity and full app-based control, giving you complete flexibility to fine-tune your sound system from your smartphone or tablet. Designed for serious audiophiles and competitive car audio builds, the X6 Air features 2 inputs and 6 electronically balanced outputs, an advanced 46-band EQ, and studio-quality 32-bit/96kHz processing for exceptional audio resolution.

Key Features:

• Bluetooth-enabled DSP unit with full mobile app control


• Electronically balanced RCA inputs


• Electronically balanced RCA outputs


• EQ bands for detailed tuning


• Built-in peak limiter for output protection


• 32-bit digital signal processing for ultra-clean audio


• 96kHz sampling rate for studio-grade resolution


• Signal latency < 0.6ms


• THD + N < 0.01%


• Compact design ideal for custom audio installations

Input Specifications:

• Number of Inputs: 2 (Left/Right)


• Type: Electronically Symmetrical


• Connection: RCA


• Max Input Level: 2.2 Vrms (+9dBu)


• Input Impedance: 100 Ohm

Output Specifications:

• Number of Outputs: 6


• Type: Electronically Symmetrical


• Connection: RCA


• Max Output Level: 3.5 Vrms (+13dBu)


• Output Impedance: 100 Ohm

DSP Specifications:

• Frequency Response: 10Hz - 24kHz (-1dB)


• Bit Rate: 32-bit


• Sampling Frequency: 96kHz


• THD + N: < 0.01%


• Signal Latency: < 0.6ms


• Limiter: Yes (Peak)

Power Requirements:

• Operating Voltage: 10 - 15 VDC


• Maximum Current Draw: 300 mA

Dimensions:

• Length: 5.25"


• Height: 4.25"


• Width: 1.65


• Weight: .40 lb
