• Built-in peak limiter
• Bluetooth with full mobile app control
• Ultra-low latency: < 0.6ms
• Parametric EQ bands per input/output

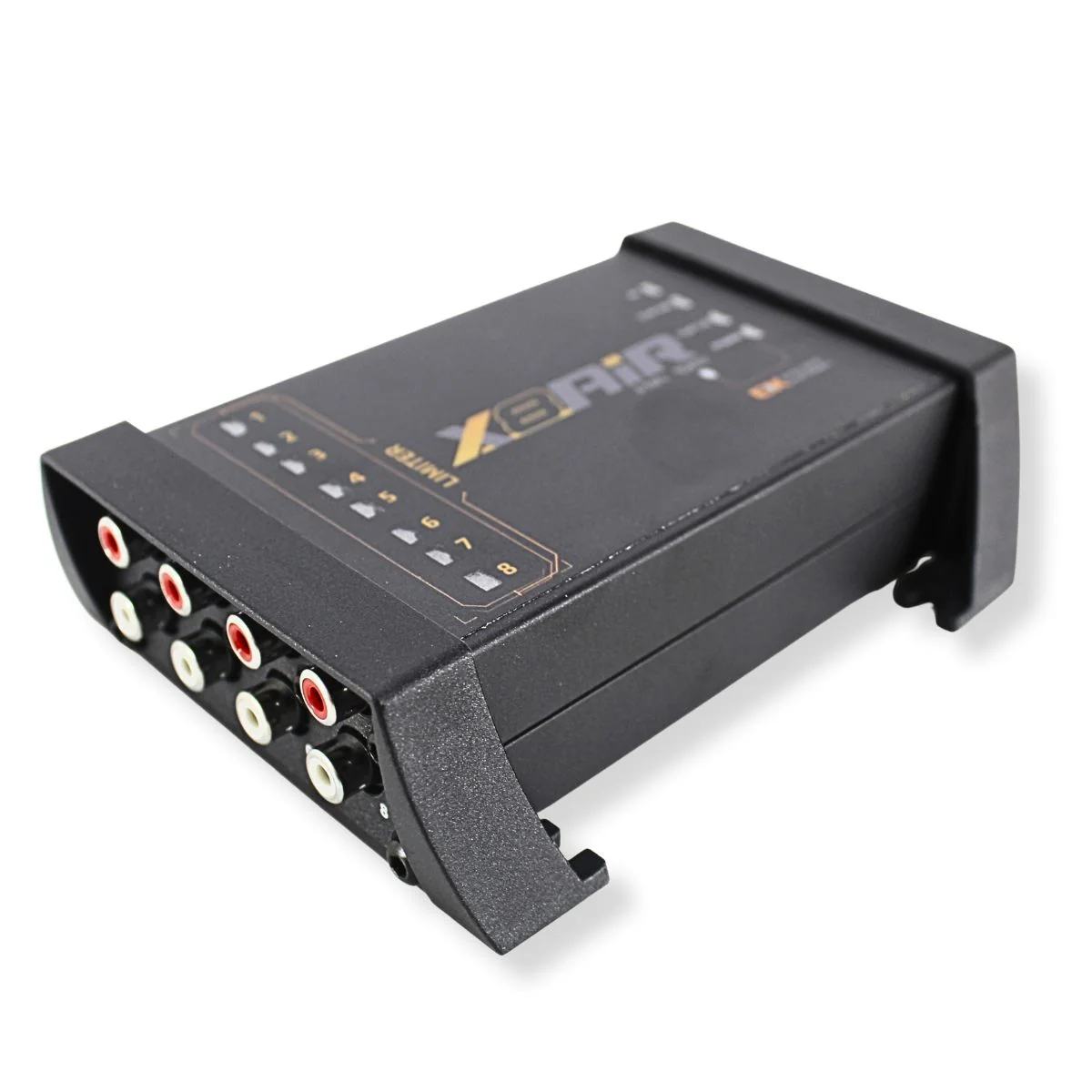

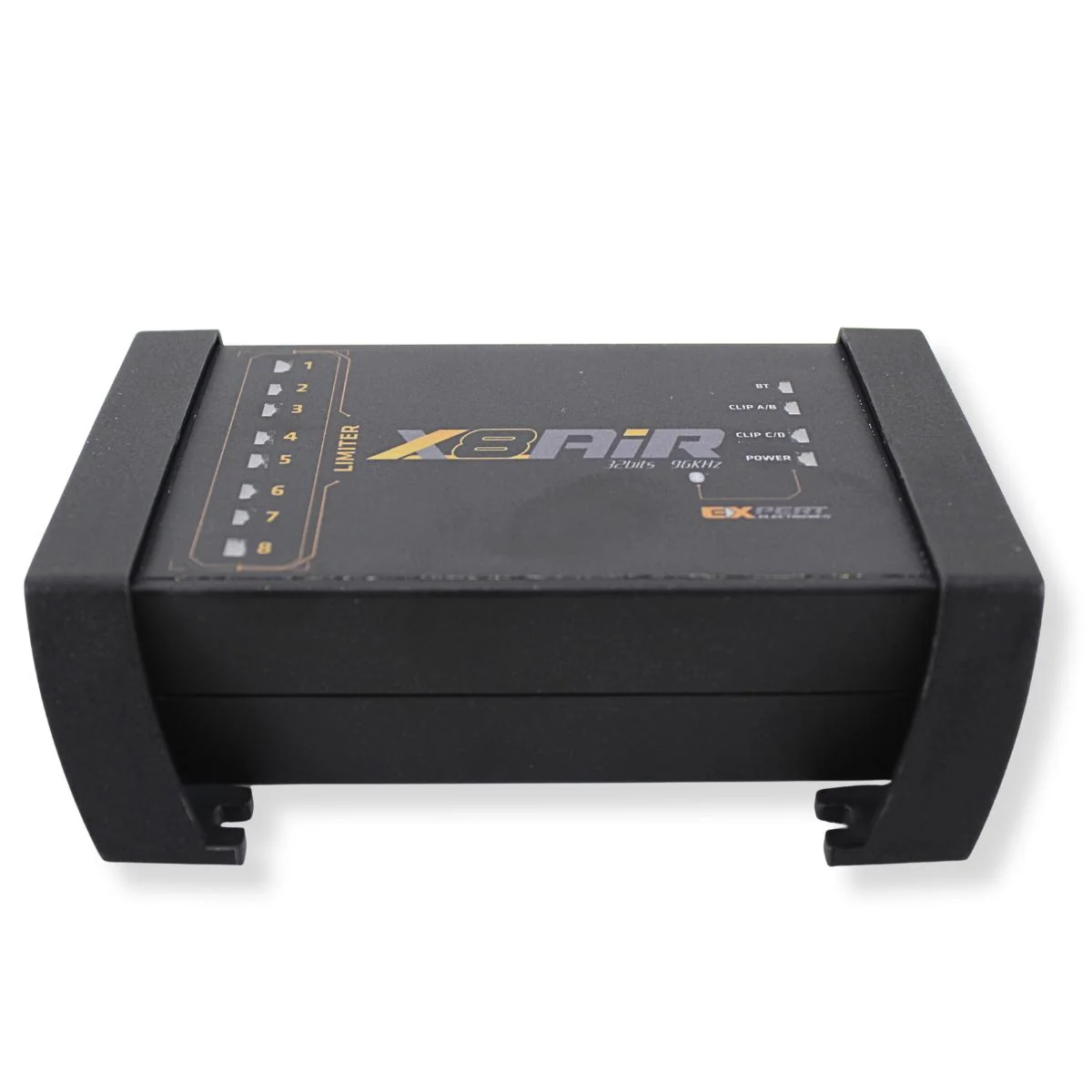

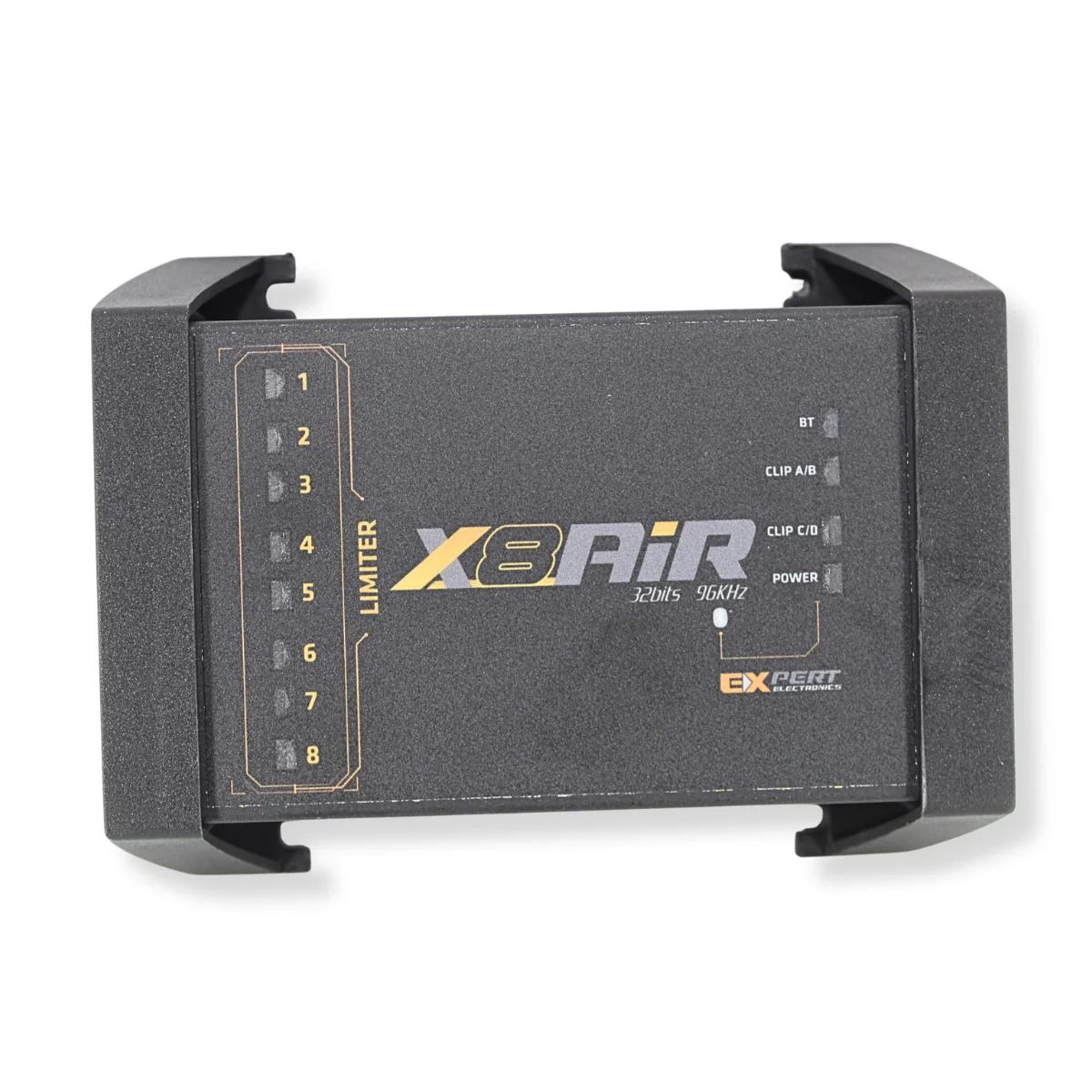

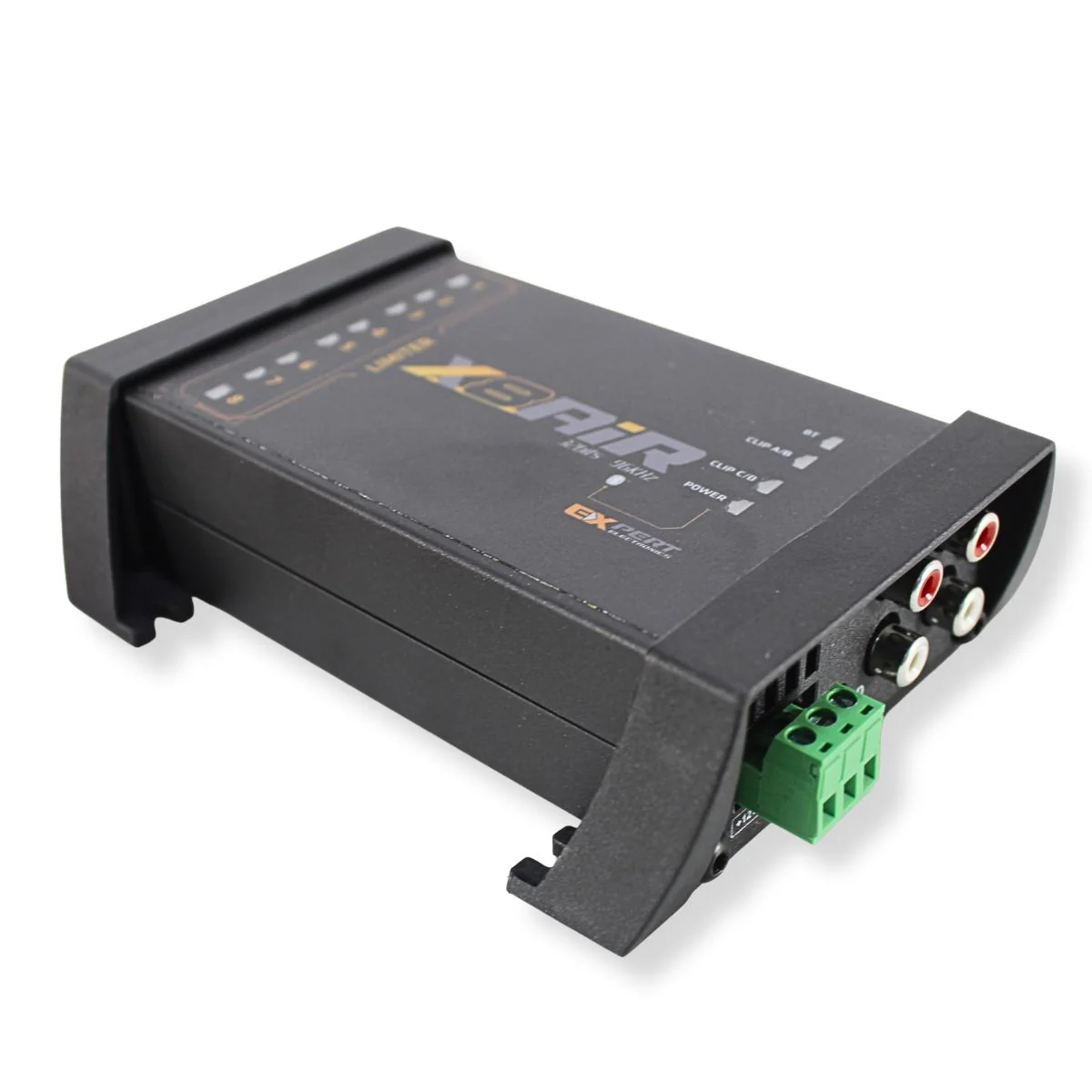

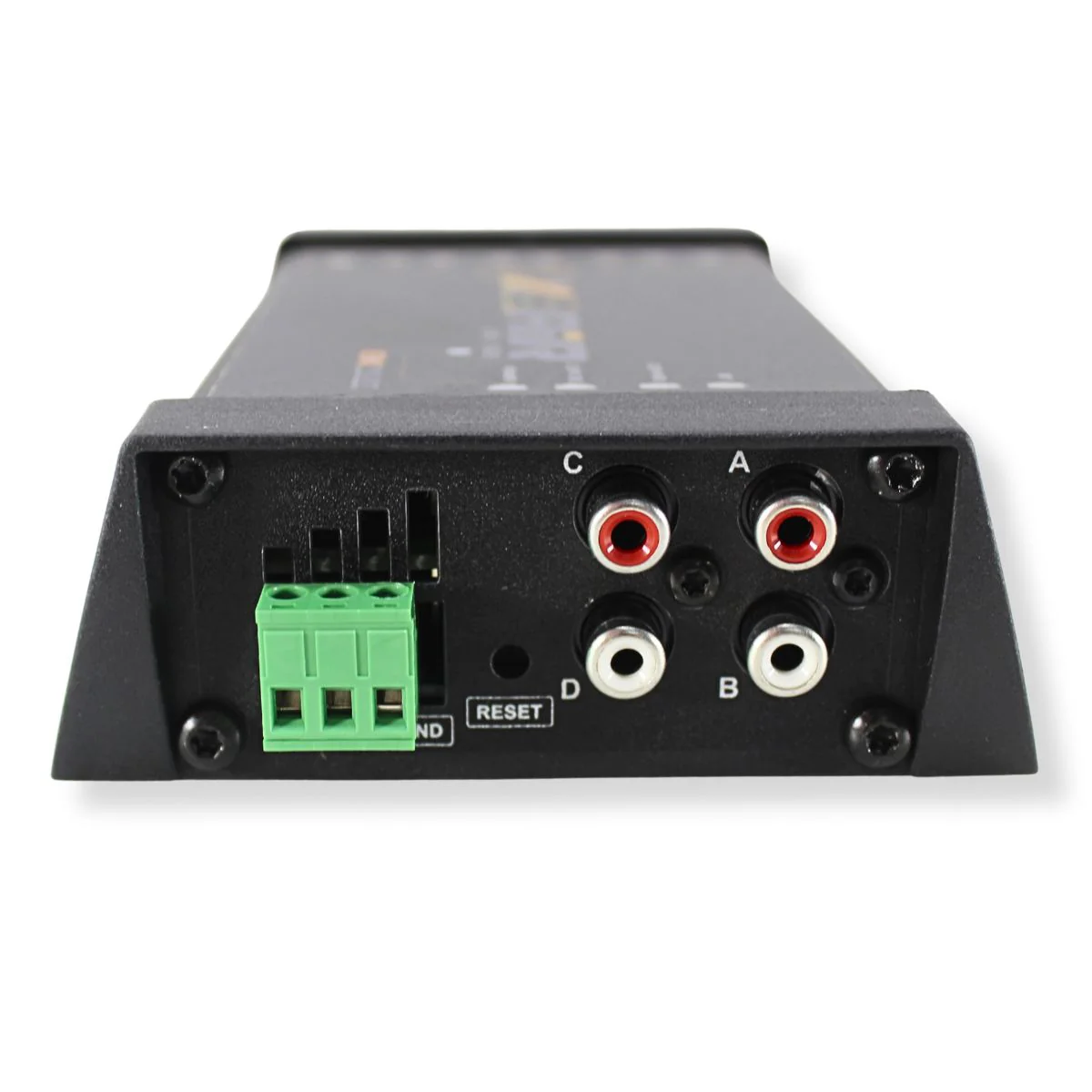

Expert Electronics X8 Air Bluetooth + App DSP 2 In / 8 Out 32bits/96KHz

This Listing Includes

• (1)  8 Air Bluetooth + App DSP 2 In / 8 Out 32bits/96KHz

Take full control of your audio system with the Expert Electronics X8 Air DSP, designed for high-performance sound systems. Featuring Bluetooth connectivity and a powerful mobile app interface, the X8 Air allows seamless real-time tuning. With 4 electronically balanced RCA inputs and 8 outputs, it delivers unmatched precision and flexibility for both daily and competition setups.

Features

• Bluetooth-enabled DSP unit with full mobile app integration


• Electronically symmetrical RCA inputs


• Electronically symmetrical RCA outputs


• EQ bands for each channel for advanced audio shaping


• Peak limiter for system protection


• High-resolution 32-bit digital signal processing


• 96kHz sampling rate for superior sound quality


• Signal latency < 0.6ms


• THD + N < 0.01%


• Ideal for multi-amp, high-fidelity sound systems

Input Specifications

• Number of Inputs: 4 (Left/Right)


• Type: Electronically Symmetrical


• Connection: RCA


• Max Input Level: 2.2 Vrms (+9dBu)


• Input Impedance: 100 Ohm

Output Specifications

• Number of Outputs: 8


• Type: Electronically Symmetrical


• Connection: RCA


• Max Output Level: 3.5 Vrms (+13dBu)


• Output Impedance: 100 Ohm

DSP Specifications

• Frequency Response: 10Hz – 24kHz (-1dB)


• Bit Rate: 32-bit


• Sampling Frequency: 96kHz


• THD + N: < 0.01%


• Signal Latency: < 0.6ms


• Limiter: Yes (Peak)

Power Requirements

• Operating Voltage: 10 – 15 VDC


• Maximum Current Draw: 300 mA
