KEQ5 5 Band Graphic Equalizer 6 Ch 5V + 2 x 18" 2 Ch RCA M2M

This listing includes:

(1) DS18 KEQ5 5 Band Graphic Equalizer 6 Ch 5V

(2) Metra 18" 2 Ch RCA M2M

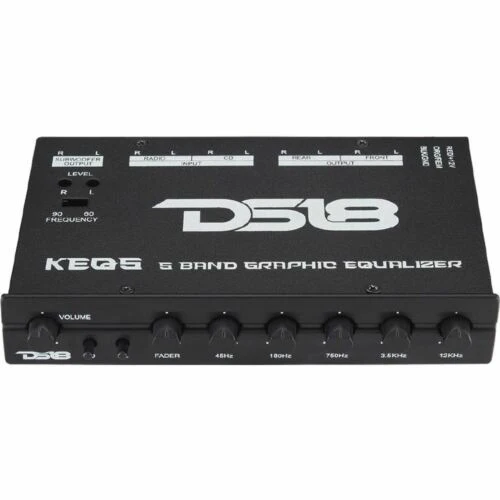

FEATURES FOR KEQ5 GRAPHIC EQUALIZER

- 5-Band Stereo Equalizer / Crossover specifically created for the mobile environment with 12 dB Boost/cit

- It provides powerful features in a compact size 5 equalization bands ( 45Hz, 180Hz, 750Hz, 3.5KHz) each adjustable from -18dB to 18dB

- Active gain equalizer with adjustable input sensitivity

- Master volume control with up to 7 Volts RMS of output

- Individual left and right sensitivity controls

- Specific bandwidth for each band plus high frequency shelving

- On-Board 30V bipolar switching power supply

- Subwoofer level control

- Subwoofer frequency adjustable 60Hz - 90Hz

- Gold plated RCA input/output connectors

- Input RADIO/CD select switch

- Night illumination design with 2 color selectable

- 4 channel separate control for fitting front & rear field by dual VR type

- S/N Ratio 80dB REF IV input

- T.H.D 0.05%

- Frequency Response: 10Hz-50KHz +/- 1dB

- Stereo Separation: 80dB / 1KHz

- Input Impedance: 20K OHMS

- Operation Voltage: 11~15V DC negative ground

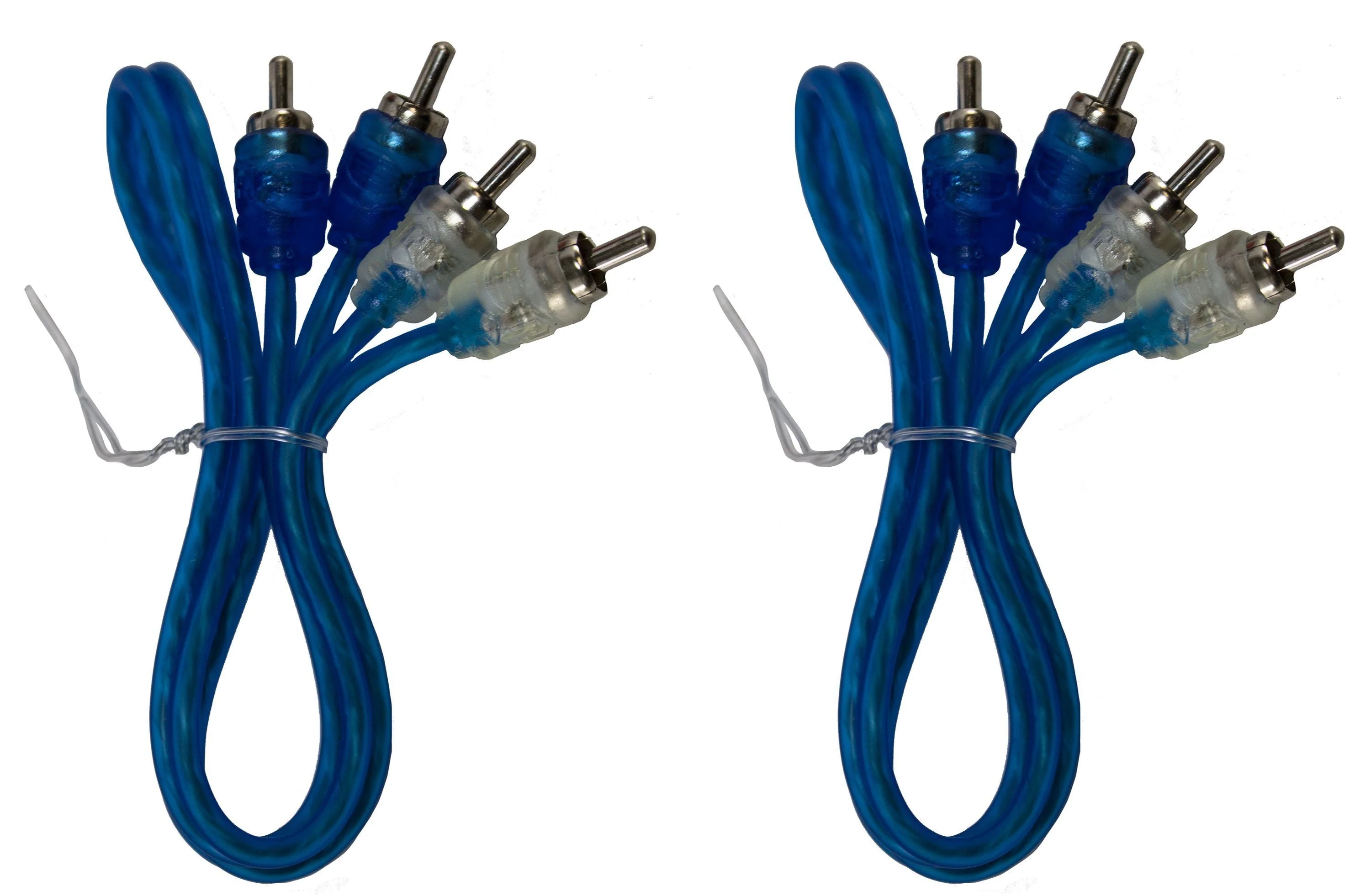

FEATURES FOR R2RCA18IN RCA CABLES

- 2 Channel RCA Cables

- Male to Male (Both Channels)

- Coaxial Shielded Cable

- Flexible but durable construction
