• Explore high-performance audio - with the Marts Digital Albany-2 6 Channel DSP and 28 Band Crossover.
• Designed for car audio enthusiasts - delivering top-notch sound quality worldwide.
• Versatile features for audio customization - 2 RCA inputs, 2 linked RCA outputs, and 6 independent routing channels.
• Precision equalization - 28 bands between octaves on the input equalizer and 3 independent bands per channel on the parametric equalizer.
• Crossover options - Butterworth, Linkwitz-Riley, and Bessel, with attenuations from 6dB/8a for tailored audio experience.

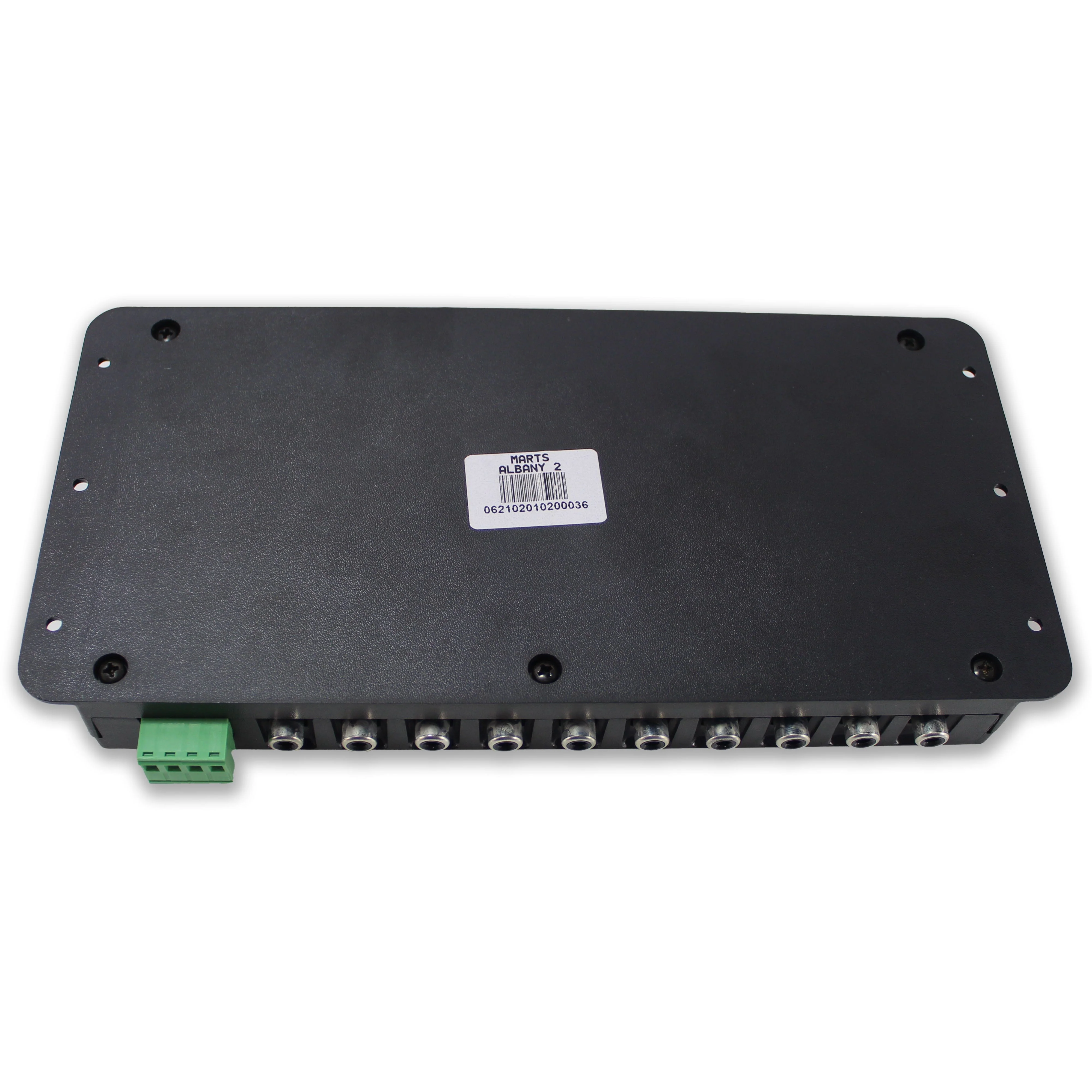

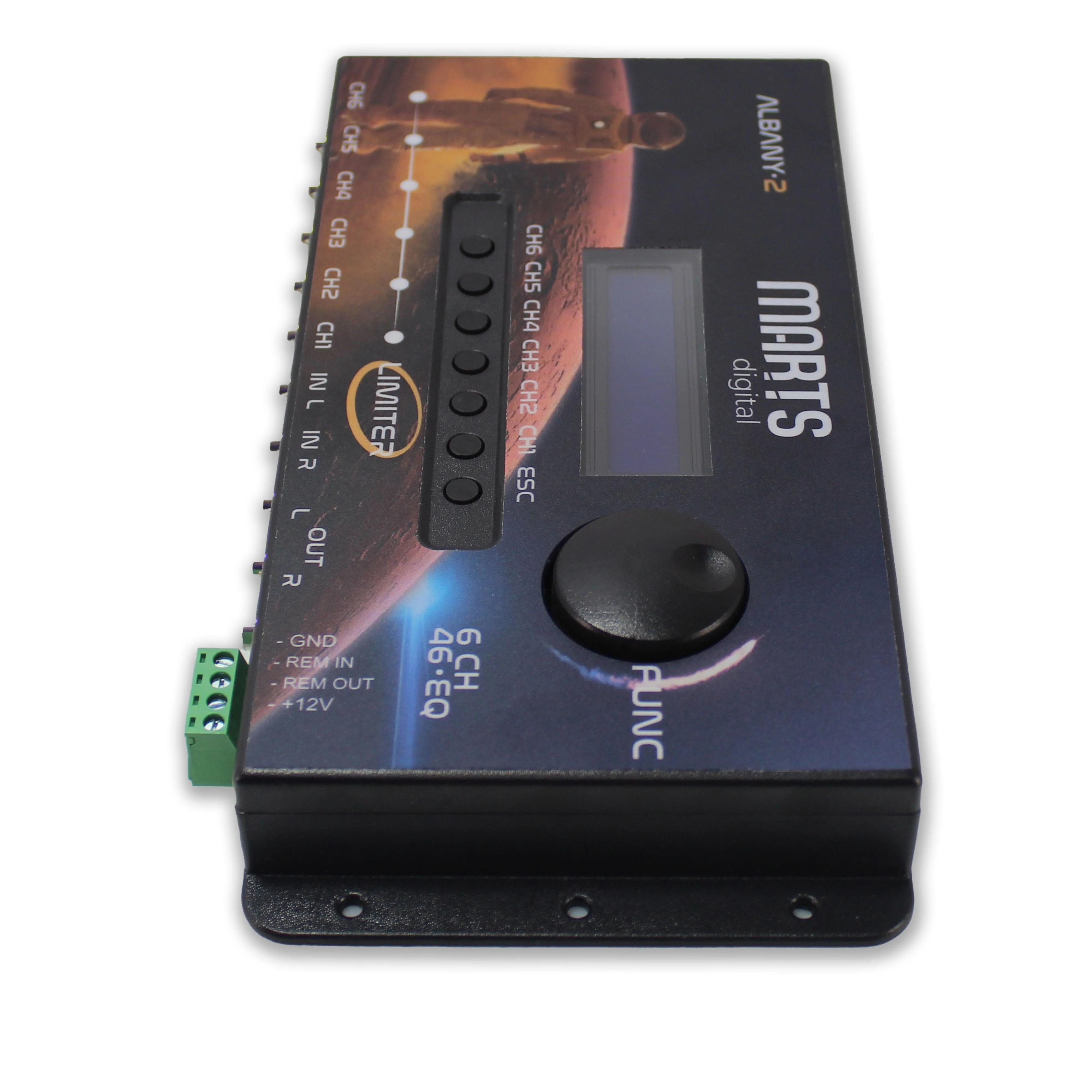

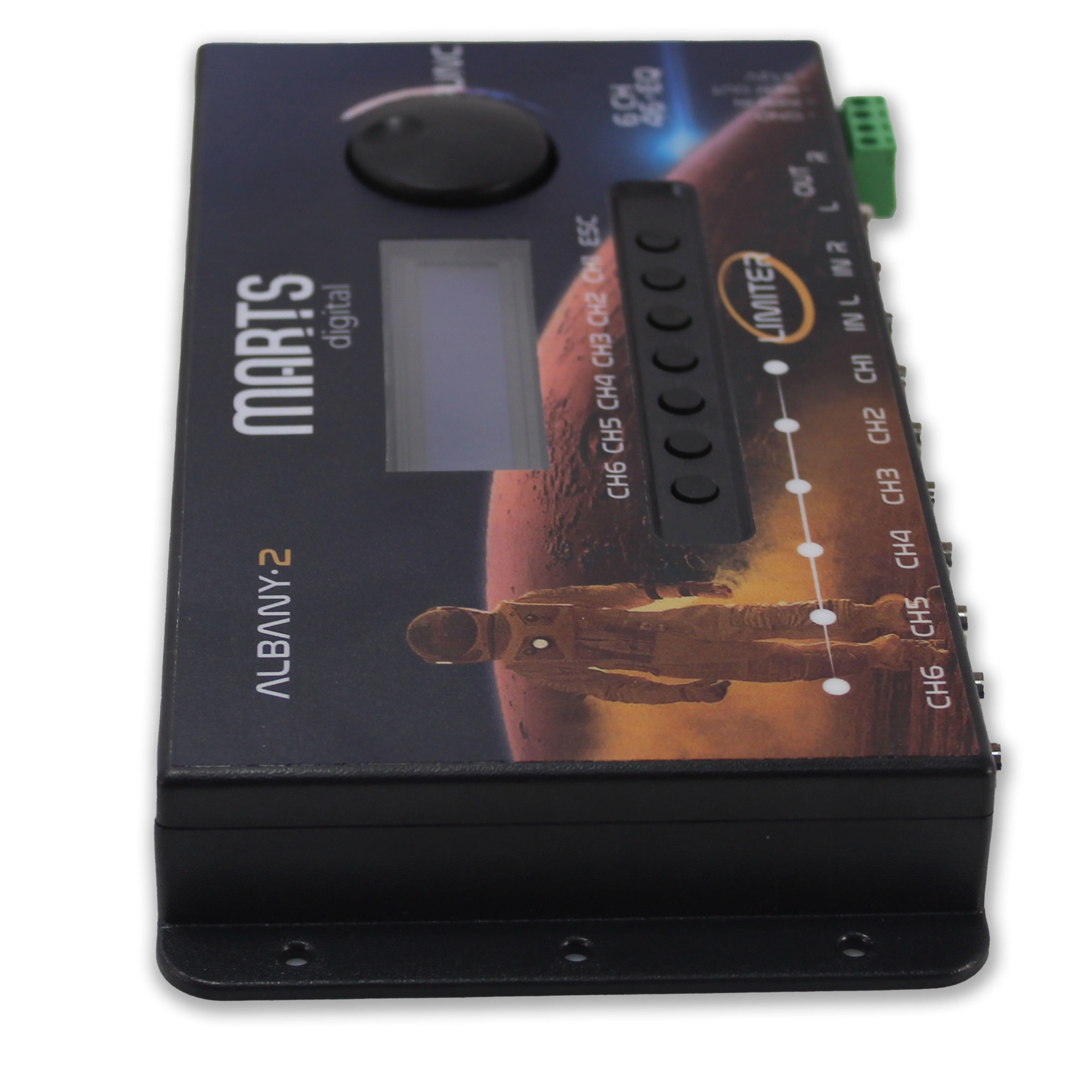

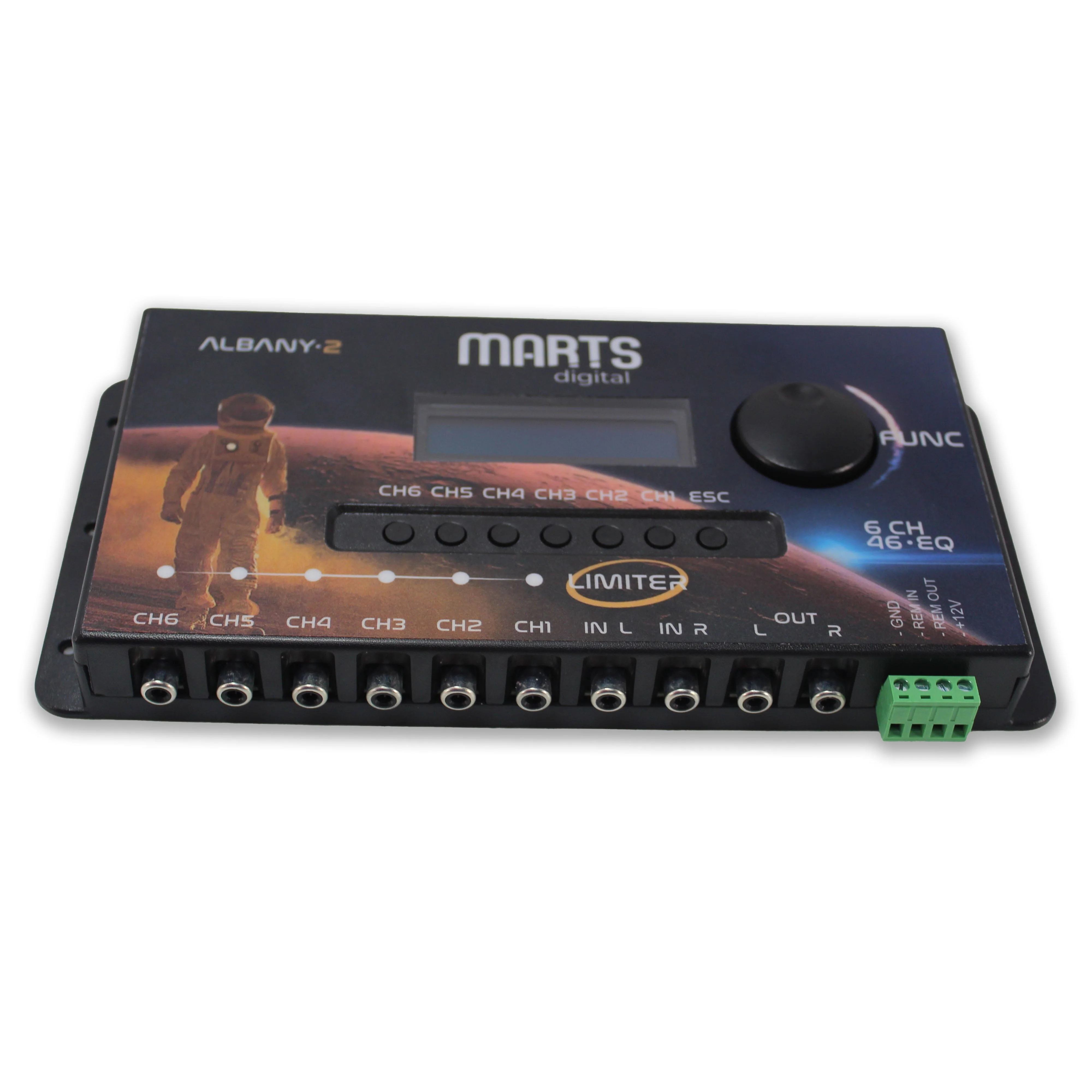

Marts Digital Albany-2 6 Channel DSP With 28 Band Crossover DSP-6

This Listing Includes:

• (1) 6CH DSP W/ 28 Band Crossover

Marts Albany-2 6-Channel Equalizer DSP:

Embark on a journey into the universe of high-performance audio with Marts Digital Signal Processor. The Albany-2 is a 6-channel equalizer with a 28-band car audio system, designed to deliver high-quality sound from Brazil to the world.

Versatile Features for Audio Enthusiasts:

Equipped with 2 RCA inputs and 2 linked RCA outputs, the Albany-2 offers 6 independent outputs and routing channels. Its input equalizer boasts 28 bands between octaves, while the parametric equalizer provides 3 independent bands per channel. Crossover options include Butterworth, Linkwitz-Riley, and Bessel, with attenuations from 6dB/8a.

Precision and Control with Technical Excellence:

Enjoy precision and control with features like independent delay per channel, automatic or manual limiter function, polarity inversion, and adjustable input gain. The unit includes a pink-noise generator, user-controlled password, and comes preconfigured out of the box. Independent output gain per channel and a remote output with 300mA max add to its versatility.

Features for Albany-2:

• 2 RCA Inputs and 2 Linked RCA Outputs


• 6 Independent Outputs


• Routing Channels


• Input Equalizer with 28 bands between octave


• Parametric equalizer with 3 independent bands per channel


• Crossover with filters: Butterworth, Linkwitz-Riley and Bessel, with attenuations from 6dB/8a.


• Independent delay per channel


• Automatic or manual Limiter function with Threshold, Attack, and Decay


• Polarity Inversion


• Input gain adjustable


• Independent Mute per channel


• Pink-Noise Generator


• Independent Output gain per channel


• Remote output with 300mA max

Specifications

Inputs:

• Kind: Unbalanced


• Connection: RCA


• Input Max Level: 4Vpp (1,4Vrms)


• Input impedance: 47k

Outputs:

• Kind: Unbalanced


• Connection: RCA


• Input Max Level: 10Vpp (3,5 Vrms)


• Input impedance: 470

Technical Information:

• Resolution: 24 Bits


• Sample Frequency: 48 Khz


• Latency Frequency: 1.08ms


• Range Frequency: 15Hz ~ 22KHz (-1db)


• THD+N max: 0,01%


• Signal to Noise Ratio: 100dB


• Voltage: 10 ~15V DC


• Consumption: 300mA (5w)


• Fuse: 2A

Dimensions:

• (LxWxH): (10"x5"x1.25")
