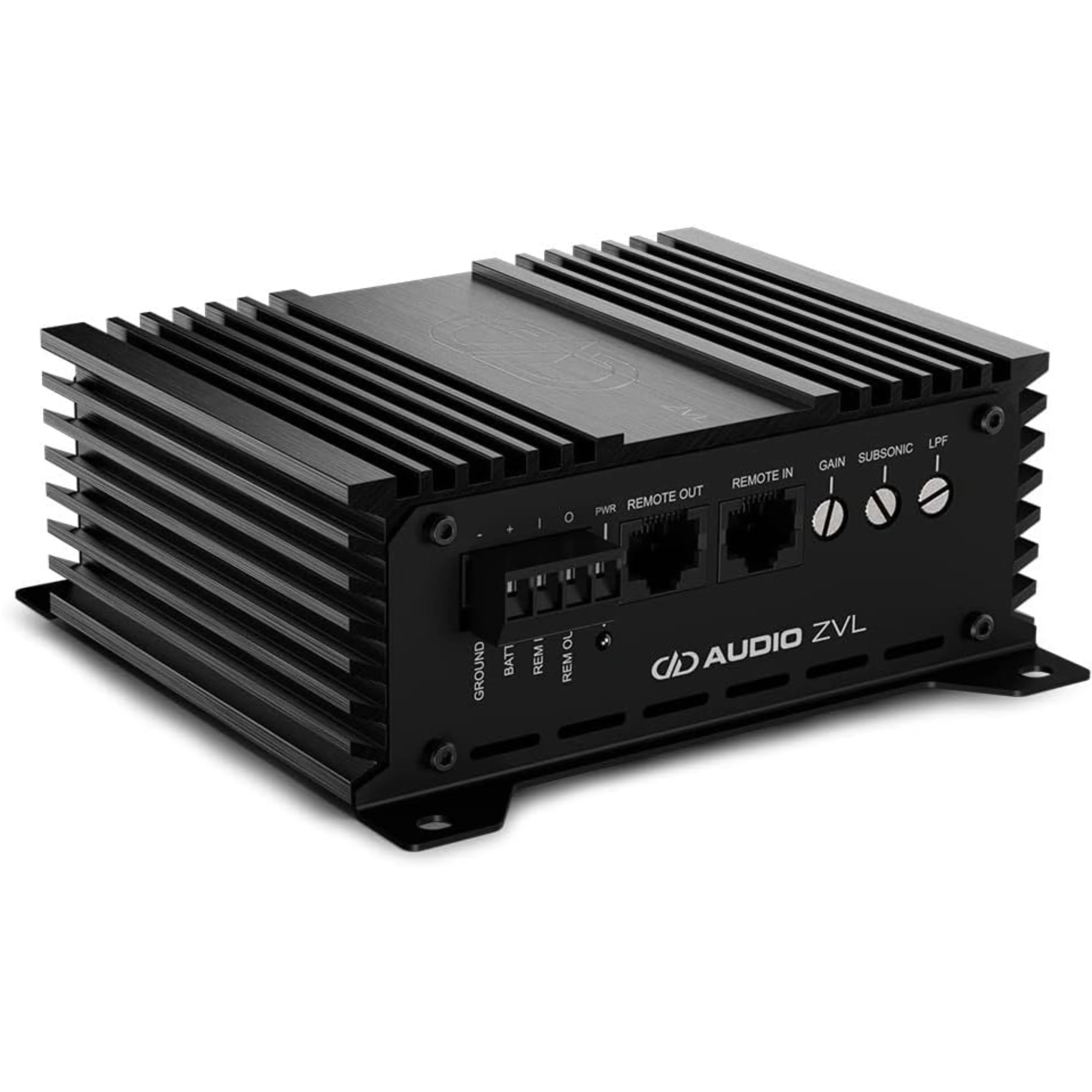

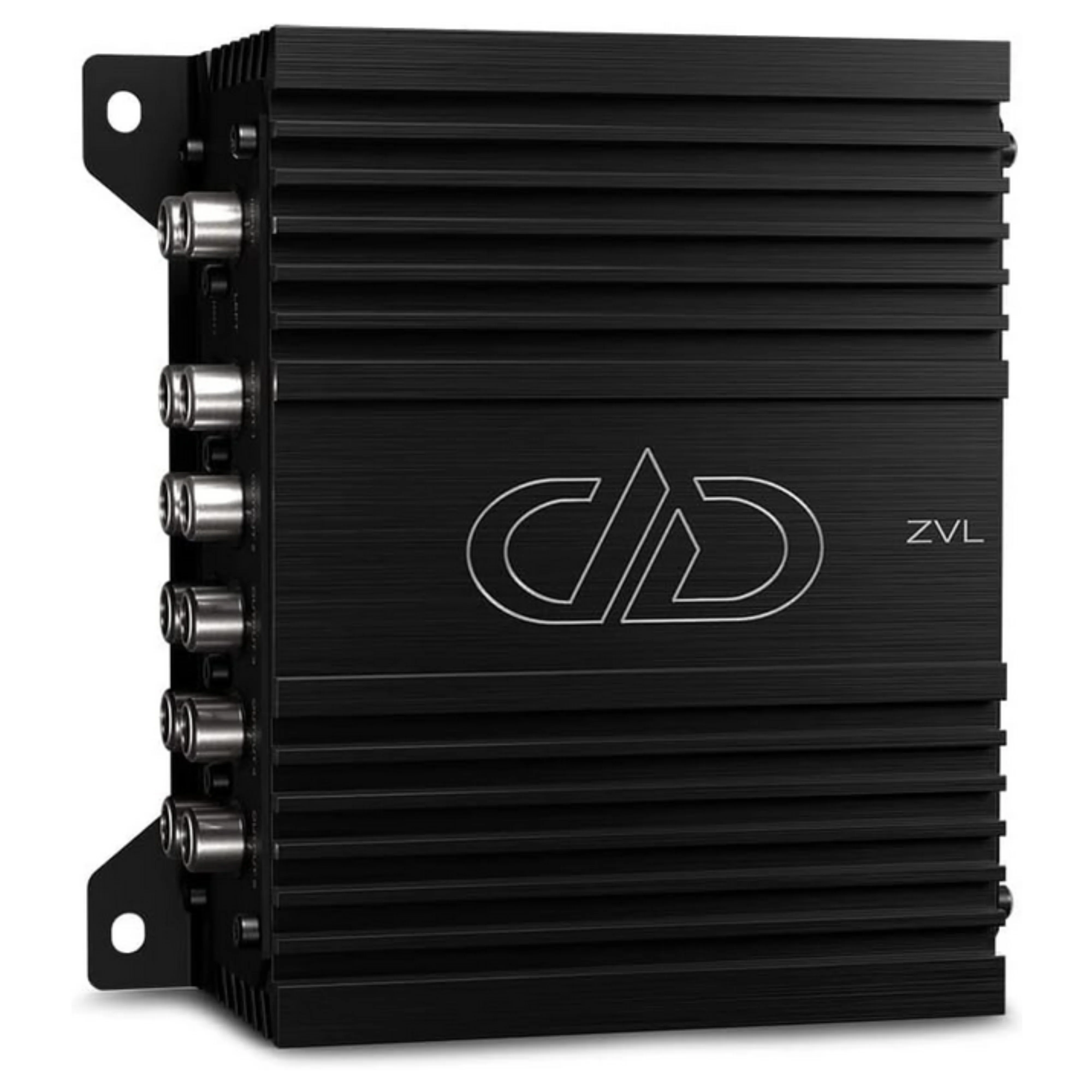

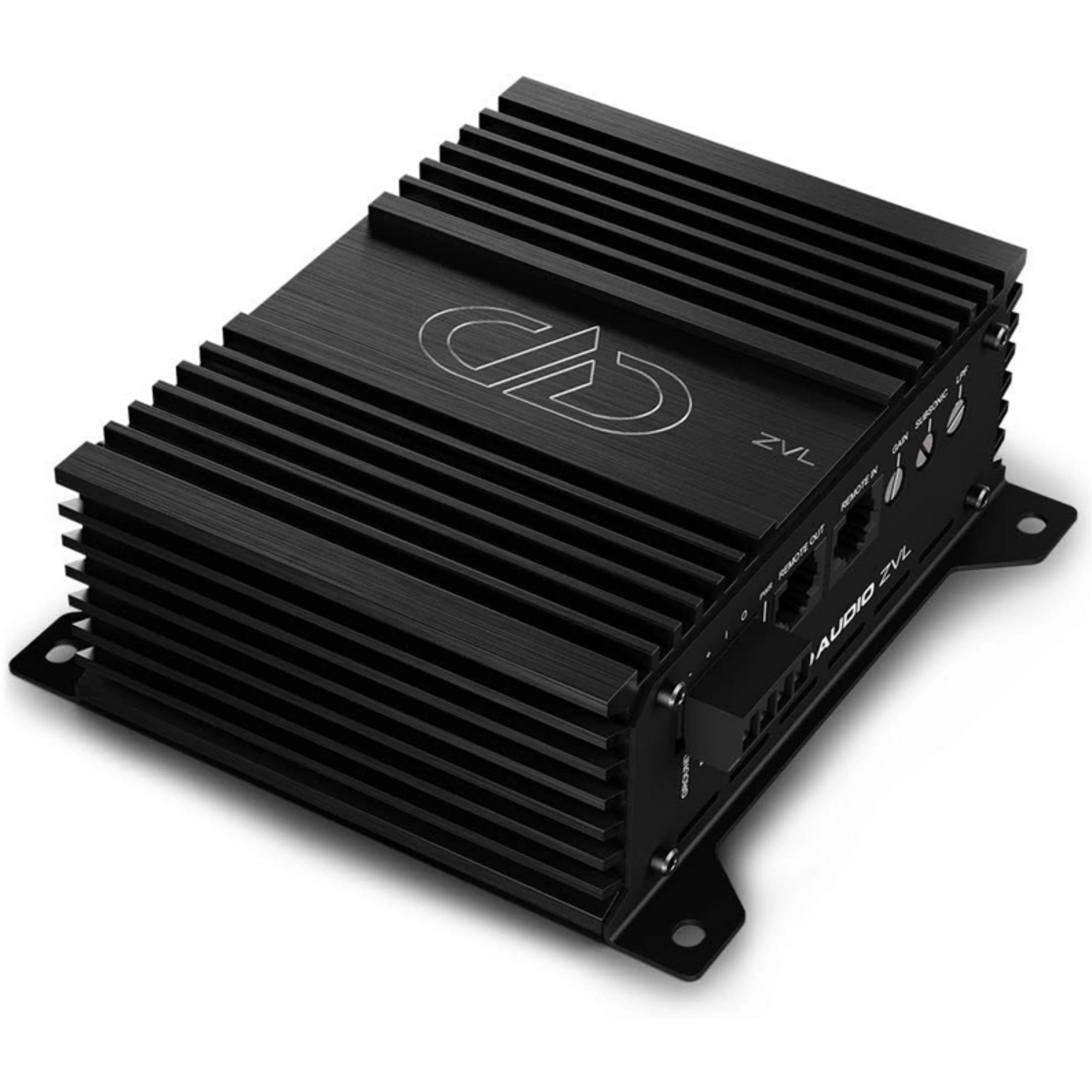

Multi Amp Sync Module for Linking, Strapping, and RCA Distribution - DD-ZVL

This listing includes:

• (1) Multi Amp Sync Module for Linking, Strapping, and RCA Distribution

The ZVL is a multi amplifier syncing module designed to allow a user to  link, strap, and tune the preamps of multiple amplifiers from a single  module for precision control of large mobile audio systems. The ZVL was  designed to work seamlessly with the new M Series amplifier’s ZVL INPUT,  but it is universally compatible and will work with the DD Audio DM Series as well as other brands of Amplifiers.

Features:

• Link and Control Multiple Amplifiers
• Strap and Control Multiple Amplifiers
• Active RCA Signal Distribution
• Compatible with All Amplifiers
• Link Multiple ZVL Units Together

Specifications:

• Operating Voltage: 9 - 16
• Input Channel(s): 2
• Output Channel(s): 10
• Max Current Draw (Amps): 200mA
• RCA Input Voltage Sensitivity: 0.2 - 8
• RCA Output Voltage: 8
• RCA Input Impedance: 20k
• RCA Output Impedance:  ≥ 100
• RCA Input S/N: ≥ 105dBA
• THD: < 0.2%
• Frequency Response (Hz): 10 - 25k
• Sub-Sonic Filter: 10 - 50
• Low-Pass Filter: 20 - 200
• Remote Control: Remote Available, Sold Separately
• Remote Out Current: > 500mA @ 12V

Dimensions (Inches): 4 x 5 x 2

Dimensions (MM): 98 x 125 x 47
