• Line driver with OEM integration capabilities
• High voltage line driver
• Independent gain control
• Speaker level to RCA line level converter
• Low distortion, low noise operation

Rockford Fosgate Universal 2-Channel PEQ Remote and Built-In Line Driver RFPEQU

The RFPEQU universal Punch EQ is a remote control bass knob compatible with any branded aftermarket audio system. Adapter features a high-level signal input with auto turn-on capability and adjustable sensitivity to match any audio source. The 2-channel RCA outputs with built-in line driver allow the signal to connect to any amplifier’s input jacks and overcome any noise. Included cable allows remote bass knob to be conveniently installed near driver/passenger for quick and easy adjustment of bass level.

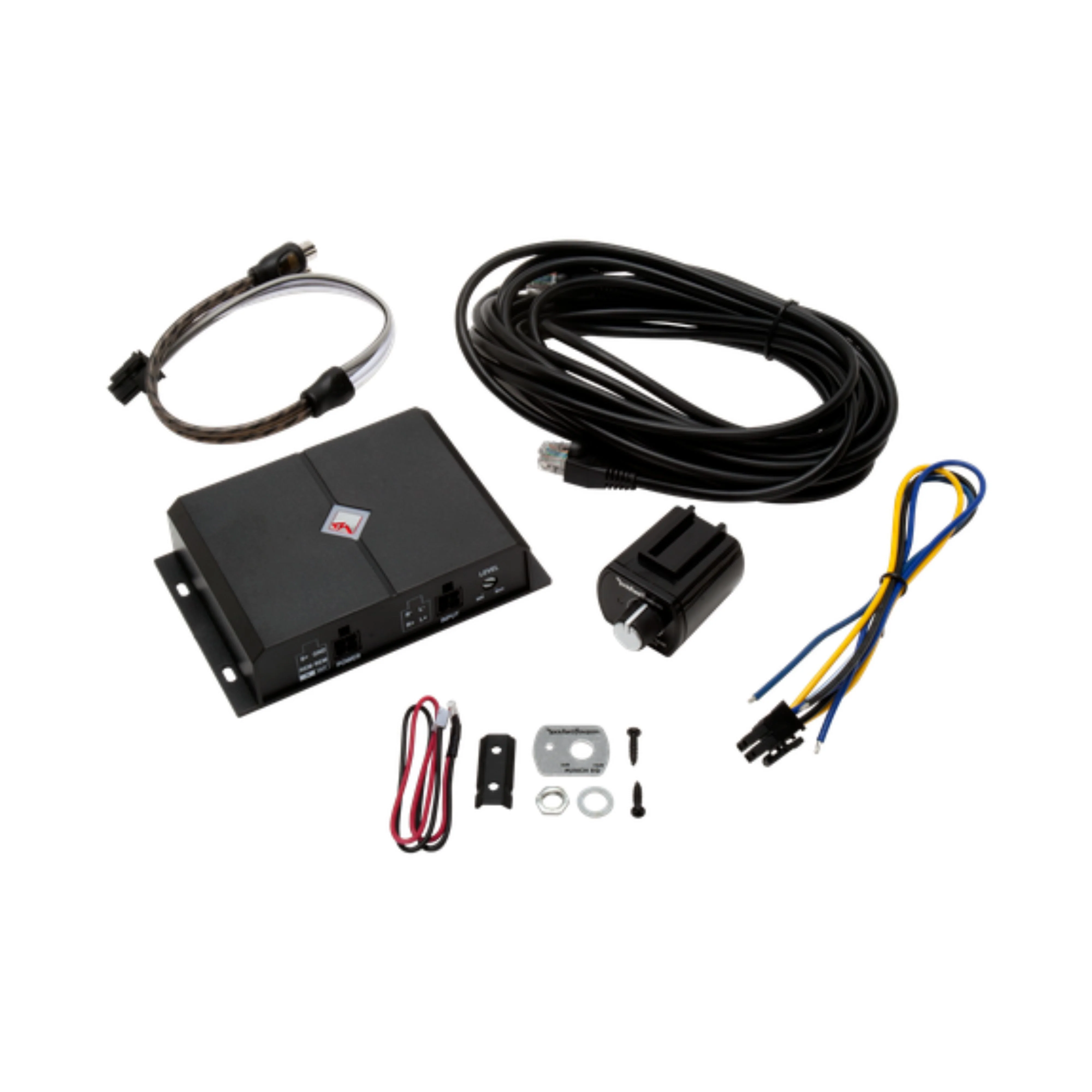

This Listing Includes:

(1) Universal 2-Channel PEQ Remote and Built-In Line Driver

Features:

• Line driver with OEM integration capabilities


• High voltage line driver


• Independent gain control


• Speaker level to RCA line level converter


• Low distortion, low noise operation


• Aux. remote turn-on output


• PEQ remote included


• "Auto-Sense" turn-on with remote out (high level in)


• Discrete surface mount technology

Specifications:

• Processor Type: Analog Processor


• Signal Input: High-Level: 2-channel (left/right)


• THD+N: 0.005%


• EQ Frequency Controls:  Bass: 0dB to +18dB @ 45Hz - Treble 0dB to +12dB @ 12.5kHz


• Input Voltage: 650mV to 10V RMS


• Frequency Response: 20Hz - 20kHz 1dB


• Operating Voltage: 9-16 VDC @ 200 mA


• Signal Output: Low-Level: 2 RCA (left/right)


• Output Voltage: 10V RMS


• Output Impedance: 500 Ohms


• Input Impedance: 20k Ohms


• Shipping Weight: 1.4 Lbs


• Dimensions: 1.1" x 3.15" x 4.72"


• Mounting: Behind Dash (install as close to source unit as possible)
