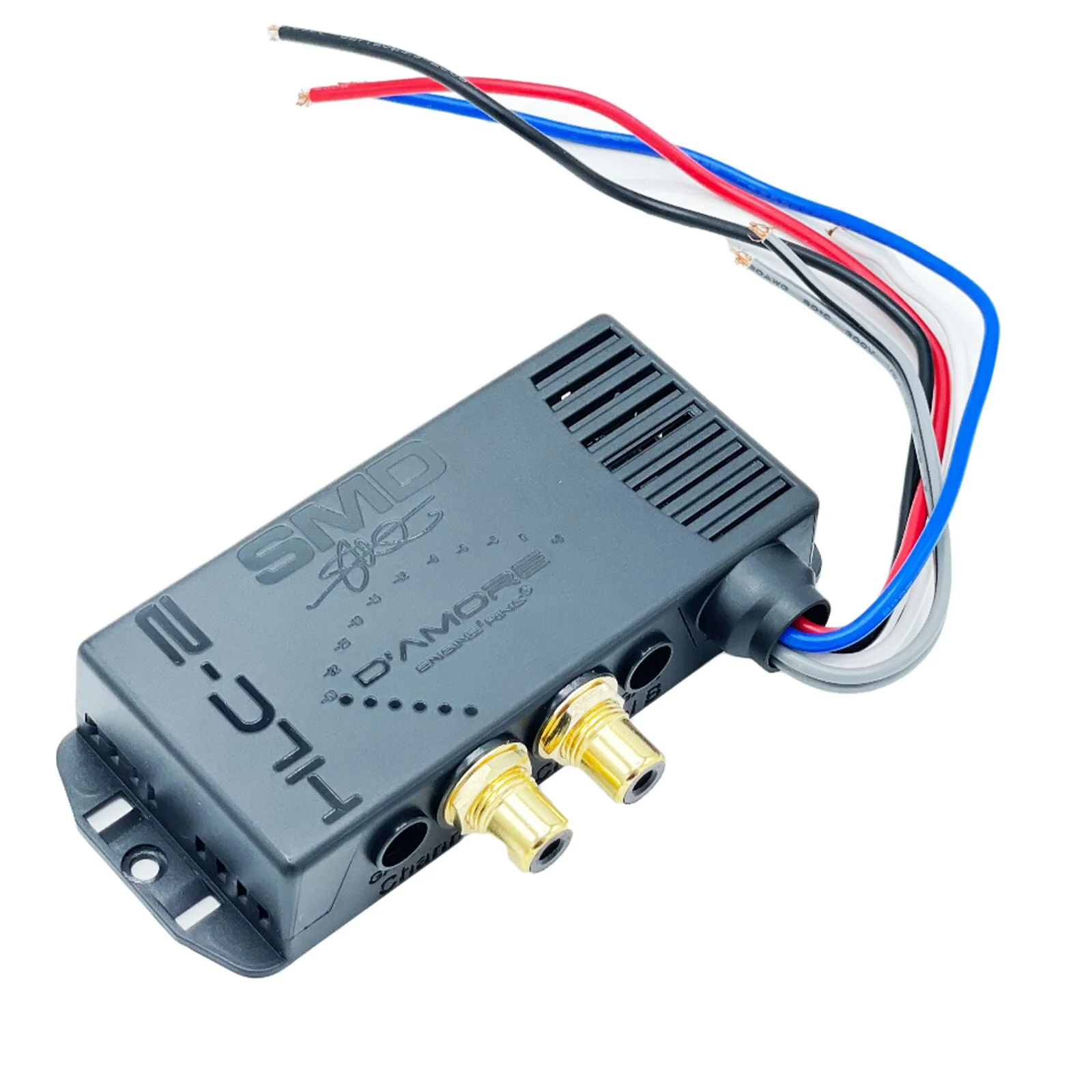

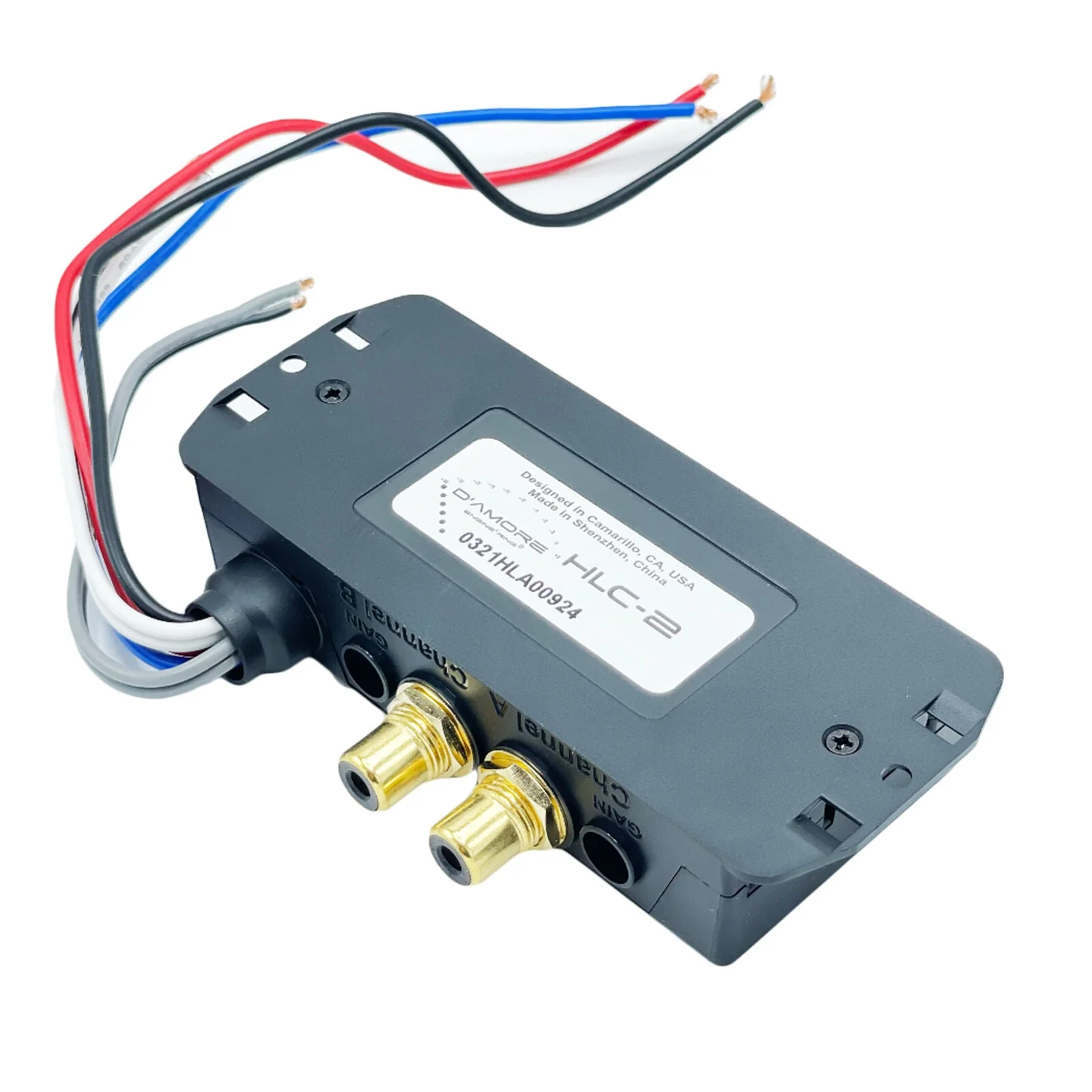

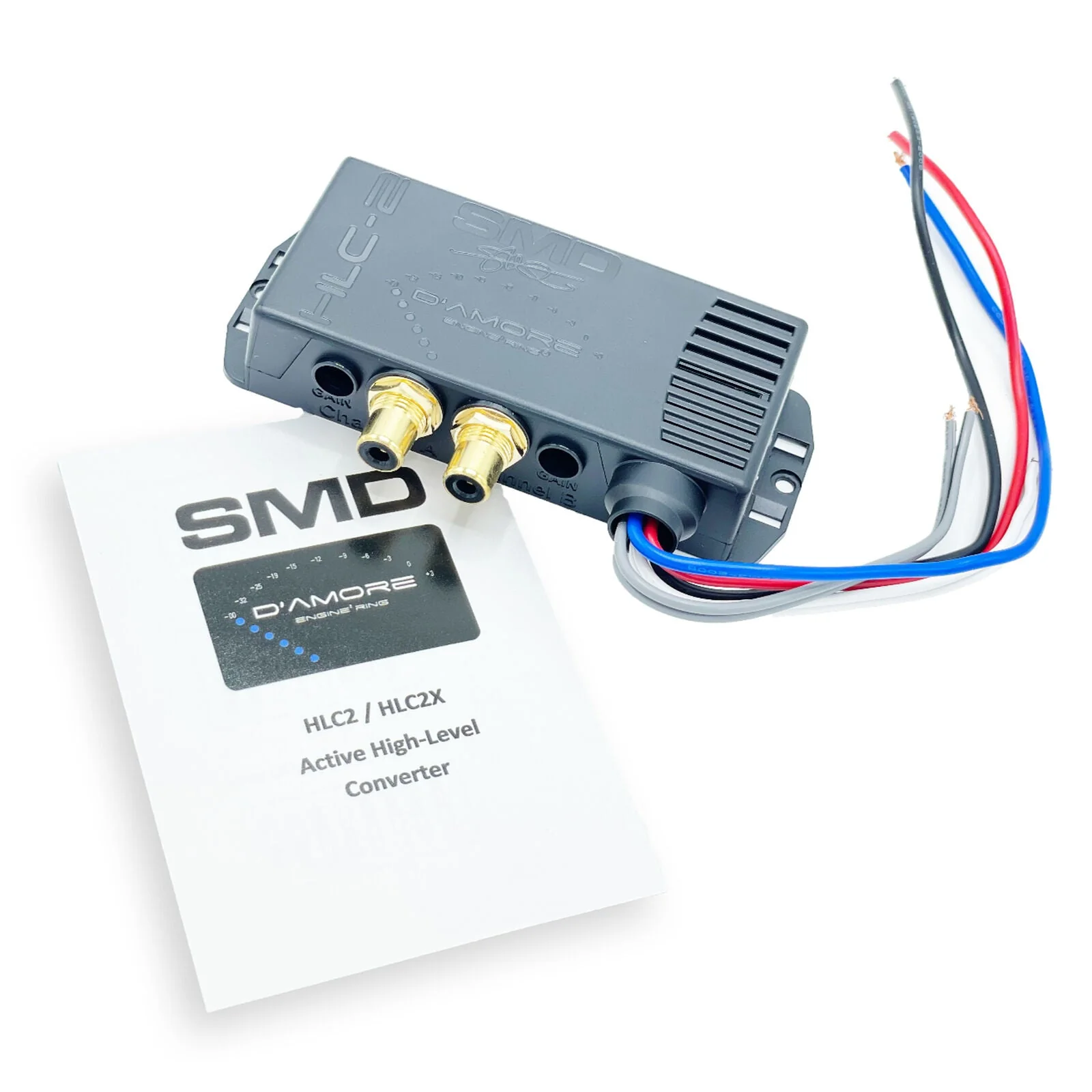

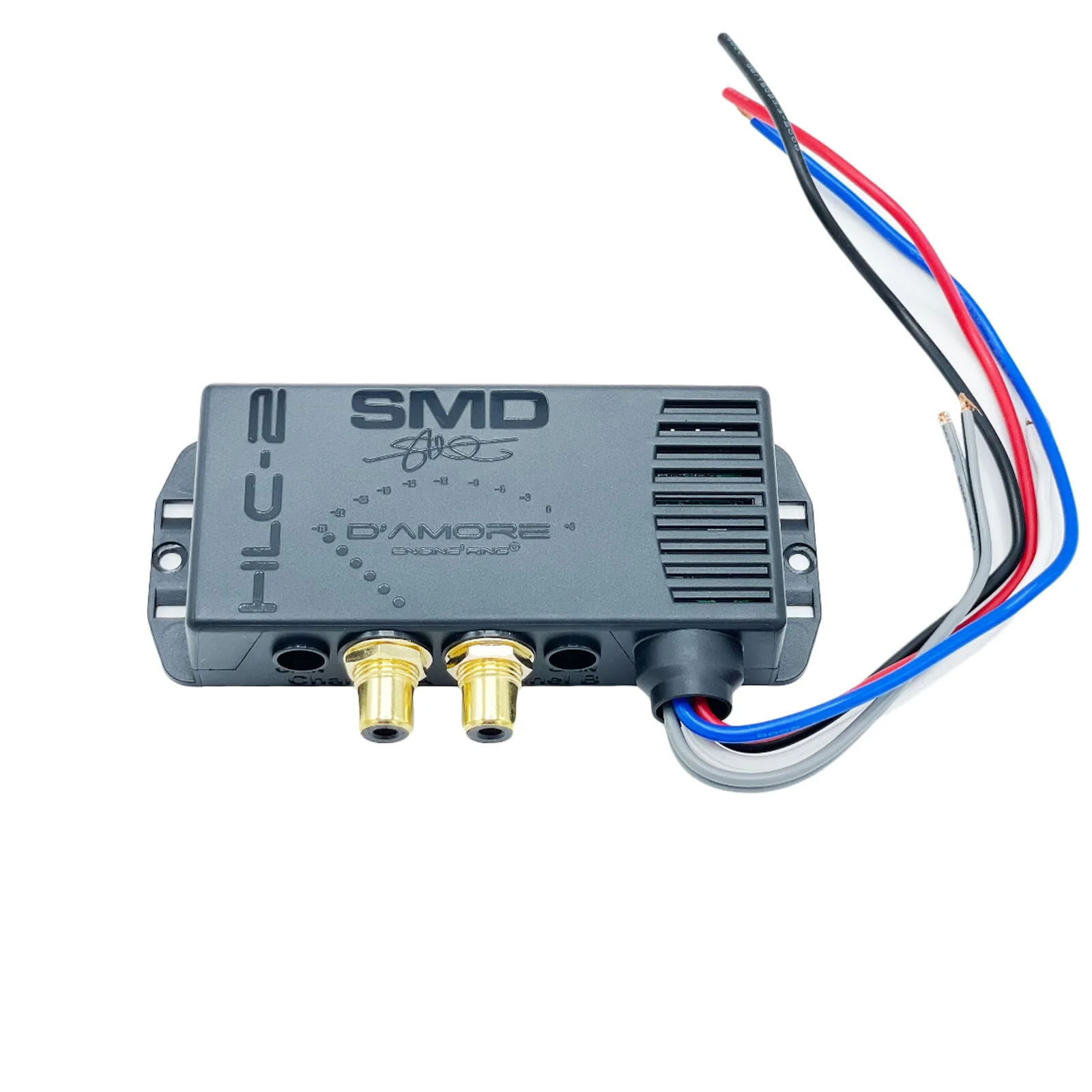

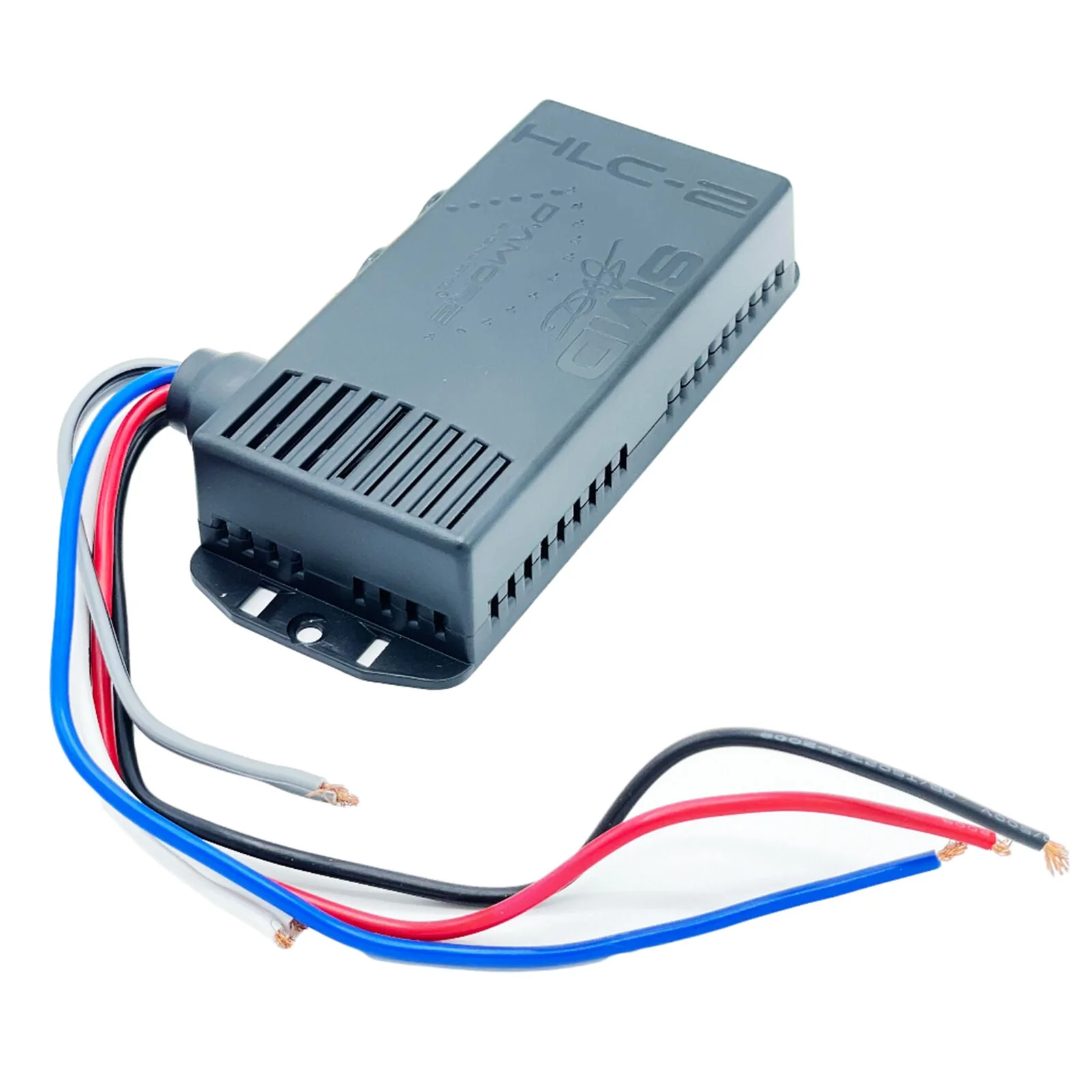

Steve Meade Designs Active High Level Converter HLC-2

This Listing Includes:

• (1) SMD Active High Level Converter HLC-2

The Steve Meade Designs HLC-2 is an audiophile quality stereo active high level converter useful for connecting aftermarket audio amplifiers to OEM audio systems that do not have RCA (low level) inputs. The HLC-2 includes a pair of independent gain controls for left and right channels. The output is Class A/B , the filters are 100% analog, and it has a military grade micro-power high speed bi-polar boost converter power supply. This means it will deliver a super clean, distortion-free signal over the entire audio spectrum with no low frequency roll-off, 10 Volts RMS output, all while drawing just 0.08 Amps of current. It draws so little current that it could run from a 9V battery if you wanted to.

Features

• Class A/B Output


• 2-channel active high-level converter


• Balanced 2 wire high-level inputs and unbalanced RCA outputs


• Independent Left/Right gain controls


• 10V RMS output


• Micro-power high speed mil spec power supply


• Ultra-low distortion over entire audio spectrum


• Blue LED power good indicator

Specifications

• Operating voltage range for power supply: 6-18 VDC


• Operating voltage range for remote turn on: 6-18 VDC


• Frequency Response: 10Hz-40,000 Hz +/- 0.3dB


• Maximum input voltage: 40V RMS BTL


• Maximum output voltage: Greater than 10V RMS


• Signal to Noise: greater than 115dBA


• Distortion THD+N: 0.003%


• Current Draw @12.6 V: 80mA


• Output Impedance: 100 ohms


• Output Voltage RCAs: 10V RMS

• Dimensions: 4.10" x 2.19" x .80"


• Weight: 2.4 oz.
